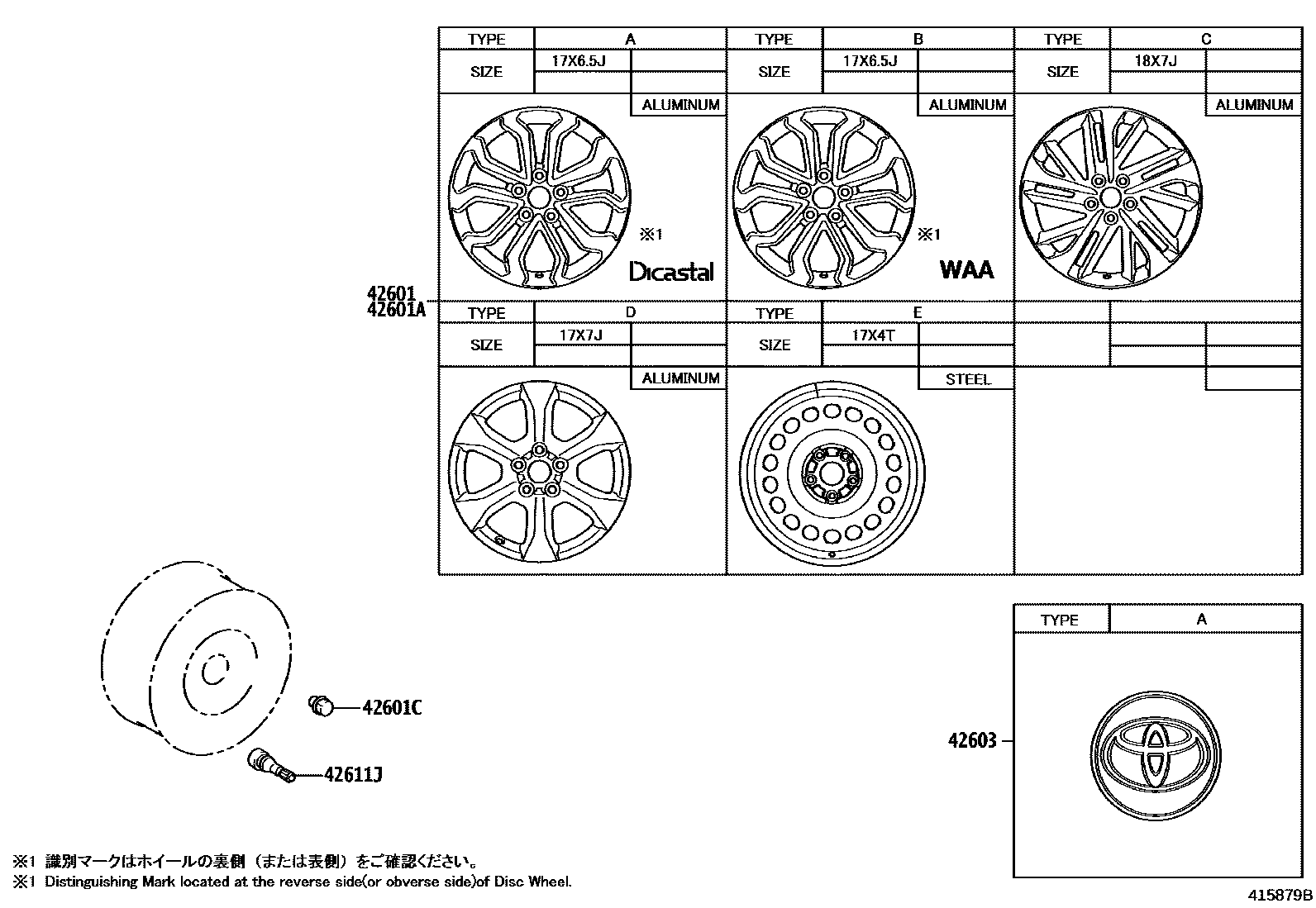

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-0A260iMXGA10,MXGH10..J,N202201-202304

17X6.5J,#,TYPE A:REFER ILLUST.

main42611-0A270iMXGA10,MXGH10..E,G202201-202304

17X6.5J,#,TYPE A:REFER ILLUST.

main42611-0A280iMXGA10..E,G202201-202304

17X6.5J,#,TYPE B:REFER ILLUST.

main42611-0A290iMXGA10,MXGH10..A202201-202304

18X7J,#,TYPE C:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main4261B-0R020iMXGA10,MXGH10202407

17X4T,TYPE E:REFER ILLUST.

main4261B-0R030iMXGA10202201-202304

17X4T,TYPE D:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-C1001iMXGA10202201-202304

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-0R020iMXGA10202201-202304

*ALU,TYPE A:REFER ILLUST.

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iMXGA10202201-202304

(J)

main90942-C5004iMXGA10202201-202211

(L)

main90942-C5005iMXGA10202212-202304

(L)

5 parts on this diagram · 3 diagrams in section
