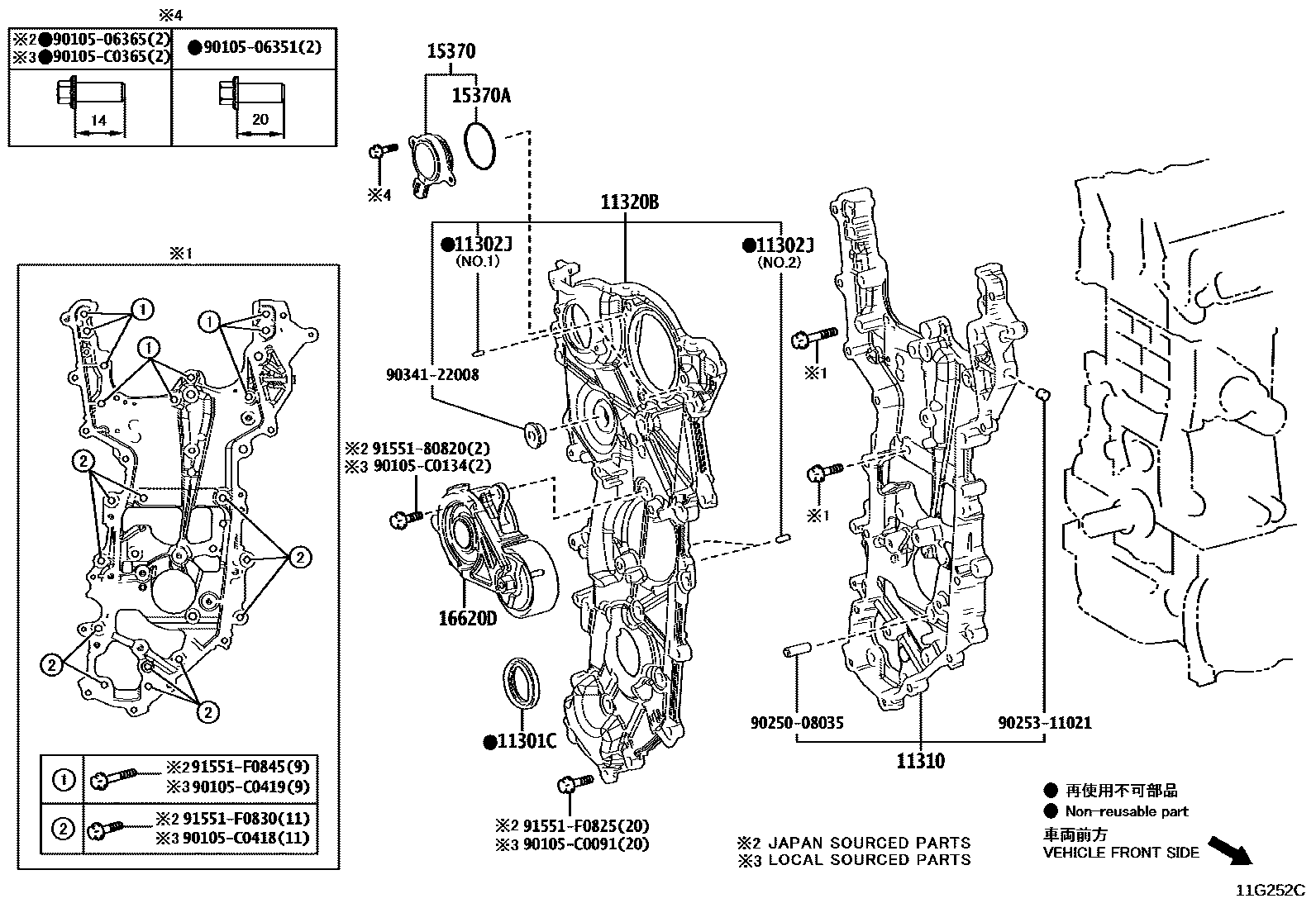

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-40044iM20..MXGA10202201-202304

*132

main90311-C0054iM20..MXGA10202201-202304

*668,*669

11302JPIN, STRAIGHT(FOR TIMING CHAIN COVER)

main90250-04097iM20..MXGA10202201-202304

*132,NO.1:REFER ILL.

main90250-06003iM20..MXGA10202304

*132,NO.2:REFER ILL.

main90250-06003iM20..MXGA10202201-202304

*668,*669 NO.2,*132,NO.2:REFER ILL.

main90250-06003iM20..MXGA10202304

*668,*669 NO.2

main90250-C0009iM20..MXGA10,MXGH10202201-202304

*668,*669 NO.1

11310COVER ASSY, TIMING CHAIN

main11310-24010iM20..MXGA10202201-202304

*132

main11310-F2040iM20..MXGA10202201-202304

*668,*669

11320BCOVER ASSY, TIMING CHAIN, NO.2

main11320-24010iM20..MXGA10202201-202304

*132

main11320-F2040iM20..MXGA10202201-202304

*668,*669

15370SOLENOID ASSY, CAM TIMING OIL CONTROL

main15370-25020iM20..MXGA10202304

*132

main15370-25020iM20..MXGA10202201-202304

(J),*668,*669,*132

main15370-25020iM20..MXGA10202304

(J),*668,*669

main15370-F2020iM20..MXGA10,MXGH10202201-202304

(L),*668,*669

15370ARING, O(FOR CAM TIMING OIL CONTROL SOLENOID)

main90301-44006iM20..MXGA10202304

*132

main90301-44006iM20..MXGA10202304

*668,*669

main90301-44006iM20..MXGA10202201-202304

*132,*668,*669

16620DTENSIONER ASSY, V-RIBBED BELT

main16620-24010iM20..MXGA10202201-202210

*132

main16620-24030iM20..MXGA10202210-202304

*132

main16620-F2040iM20..MXGA10202201-202206

*668,*669

main16620-F2070iM20..MXGA10202207-202304

*668,*669

9010506351

main90105-06351

9010506365

main90105-06365

90105C0091

main90105-C0091

90105C0134

main90105-C0134

90105C0365

main90105-C0365

90105C0418

main90105-C0418

90105C0419

main90105-C0419

9025008035

main90250-08035

9025311021

main90253-11021

9034122008

main90341-22008

9155180820

main91551-80820

91551F0825

main91551-F0825

91551F0830

main91551-F0830

91551F0845

main91551-F0845

21 parts on this diagram · 2 diagrams in section
