SHORT BLOCK ASSEMBLY

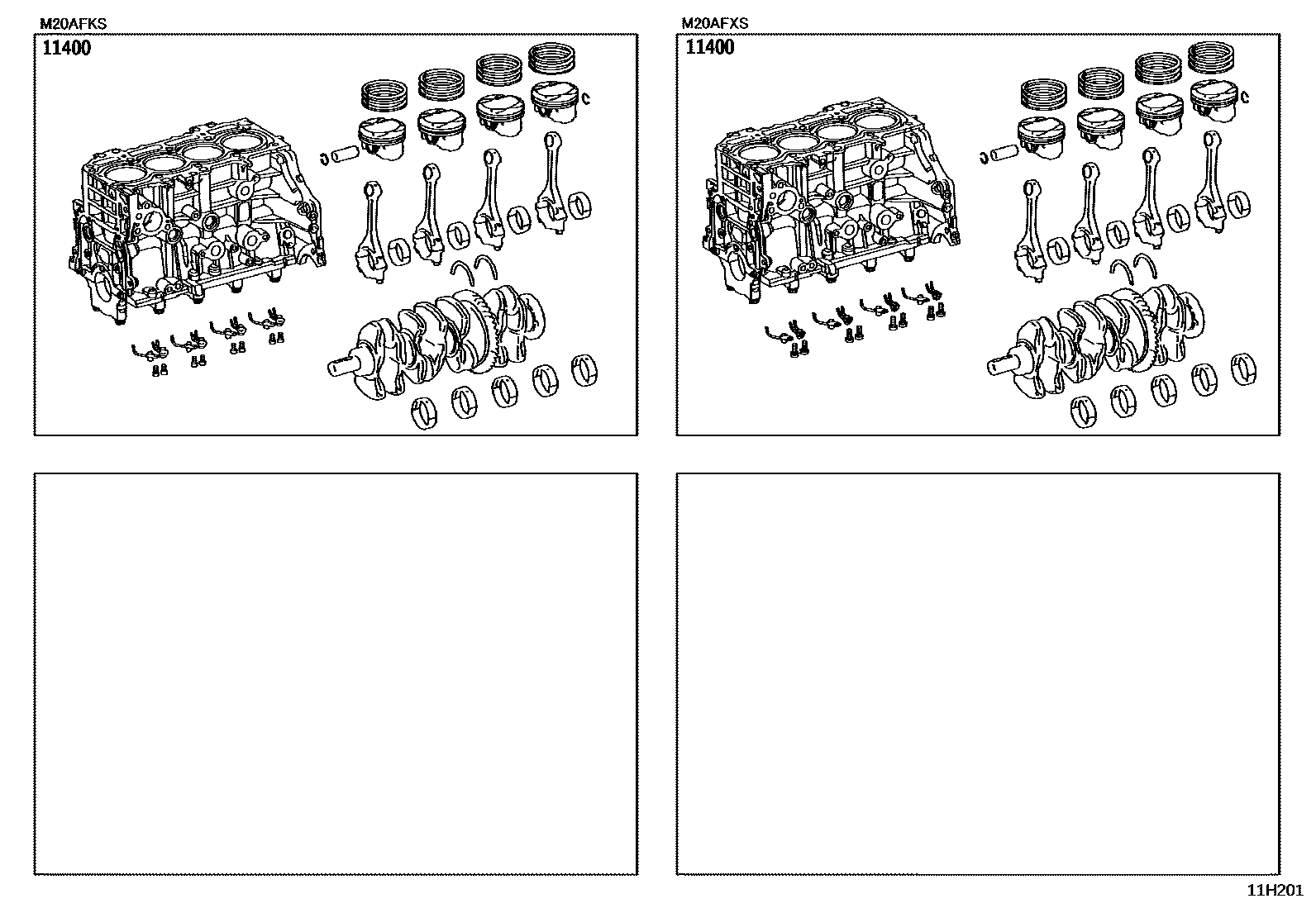

Parts diagram

11400BLOCK ASSY, SHORT

main11400-24030i202201-202304

*632

main11400-F2130i202201-202304

*668,*669

main11400-F2210i202307

*668,*669

1 parts on this diagram · 1 diagram in section
