HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1HEATER CONTROL PANEL 0002 1AIR DUCT 0003 1SENSOR 0004 1SENSOR

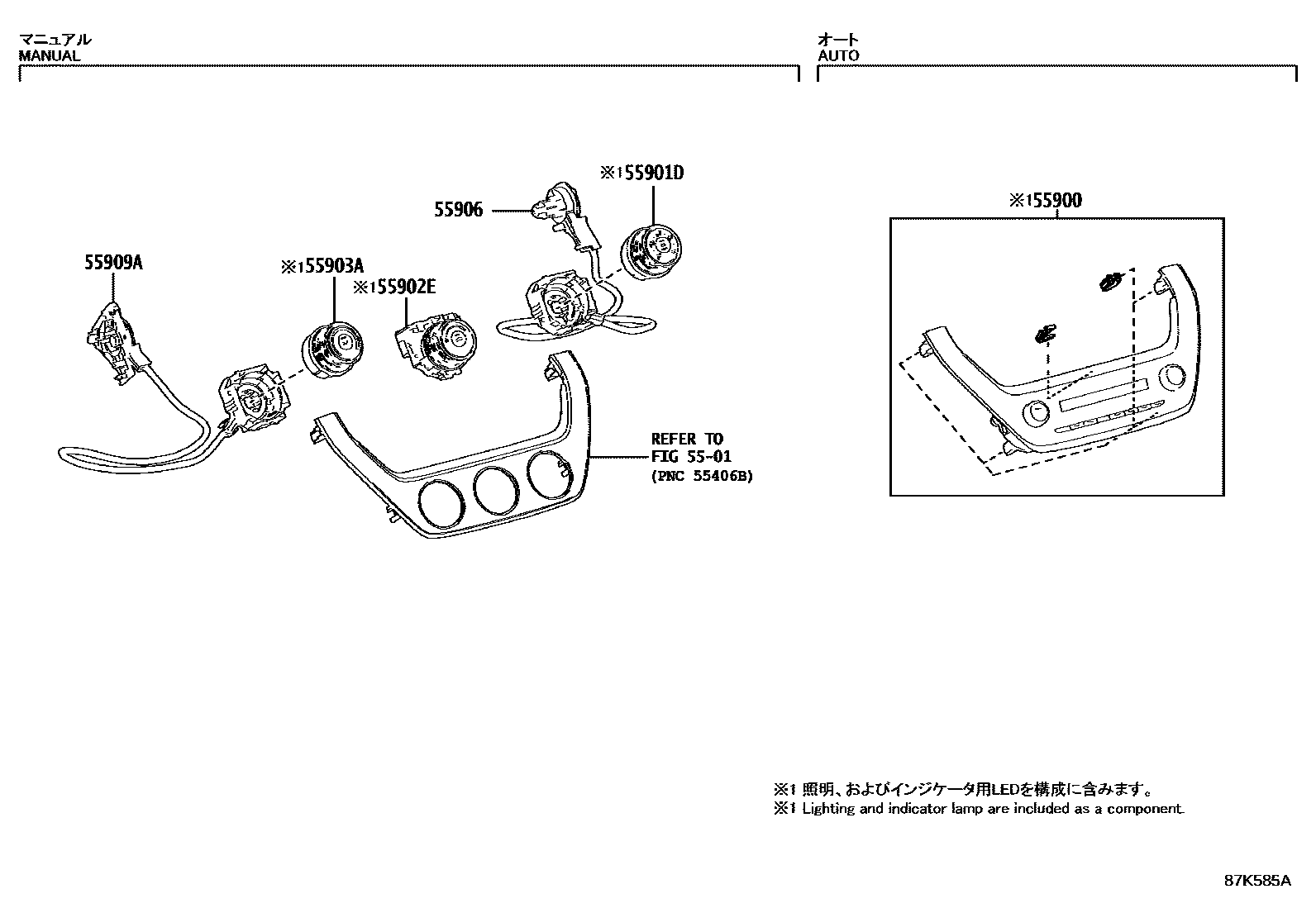

5501

55900CONTROL ASSY, AIR CONDITIONER

main55900-02N60-B0iMXGA10..G202304

SILVER,TRIM2#,4#

main55900-0A220-B0iMXGA10..J202201-202304

ENRTY PLUS PACKAGE,SILVER,TRIM2#,4#

main55900-0A230-B0iMXGA10..G202201-202304

SILVER,TRIM2#,4#

main55900-0A300-B0iMXGA10..E202201-202304

SILVER,TRIM2#,4#

main55900-0A310-B0supersedes 55900-0A320-B0iMXGH10..J202307

ENRTY PLUS PACKAGE,SILVER,TRIM2#,4#

main55900-0A400-B0iMXGA10..J202304

ENRTY PLUS PACKAGE,SILVER,TRIM2#,4#

main55900-0A410-B0iMXGA10..E;MXGH10..E,G202304

SILVER,TRIM2#,4#

55901DCONTROL SUB-ASSY, HEATER, NO.1

55902ECONTROL SUB-ASSY, HEATER, NO.2

55903ACONTROL SUB-ASSY, HEATER, NO.3

55906CABLE SUB-ASSY, HEATER CONTROL

main55906-26091

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

7 parts on this diagram · 4 diagrams in section
