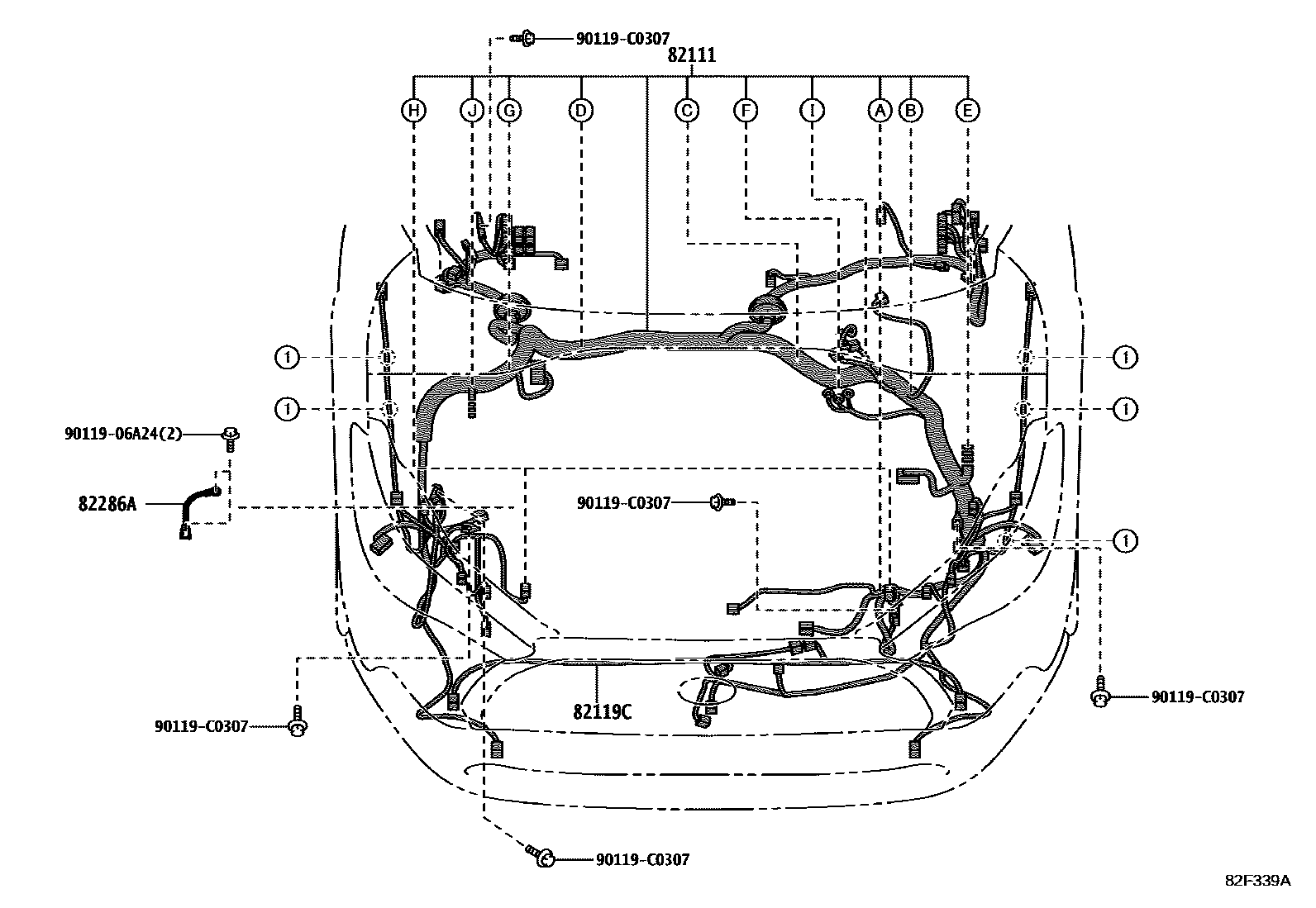

82111WIRE, ENGINE ROOM MAIN

main82111-0A590iMXGA10..N202201-202304

main82111-0AA30iMXGA10..J202201-202304

main82111-0AA40iMXGA10..E202201-202304

main82111-0AA50iMXGA10..G202201-202304

main82111-0AJ40iMXGA10..J202304

main82111-0AJ60iMXGA10..N202304-202405

main82111-0AJ61iMXGA10..N202405

main82111-0AJ80iMXGA10..E,G202304

main82111-0AJ90iMXGH10..J202307

main82111-0AK00iMXGH10..N202307-202405

main82111-0AK01iMXGH10..N202405

main82111-0AK20iMXGH10..E,G202307

82119CWIRE, ENGINE ROOM, NO.5

main82119-0A080iMXGA10..E202201-202304

main82119-0A080iMXGA10,MXGH10..E,G202304

CARE CHINA

82286AWIRE, EARTH, NO.2

main82286-F4060iMXGA10202201-202304

main82286-F4090iMXGH10202307

9011906A24

main90119-06A24

90119C0307

main90119-C0307

5 parts on this diagram · 20 diagrams in section
