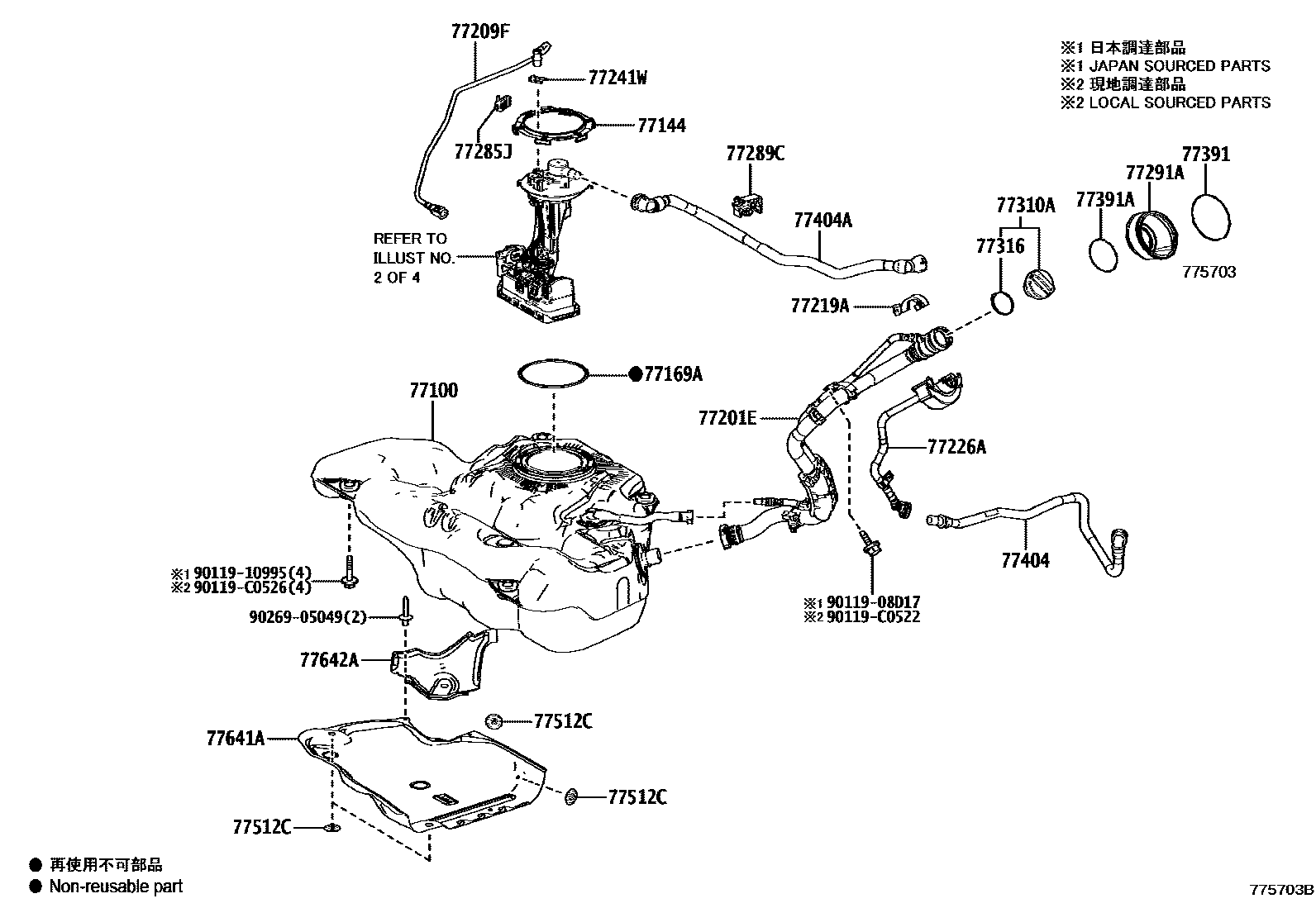

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL PUMP 0004 1FUEL PUMP 0005 1FUEL TUBE 0006 1FUEL TUBE 0007 1FUEL LID OPENER 0008 1FUEL LID OPENER

77100TANK ASSY, FUEL

main77001-0A140iMXGA10202201-202304

main77001-0A170iMXGH10202307

main77001-0A280iMXGA10202304

77144RETAINER, FUEL PUMP GAUGE

main77144-0E050iMXGH10202307

main77144-30030iMXGA10202201-202304

77169AGASKET, FUEL SUCTION TUBE SET

main77169-02130iMXGA10202308

(L)

main77169-0A020iMXGH10202307

main77169-47030iMXGA10202201-202308

main77169-47030iMXGA10202308

(J)

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-0A060iMXGA10202201-202304

main77201-0A140iMXGH10202307

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-0A140iMXGA10202201-202304

main77209-0A240iMXGH10202307

77219ACOVER, FUEL TANK FILLER PIPE

main77219-0D150iMXGA10202201-202304

77226ATUBE, FUEL TANK BREATHER, NO.6

main77226-0A070iMXGA10202201-202304

77241WCLIP, TUBE JOINT

main77241-33011iMXGA10202201-202304

77285JCLAMP, FUEL TUBE, NO.1

main77285-0A130iMXGH10202307

main77285-16130iMXGA10202201-202304

77289CCLAMP, FUEL TUBE, NO.4

main77285-10050iMXGH10202401

main77285-30350iMXGA10202201-202304

main77285-42240iMXGH10202307-202312

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-0A050iMXGA10202201-202304

77310ACAP ASSY, FUEL TANK

main77300-06110iMXGH10202307

main77300-0R010iMXGA10202201-202304

77316GASKET, FUEL TANK CAP

main77316-0F020iMXGA10202201-202304

main77316-75020iMXGH10202307

77391RING, FUEL INLET BOX

main77391-0R050iMXGA10202201-202304

(L)

main77391-42010iMXGA10,MXGH10202201-202304

(J)

77391ARING, FUEL INLET BOX

main77391-0R030iMXGA10202201-202304

(L)

main77391-12020iMXGA10,MXGH10202201-202304

(J)

77404HOSE SUB-ASSY, FUEL TANK VENT

main77404-0A120iMXGA10202201-202304

main77404-0A250iMXGH10202307

77404AHOSE SUB-ASSY, FUEL TANK VENT

main77404-0A100iMXGA10202201-202304

main77404-0A240iMXGH10202307

77512CBRACKET, FUEL TANK

main77512-07010iMXGA10202201-202304

77641APROTECTOR, FUEL TANK, NO.1

main77641-0A030iMXGA10202201-202304

77642APROTECTOR, FUEL TANK, NO.2

main77642-0A030iMXGA10202201-202304

9011908D17

main90119-08D17

9011910995

main90119-10995

90119C0522

main90119-C0522

90119C0526

main90119-C0526

9026905049

main90269-05049
