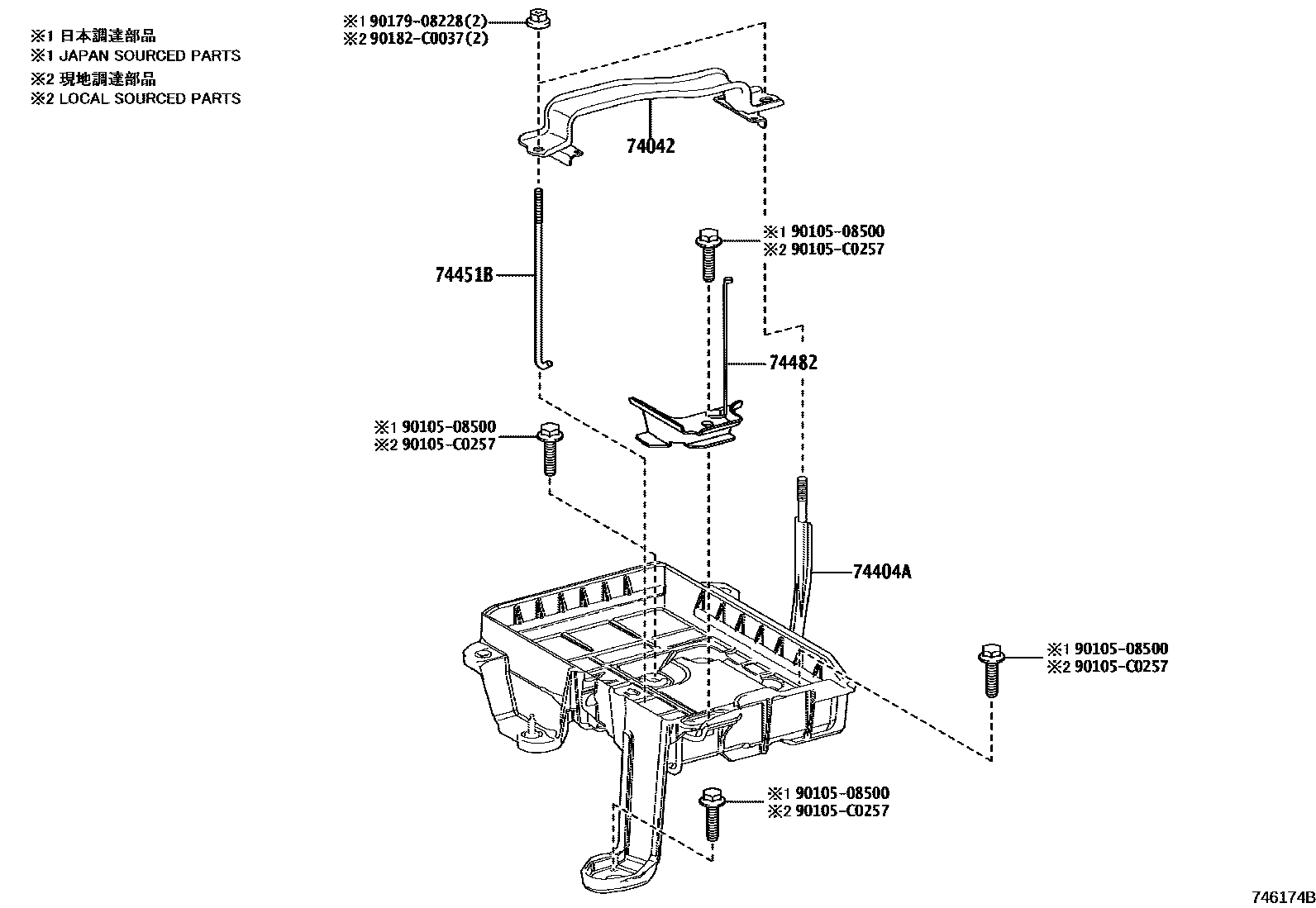

BATTERY CARRIER

0001 1 0002 1

74042BRACKET SUB-ASSY, BATTERY

main74401-0A010iMXGA10202201-202304

74404ACLAMP SUB-ASSY, BATTERY

main74404-0A030iMXGA10202201-202304

74451BBOLT, BATTERY CLAMP

main74451-0A030iMXGA10202201-202304

74482CLAMP, BATTERY, NO.2

main74405-02090iMXGA10202201-202304

9010508500

main90105-08500

90105C0257

main90105-C0257

9017908228

main90179-08228

90182C0037

main90182-C0037

8 parts on this diagram · 2 diagrams in section
