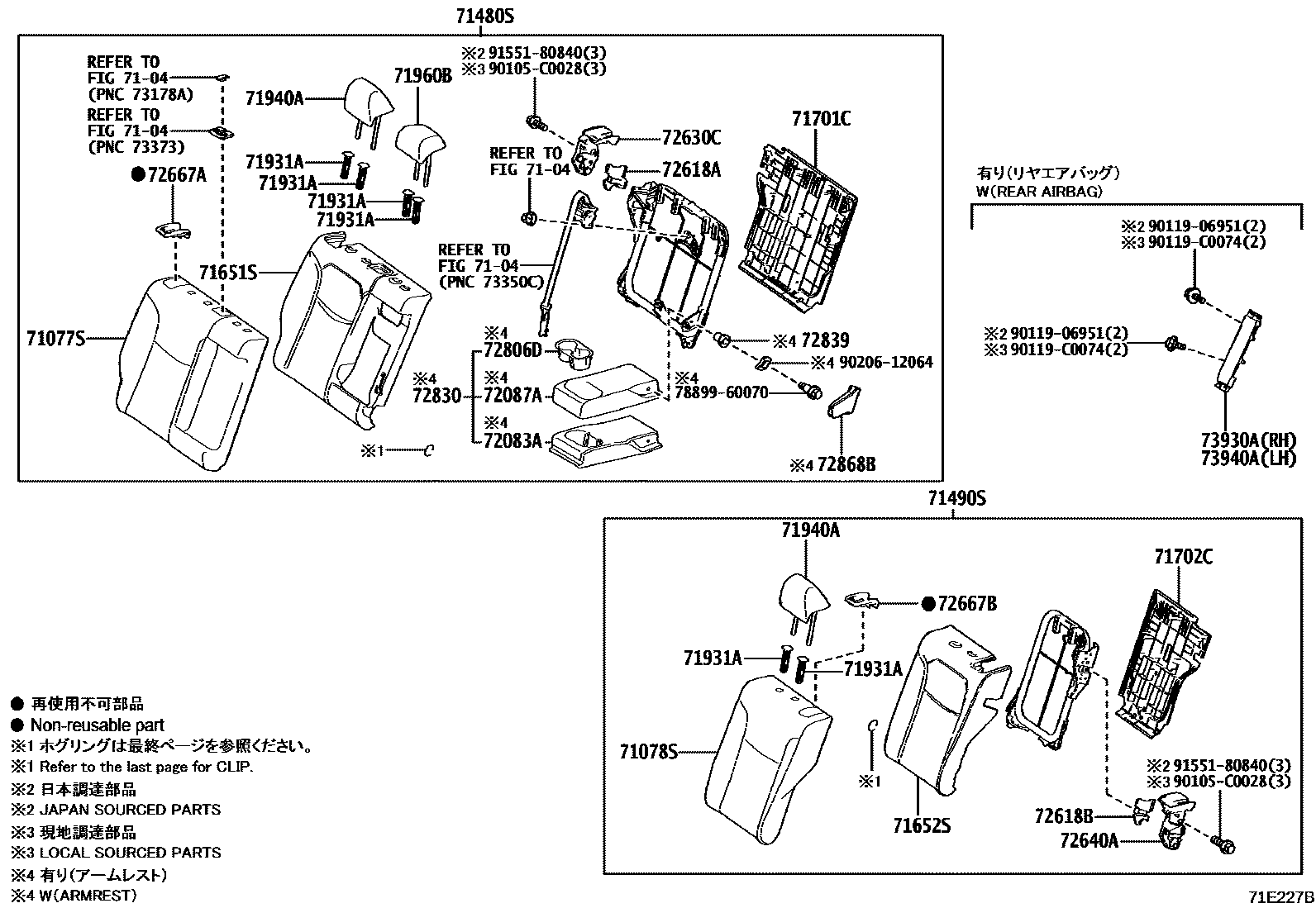

REAR SEAT & SEAT TRACK

0001 1SEAT BACK 0002 1SEAT CUSHION 0003 1SEAT CUSHION 0004 1FITTING PARTS 0005 1FITTING PARTS 0006 1CLIP

7104

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-0A280-C1iMXGA10..J,N202201-202304

MEDIUM GRAY,TRIM4#

main71077-0A280-C2iMXGA10,MXGH10..J202304

BALCK,TRIM2#

main71077-0A290-20iMXGA10,MXGH10..E,G202304

BLACK/LT.GRAY,TRIM2#

main71077-0A290-21iMXGA10,MXGH10..E,G202304

BLACK/OCHER,TRIM4#

main71077-0A290-22iMXGA10..E,G202201-202304

BLACK/LT.GRAY,TRIM2#

main71077-0A290-23iMXGA10..E,G202201-202304

BLACK/OCHER,TRIM4#

main71077-YK150iMXGA10,MXGH10..N202304

CARE CHINA

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-0A120-C1iMXGA10..J,N202201-202304

MEDIUM GRAY,TRIM4#

main71078-0A120-C2iMXGA10..J,N202201-202304

BALCK,TRIM2#

main71078-0A130-20supersedes 71078-0A130-20iMXGA10..E,G202201-202304

BLACK/LT.GRAY,TRIM2#

main71078-0A130-21supersedes 71078-0A130-21iMXGA10..E,G202201-202304

BLACK/OCHER,TRIM4#

main71078-YK080iMXGA10,MXGH10..N202304

CARE CHINA

71480SBACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)

main71480-0A360-C2iMXGA10..J,N202201-202304

BLACK,TRIM2#

main71480-0A360-E3iMXGA10..J,N202201-202304

OCHER,TRIM4#

main71480-0A370-C4iMXGA10,MXGH10..E,G202304

BLACK,TRIM2#

main71480-0A370-C5iMXGA10..E,G202201-202304

BLACK,TRIM2#

main71480-0A370-E4iMXGA10,MXGH10..E,G202304

OCHER,TRIM4#

main71480-0A370-E5iMXGA10..E,G202201-202304

OCHER,TRIM4#

main71480-YK150iMXGA10,MXGH10..N202304

CARE CHINA

71490SBACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)

main71490-0A180-C2iMXGA10..J,N202201-202304

BLACK,TRIM2#

main71490-0A180-E3iMXGA10..J,N202201-202304

OCHER,TRIM4#

main71490-0A190-C4supersedes 71490-0A190-C4iMXGA10..E,G202201-202304

BLACK,TRIM2#

main71490-0A190-E4supersedes 71490-0A190-E4iMXGA10..E,G202201-202304

OCHER,TRIM4#

main71490-YK080iMXGA10,MXGH10..N202304

CARE CHINA

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-0A080iMXGA10..J,N202201-202304

main71651-0A090iMXGA10,MXGH10..E,G202304

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-0A050iMXGA10,MXGH10202304

71701CBOARD SUB-ASSY, REAR SEATBACK, RH

main71701-0A050-C0iMXGA10,MXGH10..N202304

CARE CHINA,BLACK,TRIM2#

71702CBOARD SUB-ASSY, REAR SEATBACK, LH

main71702-0A050-C0iMXGA10202201-202304

BLACK,TRIM2#,4#

71931ASUPPORT, REAR SEAT HEADREST

main71930-06070-C0×3iMXGA10202201-202304

W(LOCK),BLACK,TRIM2#,40

main71930-06070-E5×3iMXGA10202201-202304

W(LOCK),OCHER,TRIM40

main71931-06060-C0×3iMXGA10202201-202304

W/O(LOCK),BLACK,TRIM2#,40

main71931-06060-E5×3iMXGA10,MXGH10..E,G,J202304

W/O(LOCK),OCHER,TRIM40

71940AHEADREST ASSY, REAR SEAT

main71940-0A111-C2×2iMXGA10..J,N202201-202304

BLACK,TRIM2#

main71940-0A111-E3×2supersedes 71940-0A121-E2iMXGA10,MXGH10..J202304

OCHER,TRIM4#

main71940-0A121-C2×2iMXGA10..E,G202201-202304

BLACK,TRIM2#

main71940-0A121-E2×2iMXGA10,MXGH10..E,G202304

OCHER,TRIM4#

main71940-0A121-A0×2supersedes 71940-0A121-C2iMXGA10,MXGH10..N202304

CARE CHINA,CKD COLOR,TRIM2#

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-0A150-C1supersedes 71960-0A150-C1iMXGA10..J,N202201-202304

BALCK,TRIM2#,4#

main71960-0A160-C2iMXGA10..E,G202201-202304

BLACK,TRIM2#

main71960-0A160-C3iMXGA10,MXGH10..E,G202304

BLACK,TRIM4#

main71960-0A160-A0supersedes 71960-0A160-C2iMXGA10,MXGH10..N202304

CARE CHINA,CKD COLOR,TRIM2#

72083APAD SUB-ASSY, REAR SEAT CENTER ARMREST

main72083-0A050iMXGA10..E,G202201-202304

72087ACOVER SUB-ASSY, REAR SEAT CENTER ARMREST

main72087-0A100-C1iMXGA10..E,G202201-202304

BALCK,TRIM2#,4#

72618APROTECTOR, REAR SEATBACK LOCK STRIKER, RH

main72618-0A070-C0iMXGA10202201-202304

BLACK,TRIM2#

72618BPROTECTOR, REAR SEATBACK LOCK STRIKER, LH

main72618-0A080-C0iMXGA10202201-202304

BLACK,TRIM2#

72630CLOCK ASSY, REAR SEATBACK, RH

main72630-0A040-C0iMXGA10202201-202304

BLACK,TRIM2#

main72630-0A040-E0iMXGA10202201-202304

OCHER,TRIM4#

72640ALOCK ASSY, REAR SEATBACK, LH

main72640-0A040-C0iMXGA10202201-202304

BLACK,TRIM2#

main72640-0A040-E0iMXGA10202201-202304

OCHER,TRIM4#

72667ABEZEL, REAR SEATBACK LOCK, UPPER RH

main72667-0A080-C0iMXGA10202201-202304

BLACK,TRIM2#

main72667-0A080-E0iMXGA10202201-202304

OCHER,TRIM4#

72667BBEZEL, REAR SEATBACK LOCK, UPPER LH

main72667-0A100-C0iMXGA10,MXGH10..N202304

BLACK,TRIM2#

main72667-0A100-E0iMXGA10202201-202304

OCHER,TRIM4#

72806DHOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP

main72806-0A050-C0iMXGA10,MXGH10..E,G202304

BLACK,TRIM2#,4#

72830ARMREST ASSY, REAR SEAT, CENTER

main72830-0A100-C1iMXGA10..E,G202201-202304

BALCK,TRIM2#,4#

72839SHIM, REAR SEAT ARMREST HINGE

main72839-22010iMXGA10..E,G202201-202304

72868BCOVER, CENTER ARMREST HINGE

main72868-0A050-C0iMXGA10,MXGH10..E,G202304

BLACK,TRIM2#,4#

73930AAIRBAG ASSY, REAR SEAT, RH

main73930-0A030iMXGA10,MXGH10..E202304

73940AAIRBAG ASSY, REAR SEAT, LH

main73940-0A030iMXGA10,MXGH10..E202304

7889960070BOLT, FRONT SEAT

main78899-60070

90105C0028

main90105-C0028

9011906951

main90119-06951

90119C0074

main90119-C0074

9020612064

main90206-12064

9155180840

main91551-80840

32 parts on this diagram · 6 diagrams in section
