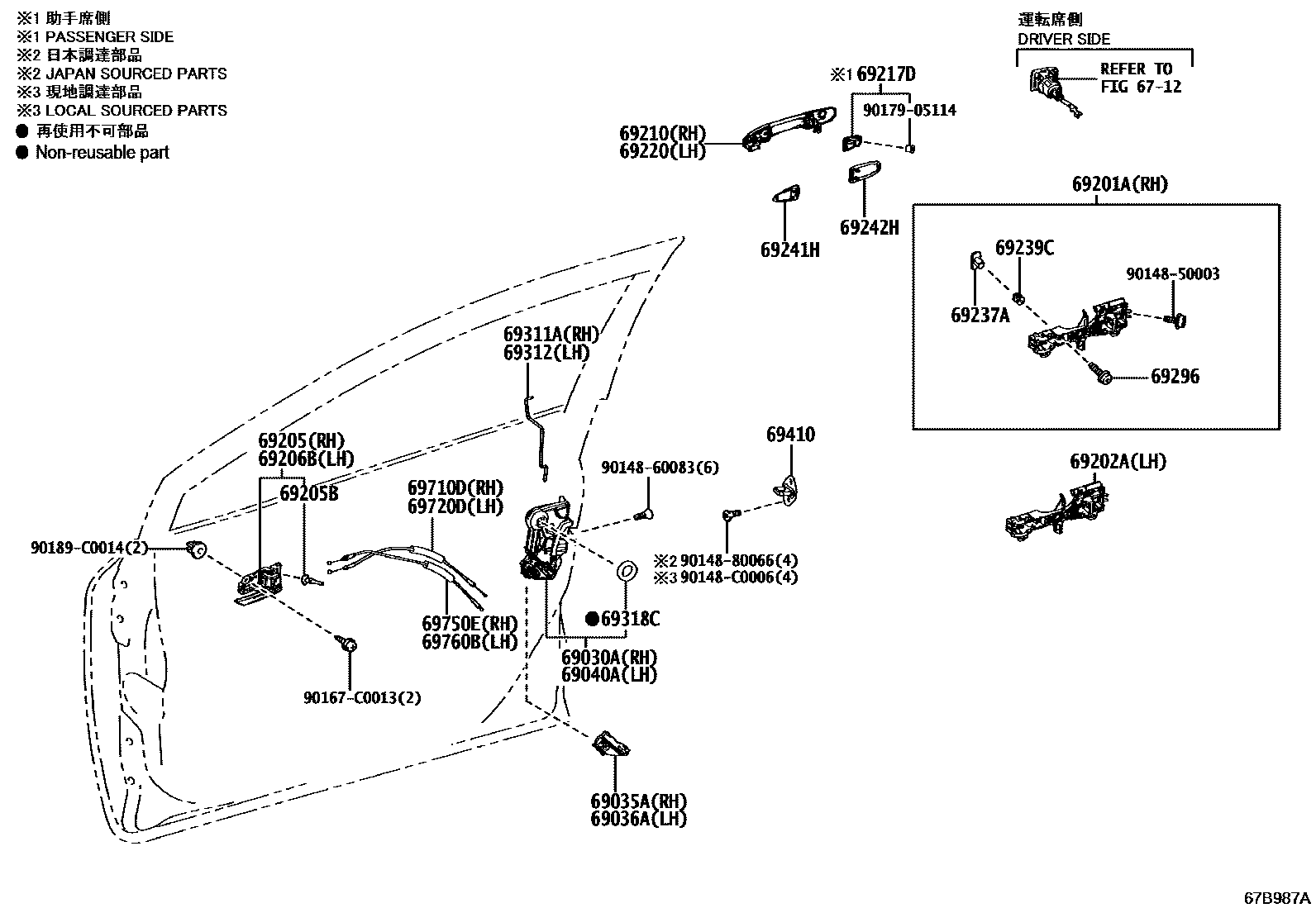

FRONT DOOR LOCK & HANDLE

6712

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-02620iMXGA10,MXGH10202304

69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH

main69035-02060iMXGA10,MXGH10202304

69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH

main69036-02060iMXGA10202201-202304

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-02590iMXGA10202201-202304

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-02430iMXGA10..J202201-202304

main69201-02440supersedes 69201-02430iMXGA10..E,G,N202201-202304

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-02350iMXGA10..J202201-202304

main69202-02360supersedes 69202-02350iMXGA10..E,G,N202201-202304

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-02480-C0iMXGA10..N202201-202304

BLACK,TRIM2#

main69205-02480-E0iMXGA10..N202201-202304

OCHER,TRIM40

main69205-0A080-C0iMXGA10..J202201-202304

BLACK,TRIM2#,4#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04014×2iMXGA10,MXGH10..J202304

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-02460-C0iMXGA10..N202201-202304

BLACK,TRIM2#

main69206-02460-E0iMXGA10..N202201-202304

OCHER,TRIM40

main69206-0A080-C0iMXGA10..J202201-202304

BLACK,TRIM2#,4#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-02500-A1iMXGH10..E,G202307

PLATINUM WHITE PEARL MC.,089 ,2PU

main69210-02500-B2iMXGH10..E,G202307

METAL STREAM ME,1K0 ,2UY

main69210-02500-C0iMXGH10..E,G202307

BLACK MC.,209

main69210-02500-D1iMXGH10..E,G202307

RED MC.,2PN ,3T3

main69210-02500-G0iMXGH10..E,G202307

OXIDE BRONZE ME.,6X1

main69210-02500-G1iMXGH10..E,G202307

URBAN KHAKI,2VN ,6X3

main69210-02500-J0iMXGH10..E,G202307

NEBULA BLUE ME.,8X2

main69210-0A100-A0supersedes 69211-07020-A2iMXGH10..N;MXGA10..E,G,N202304

PLATINUM WHITE PEARL MC.,089 ,2PU

main69210-0A100-B0supersedes 69211-07020-B0iMXGH10..N;MXGA10..E,G,N202304

METAL STREAM ME,1K0 ,2UY

main69210-0A100-C0supersedes 69211-07020-C0iMXGH10..N;MXGA10..E,G,N202304

BLACK MC.,209

main69210-0A100-D0supersedes 69211-07020-D0iMXGH10..N;MXGA10..E,G,N202304

RED MC.,2PN ,3T3

main69210-0A100-G0supersedes 69211-07020-G1iMXGA10..E,G,N202201-202304

OXIDE BRONZE ME.,6X1

main69210-0A100-G1supersedes 69211-07020-G0iMXGH10..N;MXGA10..E,G,N202304

URBAN KHAKI,2VN ,6X3

main69210-0A100-J0supersedes 69211-07020-J1iMXGH10..N;MXGA10..E,G,N202304

NEBULA BLUE ME.,8X2

main69211-07020-A2iMXGA10..J202201-202304

PLATINUM WHITE PEARL MC.,089 ,2PU

main69211-07020-B0iMXGA10..J202201-202304

METAL STREAM ME,1K0 ,2UY

main69211-07020-C0iMXGA10..J202201-202304

BLACK MC.,209

main69211-07020-D0iMXGA10..J202201-202304

RED MC.,2PN ,3T3

main69211-07020-G0iMXGA10..J202201-202304

URBAN KHAKI,2VN ,6X3

main69211-07020-G1iMXGA10..J202201-202304

OXIDE BRONZE ME.,6X1

main69211-07020-J1iMXGA10..J202201-202304

NEBULA BLUE ME.,8X2

69217DCOVER, FRONT DOOR OUTSIDE HANDLE

main69217-07040iMXGA10202201-202304

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-02490-A1iMXGH10..E,G202307

PLATINUM WHITE PEARL MC.,089 ,2PU

main69210-02490-B2iMXGH10..E,G202307

METAL STREAM ME,1K0 ,2UY

main69210-02490-C0iMXGH10..E,G202307

BLACK MC.,209

main69210-02490-D1iMXGH10..E,G202307

RED MC.,2PN ,3T3

main69210-02490-G0iMXGH10..E,G202307

OXIDE BRONZE ME.,6X1

main69210-02490-G1iMXGH10..E,G202307

URBAN KHAKI,2VN ,6X3

main69210-02490-J0iMXGH10..E,G202307

NEBULA BLUE ME.,8X2

main69210-0A090-A0supersedes 69211-02490-A2iMXGA10..E,G,N202201-202304

PLATINUM WHITE PEARL MC.,089 ,2PU

main69210-0A090-B0supersedes 69211-02490-B2iMXGH10..N;MXGA10..E,G,N202304

METAL STREAM ME,1K0 ,2UY

main69210-0A090-C0supersedes 69211-02490-C0iMXGH10..N;MXGA10..E,G,N202304

BLACK MC.,209

main69210-0A090-D0supersedes 69211-02490-D1iMXGH10..N;MXGA10..E,G,N202304

RED MC.,2PN ,3T3

main69210-0A090-G0supersedes 69211-02490-G1iMXGA10..E,G,N202201-202304

OXIDE BRONZE ME.,6X1

main69210-0A090-G1supersedes 69211-02490-G0iMXGH10..N;MXGA10..E,G,N202304

URBAN KHAKI,2VN ,6X3

main69210-0A090-J0supersedes 69211-02490-J1iMXGH10..N;MXGA10..E,G,N202304

NEBULA BLUE ME.,8X2

main69211-02490-A2iMXGA10..J202201-202304

PLATINUM WHITE PEARL MC.,089 ,2PU

main69211-02490-B2iMXGA10..J202201-202304

METAL STREAM ME,1K0 ,2UY

main69211-02490-C0iMXGA10..J202201-202304

BLACK MC.,209

main69211-02490-D1iMXGA10..J202201-202304

RED MC.,2PN ,3T3

main69211-02490-G0iMXGA10..J202201-202304

URBAN KHAKI,2VN ,6X3

main69211-02490-G1iMXGA10..J202201-202304

OXIDE BRONZE ME.,6X1

main69211-02490-J1iMXGA10..J202201-202304

NEBULA BLUE ME.,8X2

69237ANUT, FRONT DOOR HANDLE

main69237-F4030iMXGA10..E,G,N202201-202304

69239CBUSH, FRONT DOOR HANDLE

main69239-07020iMXGA10..E,G,N202201-202304

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-07020×2iMXGA10202201-202304

69242HPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-07020×2iMXGA10202201-202304

69296SCREW, DOOR INSIDE HANDLE

main90148-C0013iMXGA10,MXGH10..E,G,N202304

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-0A070iMXGA10202201-202304

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-0A070iMXGA10202201-202304

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010×2iMXGA10202201-202304

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-0D020×2iMXGA10202201-202304

69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)

main69710-0A060iMXGA10202201-202304

69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)

main69710-0A060iMXGA10202201-202304

69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)

main69750-0A060iMXGA10202201-202304

69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)

main69750-0A060iMXGA10202201-202304

9014850003

main90148-50003

9014860083

main90148-60083

9014880066

main90148-80066

90148C0006

main90148-C0006

90167C0013

main90167-C0013

9017905114

main90179-05114

90189C0014

main90189-C0014

33 parts on this diagram · 1 diagram in section
