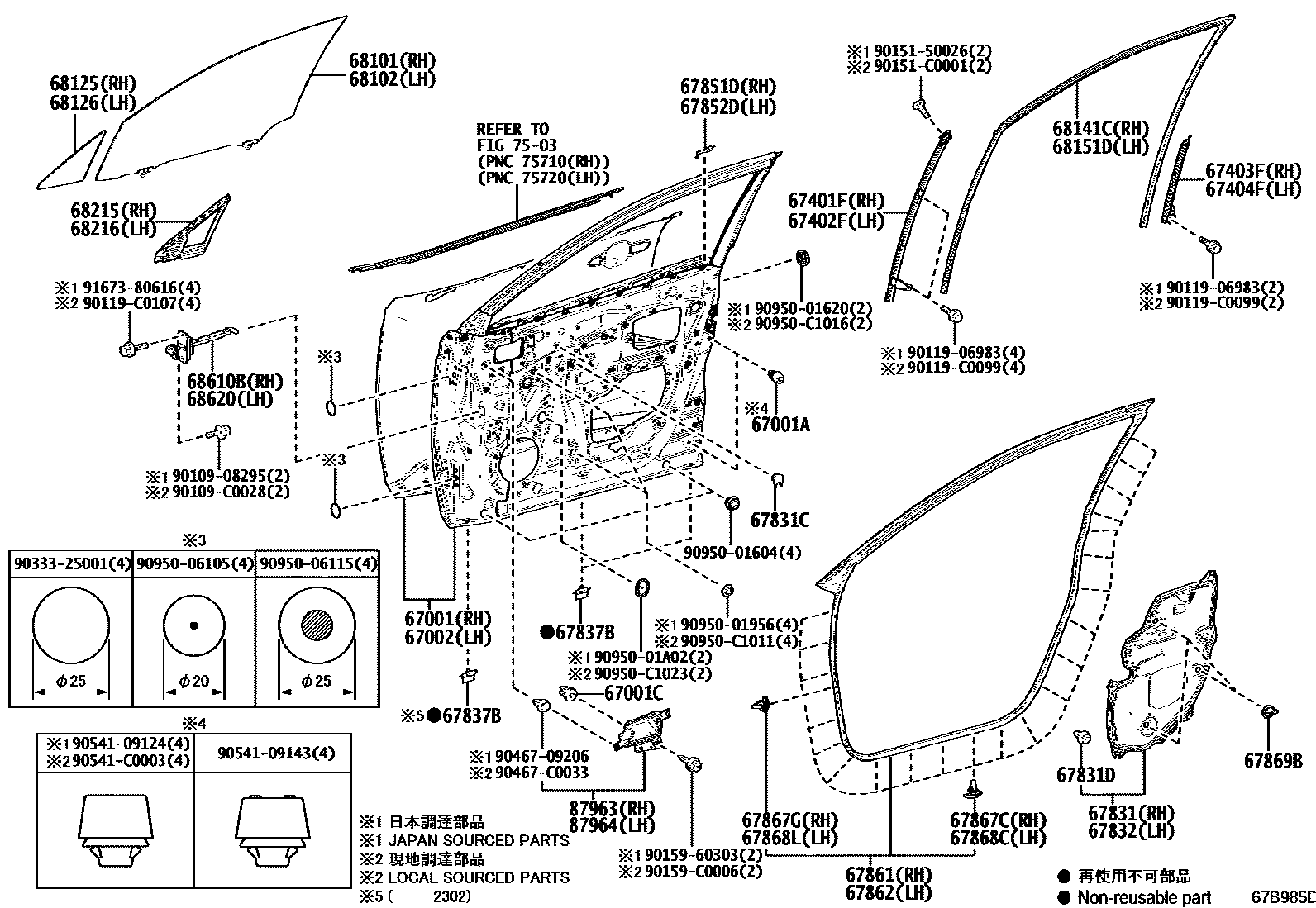

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-0A060iMXGA10,MXGH10202201-202304

67001ACUSHION, FRONT DOOR PANEL

main90541-09124iMXGA10202201-202304

(J)

main90541-09143iMXGA10,MXGH10202201-202304

#,(J)

main90541-C0003iMXGA10,MXGH10202201-202304

(L)

67001CGROMMET(FOR FRONT DOOR PANEL)

main90189-06227iMXGA10,MXGH10202206-202304

(J)

main90189-06227iMXGA10202201-202206

main90189-C0033iMXGA10202206-202304

(L)

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-0A060iMXGA10202201-202304

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-0A060iMXGA10202201-202304

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-0A060iMXGA10202201-202304

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-0A050iMXGA10202201-202304

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-0A050iMXGA10202201-202304

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-0A070iMXGA10202201-202304

67831CCOVER, FRONT DOOR SERVICE HOLE

main67833-47010iMXGA10202201-202304

(J)

main67833-F4020iMXGA10,MXGH10202201-202304

(L)

67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)

main90467-09206iMXGA10202201-202304

(J)

main90467-C0033iMXGA10,MXGH10202201-202304

(L)

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-0A070iMXGA10202201-202304

67837BSEAL, FRONT DOOR DUST PROOF

main67837-F4030iMXGA10202201-202304

67851DSEAL, FRONT DOOR REAR OUTSIDE, RH

main67851-0A050iMXGA10202201-202304

67852DSEAL, FRONT DOOR REAR OUTSIDE, LH

main67852-0A050iMXGA10202201-202304

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-0A060iMXGA10202201-202304

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-0A060iMXGA10202201-202304

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-0D070iMXGA10202201-202304

67867GRETAINER, DOOR WEATHERSTRIP, RH

main67867-52040iMXGA10,MXGH10202201-202304

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150iMXGA10202201-202304

67868LRETAINER, DOOR WEATHERSTRIP, LH

main67867-52040iMXGA10202201-202304

67869BCLIP, FRONT DOOR WEATHERSTRIP

main67869-47010iMXGA10202201-202304

(J)

main67869-F4020iMXGA10,MXGH10202201-202304

(L)

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-0A050iMXGA10202201-202304

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-0A050iMXGA10202201-202304

68125GLASS, FRONT DOOR FIX WINDOW, RH

main68125-0A050iMXGA10202201-202304

68126GLASS, FRONT DOOR FIX WINDOW, LH

main68126-0A050iMXGA10202201-202304

68141CRUN, FRONT DOOR GLASS, RH

main68141-0A070iMXGA10,MXGH10202201-202304

68151DRUN, FRONT DOOR GLASS, LH

main68151-0A070iMXGA10,MXGH10202201-202304

68215WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH

main68215-0A050iMXGA10202201-202304

68216WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH

main68216-0A050iMXGA10,MXGH10202201-202304

68610BCHECK ASSY, FRONT DOOR, RH

main68610-0A060iMXGA10202201-202304

68620CHECK ASSY, FRONT DOOR, LH

main68610-0A060iMXGA10202201-202304

7503

87963COVER, OUTER MIRROR INSTALL HOLE, RH

main87963-0A050iMXGA10202201-202304

87964COVER, OUTER MIRROR INSTALL HOLE, LH

main87964-0A050iMXGA10,MXGH10202201-202304

9010908295

main90109-08295

90109C0028

main90109-C0028

9011906983

main90119-06983

90119C0099

main90119-C0099

90119C0107

main90119-C0107

9015150026

main90151-50026

90151C0001

main90151-C0001

9015960303

main90159-60303

90159C0006

main90159-C0006

9033325001

main90333-25001

9046709206

main90467-09206

90467C0033

main90467-C0033

9095001604

main90950-01604

9095001620

main90950-01620

9095001956

main90950-01956

9095001A02

main90950-01A02

9095006105

main90950-06105

9095006115

main90950-06115

90950C1011

main90950-C1011

90950C1016

main90950-C1016

90950C1023

main90950-C1023

9167380616

main91673-80616

57 parts on this diagram · 2 diagrams in section
