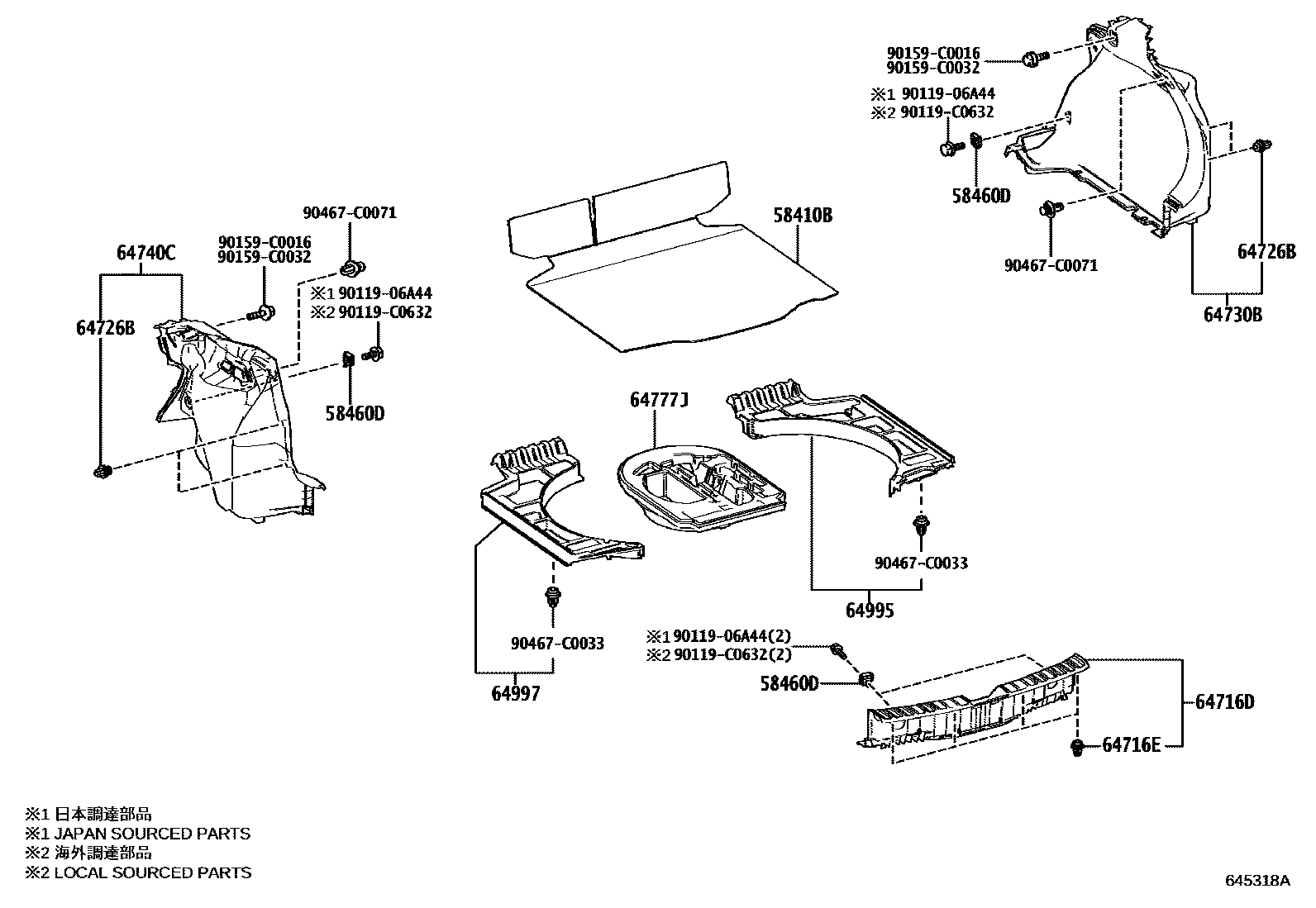

DECK BOARD & DECK TRIM COVER

0001 1 0002 1

58410BBOARD ASSY, DECK

main58410-0A120-C0iMXGA10202201-202304

BLACK,TRIM2#,4#

main58410-0A190-C0iMXGH10202307

BLACK,TRIM2#,4#

58460DSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-33020iMXGA10202201-202304

64716DCOVER, DECK TRIM, REAR

main64716-0A050-C0iMXGA10202201-202304

BLACK,TRIM2#,4#

64716ECLIP(FOR DECK TRIM REAR COVER)

main90467-C0036iMXGA10202201-202304

64726BCLIP, DECK REAR TRIM

main90467-C0036iMXGA10202201-202304

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-0A060-C0iMXGA10202201-202304

BLACK,TRIM2#,4#

main64730-0A190-C0iMXGH10202307

BLACK,TRIM2#,4#

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-0A060-C0iMXGA10202201-202304

BLACK,TRIM2#,4#

main64740-0A170-C0iMXGH10202307

BLACK,TRIM2#,4#

64777JCUSHION, SPARE WHEEL

main64777-0A080iMXGA10202201-202304

64995BOX, DECK FLOOR, RH

main64995-0A080-C0iMXGA10202201-202304

BLACK,TRIM2#,4#

main64995-0A170-C0iMXGH10202307

BLACK,TRIM2#,4#

64997BOX, DECK FLOOR, LH

main64997-0A080-C0iMXGA10202201-202304

BLACK,TRIM2#,4#

9011906A44

main90119-06A44

90119C0632

main90119-C0632

90159C0016

main90159-C0016

90159C0032

main90159-C0032

90467C0033

main90467-C0033

90467C0071

main90467-C0071

16 parts on this diagram · 2 diagrams in section
