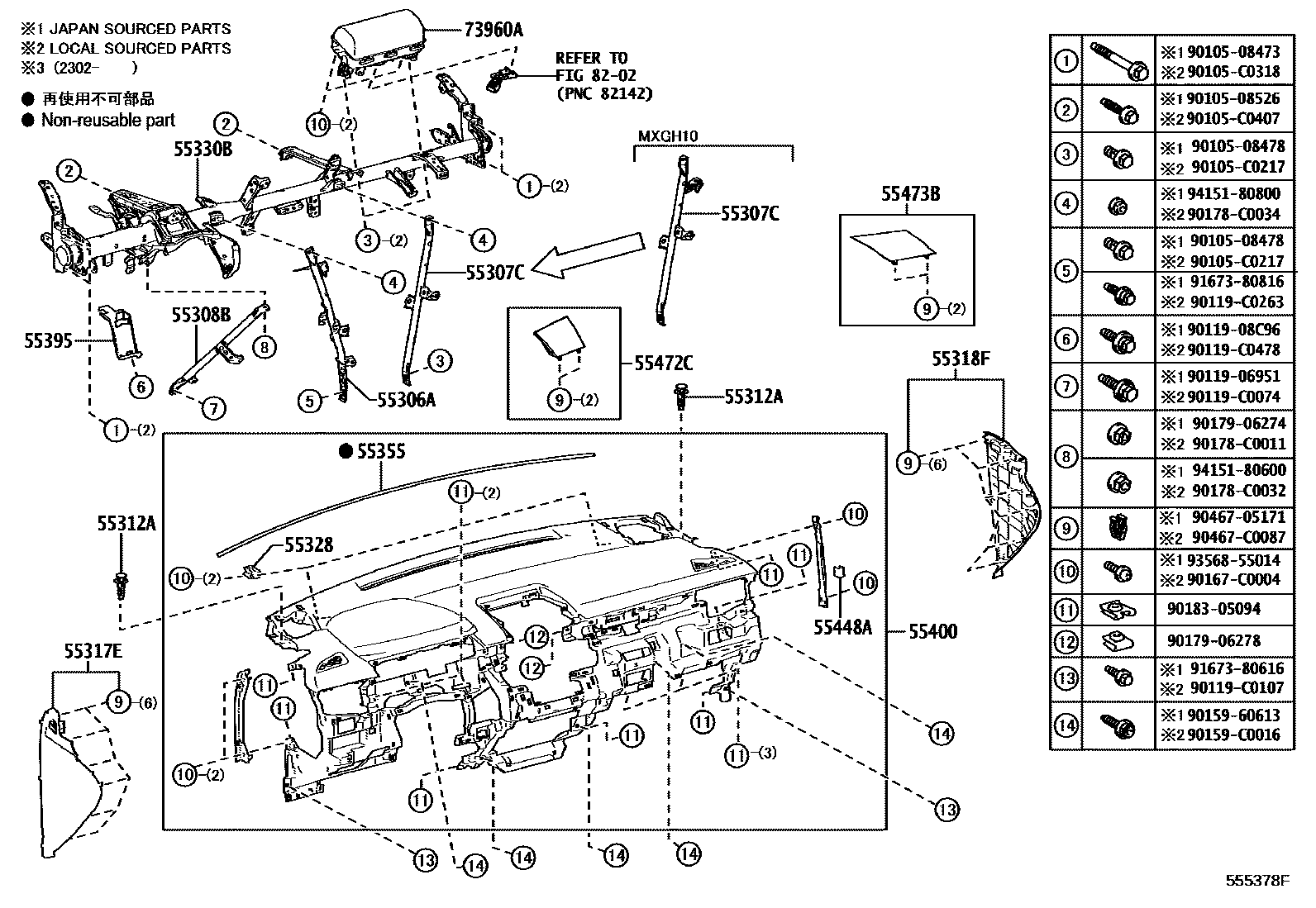

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1CENTER 0005 1PASSENGER SIDE 0006 1PASSENGER SIDE

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-0A070iMXGA10,MXGH10202201-202304

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-0A090iMXGA10202201-202304

main55307-0A130iMXGH10202307

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-0A070iMXGA10,MXGH10202201-202304

55312ACLIP, INSTRUMENT PANEL

main52161-02040iMXGA10202201-202304

(L)

main52161-16010iMXGA10202201-202304

(J)

sub52161-0K040

55317EPANEL, INSTRUMENT SIDE, NO.1

main55317-0A090-C0iMXGA10202201-202304

BLACK,TRIM2#,4#

55318FPANEL, INSTRUMENT SIDE, NO.2

main55318-0A090-C0iMXGA10202201-202304

BLACK,TRIM2#,4#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-07080iMXGA10202203-202304

main55328-12430iMXGA10202201-202202

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-0A090iMXGA10,MXGH10202201-202304

55355CUSHION, INSTRUMENT PANEL, NO.1

main55349-0A040iMXGA10,MXGH10202304

main55349-0A040iMXGA10202302-202304

L=1217

main55355-F4020iMXGA10202201-202302

L=1225

55395BRACKET, INSTRUMENT PANEL TO PEDAL

main55395-0A050iMXGA10202201-202304

55400PAD ASSY, INSTRUMENT PANEL SAFETY

main55400-0A060-C0iMXGA10202201-202304

BLACK,TRIM2#,4#

55448ACUSHION, INSTRUMENT PANEL FINISH, NO.1

main55448-0A010iMXGA10202302-202304

55472CPANEL, INSTRUMENT PANEL SPEAKER, NO.1

main55472-0A080-C0iMXGA10202201-202304

BLACK,TRIM2#,4#

55473BPANEL, INSTRUMENT PANEL SPEAKER, NO.2

main55473-0A080-C0iMXGA10,MXGH10202201-202304

BLACK,TRIM2#,4#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-0A140iMXGA10202201-202304

8202

9010508473

main90105-08473

9010508478

main90105-08478

9010508526

main90105-08526

90105C0217

main90105-C0217

90105C0318

main90105-C0318

90105C0407

main90105-C0407

9011906951

main90119-06951

9011908C96

main90119-08C96

90119C0074

main90119-C0074

90119C0107

main90119-C0107

90119C0263

main90119-C0263

90119C0478

main90119-C0478

9015960613

main90159-60613

90159C0016

main90159-C0016

90167C0004

main90167-C0004

90178C0011

main90178-C0011

90178C0032

main90178-C0032

90178C0034

main90178-C0034

9017906274

main90179-06274

9017906278

main90179-06278

9018305094

main90183-05094

9046705171

main90467-05171

90467C0087

main90467-C0087

9167380616

main91673-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180600

main94151-80600

9415180800

main94151-80800

44 parts on this diagram · 6 diagrams in section
