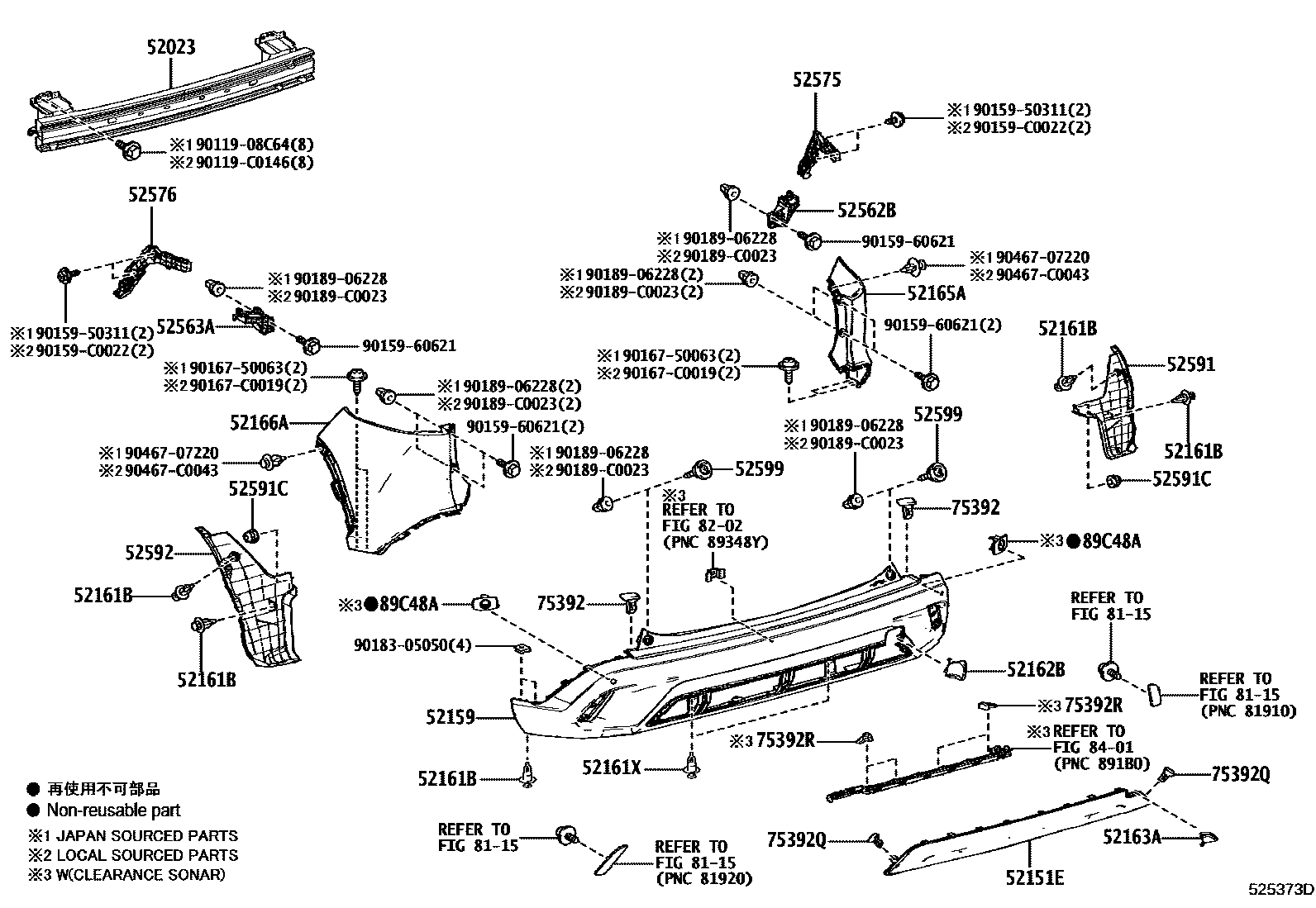

REAR BUMPER & BUMPER STAY
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
52151EBAR, REAR BUMPER
PAINT REQ.
52159COVER, REAR BUMPER
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,CARE CHINA
52161BPIECE, REAR BUMPER
(L)
52161XPIECE, REAR BUMPER
(L)
52162BPLATE, REAR BUMPER, NO.1
52163APLATE, REAR BUMPER, RH
52165ACOVER, REAR BUMPER, UPR RH
PAINT REQ.
52166ACOVER, REAR BUMPER, UPR LH
PAINT REQ.
52562BRETAINER, REAR BUMPER, UPPER RH
52563ARETAINER, REAR BUMPER, UPPER LH
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
52591SEAL, REAR BUMPER SIDE, RH
52591CCLIP, REAR BUMPER SIDE SEAL
BLACK,(J)
BLACK,(L)
52592SEAL, REAR BUMPER SIDE, LH
52599STOPPER, REAR BUMPER, UPPER
75392RETAINER, OUTSIDE MOULDING
(L)
(J)
75392QRETAINER, OUTSIDE MOULDING, NO.2
(L)
(J)
75392RRETAINER, OUTSIDE MOULDING, NO.3
(L)
(J)
8115
8202
8401
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
CARE CHINA
9011908C64
main90119-08C64
90119C0146
main90119-C0146
9015950311
main90159-50311
9015960621
main90159-60621
90159C0022
main90159-C0022
9016750063
main90167-50063
90167C0019
main90167-C0019
9018305050
main90183-05050
9018906228
main90189-06228
90189C0023
main90189-C0023
9046707220
main90467-07220
90467C0043
main90467-C0043
36 parts on this diagram · 1 diagram in section
