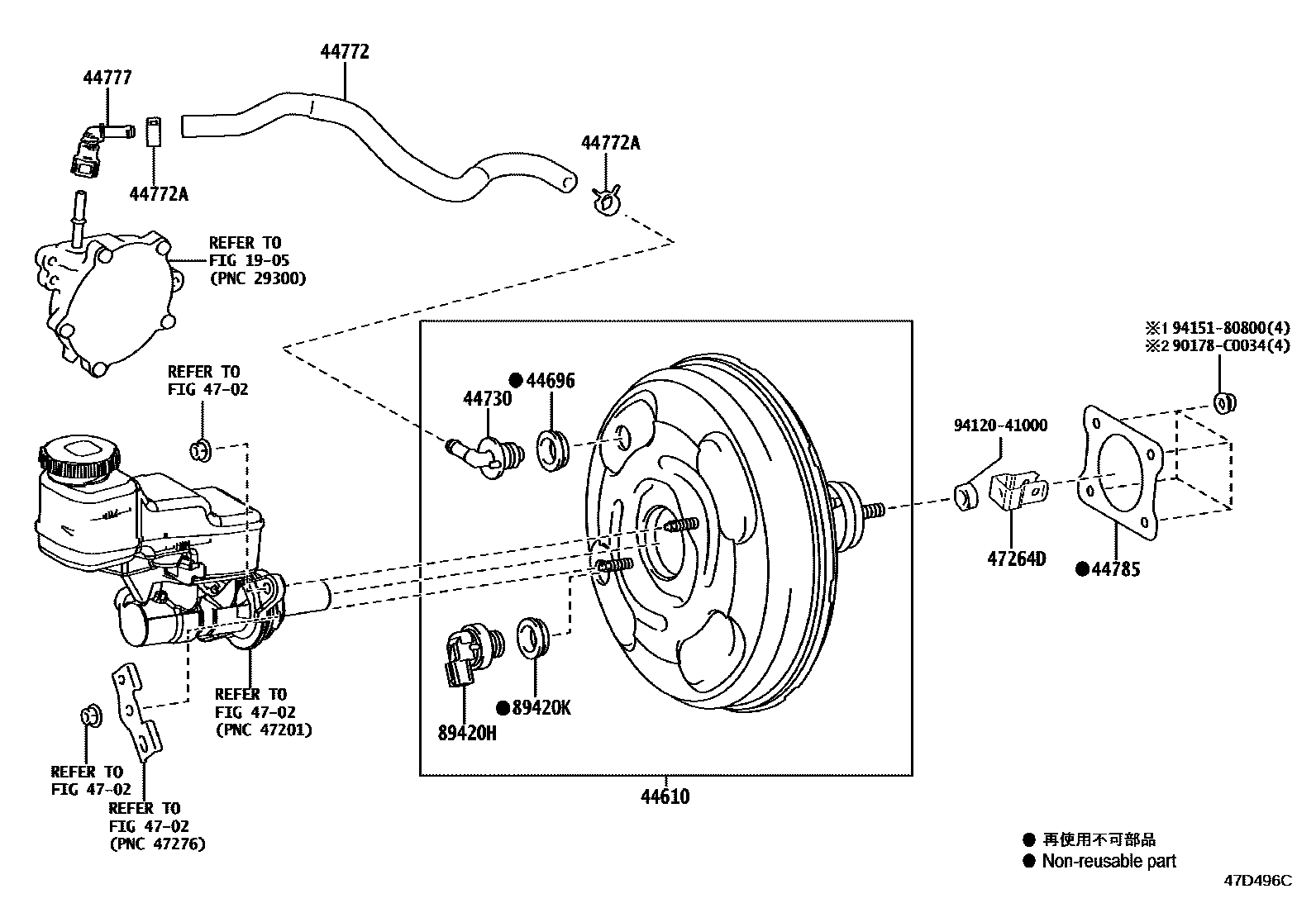

BRAKE BOOSTER & VACUUM TUBE

1905

44610BOOSTER ASSY, BRAKE

main44610-0A070iMXGA10202201-202304

main44610-0A100iMXGA10202304

44696GROMMET, CHECK VALVE

main90080-48071iMXGA10202201-202304

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-52010iMXGA10202201-202304

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-F4020iMXGA10202201-202304

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90466-C0034iMXGA10202201-202304

(L)

main90467-16014iMXGA10202201-202304

(J)

44777CONNECTOR, VACUUM HOSE, NO.1

main44777-12010iMXGA10202209-202304

(J)

main44777-12010iMXGA10202201-202209

main44777-F4010iMXGA10202209-202304

(L)

44785GASKET, BRAKE BOOSTER

main44785-02050iMXGA10202201-202304

(L)

main44785-12040iMXGA10202201-202304

(J)

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-12060iMXGA10202201-202304

89420HSENSOR ASSY, VACUUM

main89421-52020iMXGA10202201-202304

main89421-71040iMXGA10202304

89420KGROMMET, VACUUM SENSOR

main90080-48071iMXGA10202201-202304

90178C0034

main90178-C0034

9412041000

main94120-41000

9415180800

main94151-80800

15 parts on this diagram · 1 diagram in section
