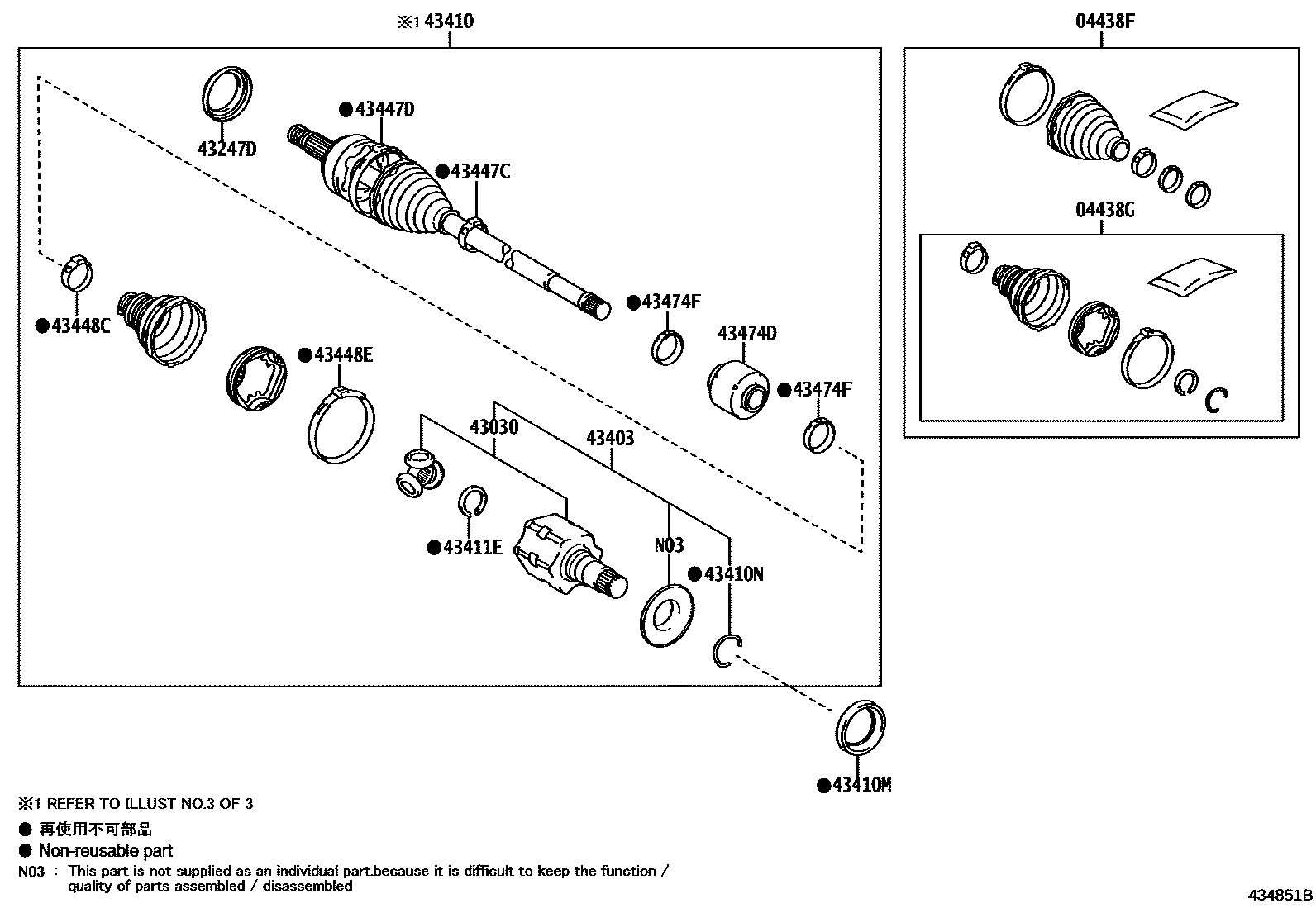

FRONT DRIVE SHAFT
04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
TYPE A
04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
TYPE A
TYPE B
43030JOINT ASSY, FRONT DRIVE INBOARD, RH
TYPE B
TYPE A
43247DDEFLECTOR, FRONT WHEEL BEARING DUST, NO.2 RH
TYPE B
TYPE A
43403JOINT SET, FRONT AXLE INBOARD, RH
TYPE A
43410SHAFT ASSY, FRONT DRIVE, RH
TYPE A
TYPE B
43410MOIL SEAL, FRONT DRIVE SHAFT, RH
43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
TYPE A
(L),TYPE B
(J),TYPE B
43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
(J),TYPE B
TYPE A
(L),TYPE B
43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
TYPE B
TYPE A
43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
TYPE B
TYPE A
43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
TYPE B
TYPE A
43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
TYPE B
TYPE A
43474DDAMPER, FRONT DRIVE SHAFT, RH
TYPE B
TYPE A
43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)
TYPE B
TYPE A
15 parts on this diagram · 5 diagrams in section
