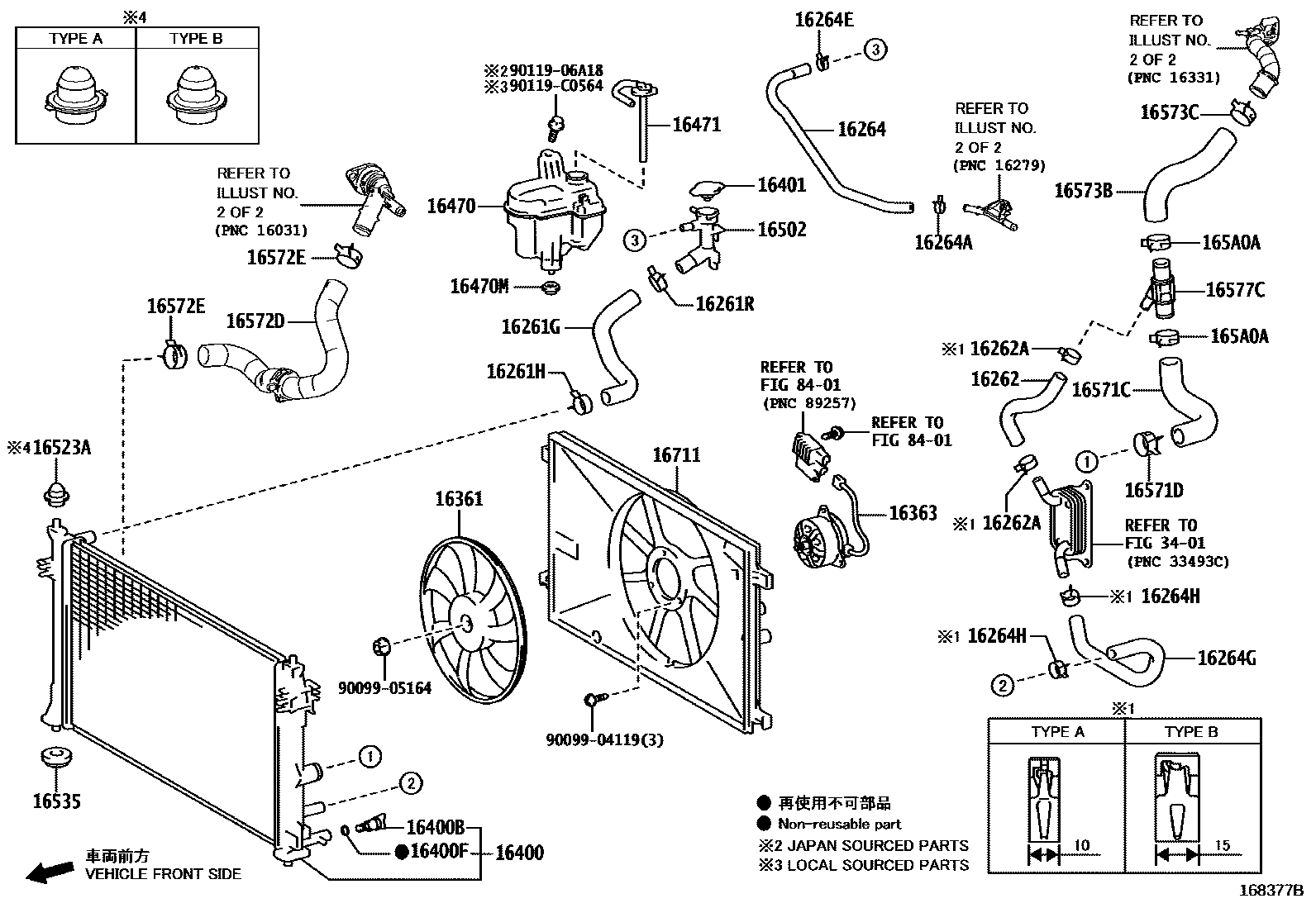

RADIATOR & WATER OUTLET
16261GHOSE, WATER BY-PASS, NO.1
16261HCLIP(FOR WATER BY-PASS HOSE NO.1)
16261RCLAMP OR CLIP(FOR WATER BY-PASS HOSE)
16262HOSE, WATER INLET
16262ACLIP(FOR WATER INLET HOSE)
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
16264HOSE, WATER BY-PASS, NO.2
16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
16264ECLIP(FOR WATER BY-PASS HOSE NO.2)
16264GHOSE, WATER BY-PASS, NO.3
16264HCLIP(FOR WATER BY-PASS HOSE NO.3)
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
16361FAN
16363MOTOR, COOLING FAN
16400RADIATOR ASSY
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16401CAP SUB-ASSY, RADIATOR
(J)
(L)
16470TANK ASSY, RADIATOR RESERVE
16471CAP SUB-ASSY, RESERVE TANK
16502FILLER SUB-ASSY, WATER
16523ACUSHION, RADIATOR SUPPORT
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
16535SUPPORT, RADIATOR, LOWER
(J)
(L)
16572ECLIP, RADIATOR HOSE, NO.2
16573BHOSE, RADIATOR, NO.3
16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3
16577CPIPE, RADIATOR
165A0ACLIP, HOSE
16711SHROUD, FAN
3401
8401
9009904119
main90099-04119
9009905164
main90099-05164
9011906A18
main90119-06A18
90119C0564
main90119-C0564
37 parts on this diagram · 4 diagrams in section
