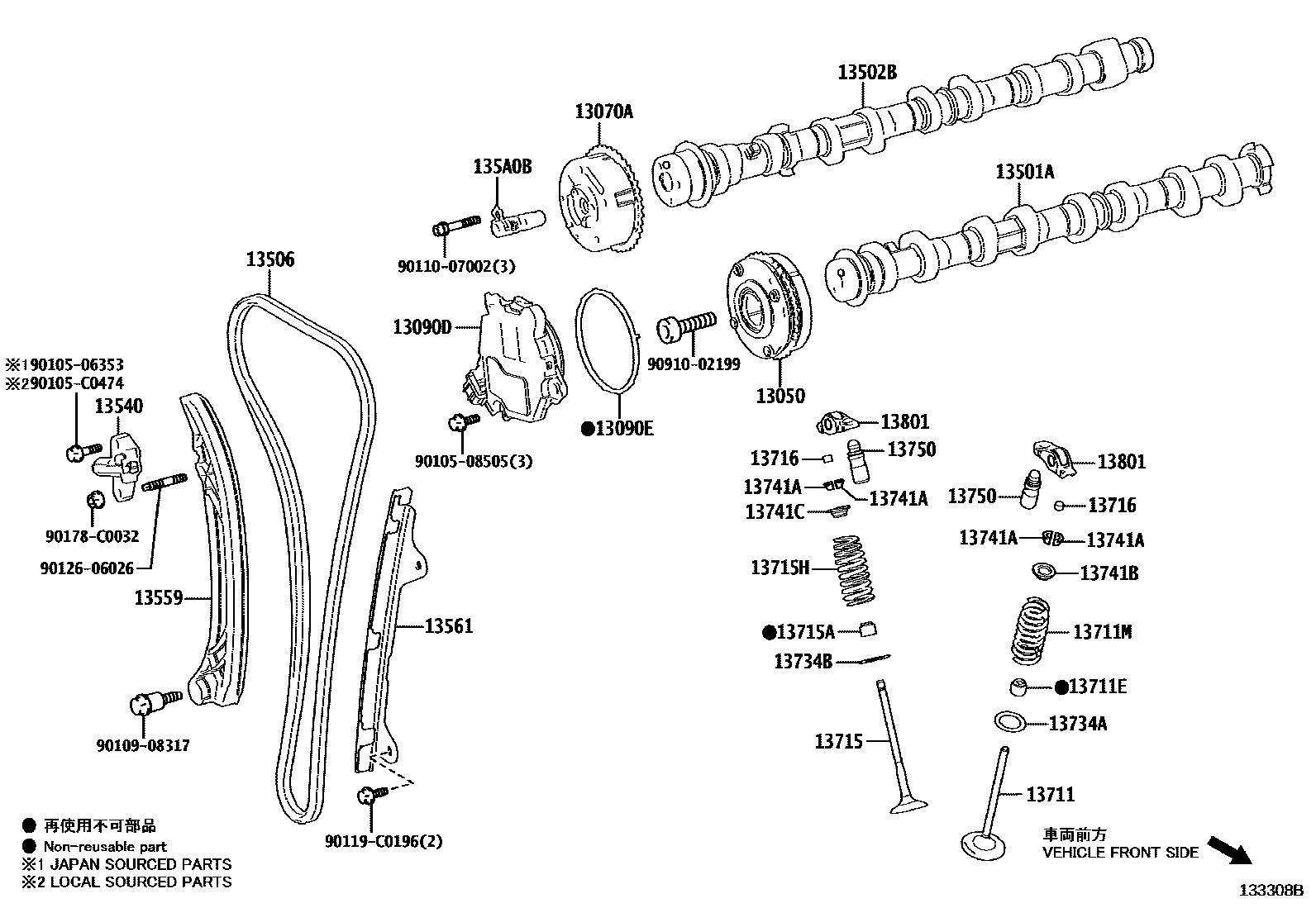

CAMSHAFT & VALVE
13050GEAR ASSY, CAMSHAFT TIMING
13070AGEAR ASSY, CAMSHAFT TIMING EXHAUST
13090DMOTOR ASSY, CAM TIMING CONTROL W/EDU
(J)
(L)
13090ERING, O(FOR CAM TIMING CONTROL MOTOR)
13501ACAMSHAFT SUB-ASSY, INTAKE
(J)
(J)
(L)
(L)
13502BCAMSHAFT SUB-ASSY, EXHAUST
(J)
(J)
(L)
(L)
13506CHAIN SUB-ASSY
13540TENSIONER ASSY, CHAIN, NO.1
13559SLIPPER, CHAIN TENSIONER
13561DAMPER, CHAIN VIBRATION, NO.1
135A0BVALVE ASSY, CAMSHAFT TIMING
13711ESEAL, INTAKE VALVE STEM OIL
13711MSPRING, COMPRESSION(FOR INTAKE VALVE)
(J)
(L)
13715VALVE, EXHAUST
13715ASEAL, EXHAUST VALVE STEM OIL
13715HSPRING, COMPRESSION(FOR EXHAUST VALVE)
(J)
(L)
13716CAP, VALVE STEM
13734ASEAT, INTAKE VALVE SPRING
13734BSEAT, EXHAUST VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
(J)
(L)
13741BRETAINER, INTAKE VALVE SPRING
13741CRETAINER, EXHAUST VALVE SPRING
13750ADJUSTER ASSY, VALVE LASH
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
9010506353
main90105-06353
9010508505
main90105-08505
90105C0474
main90105-C0474
9010908317
main90109-08317
9011007002
main90110-07002
90119C0196
main90119-C0196
9012606026
main90126-06026
90178C0032
main90178-C0032
9091002199
main90910-02199
34 parts on this diagram · 1 diagram in section
