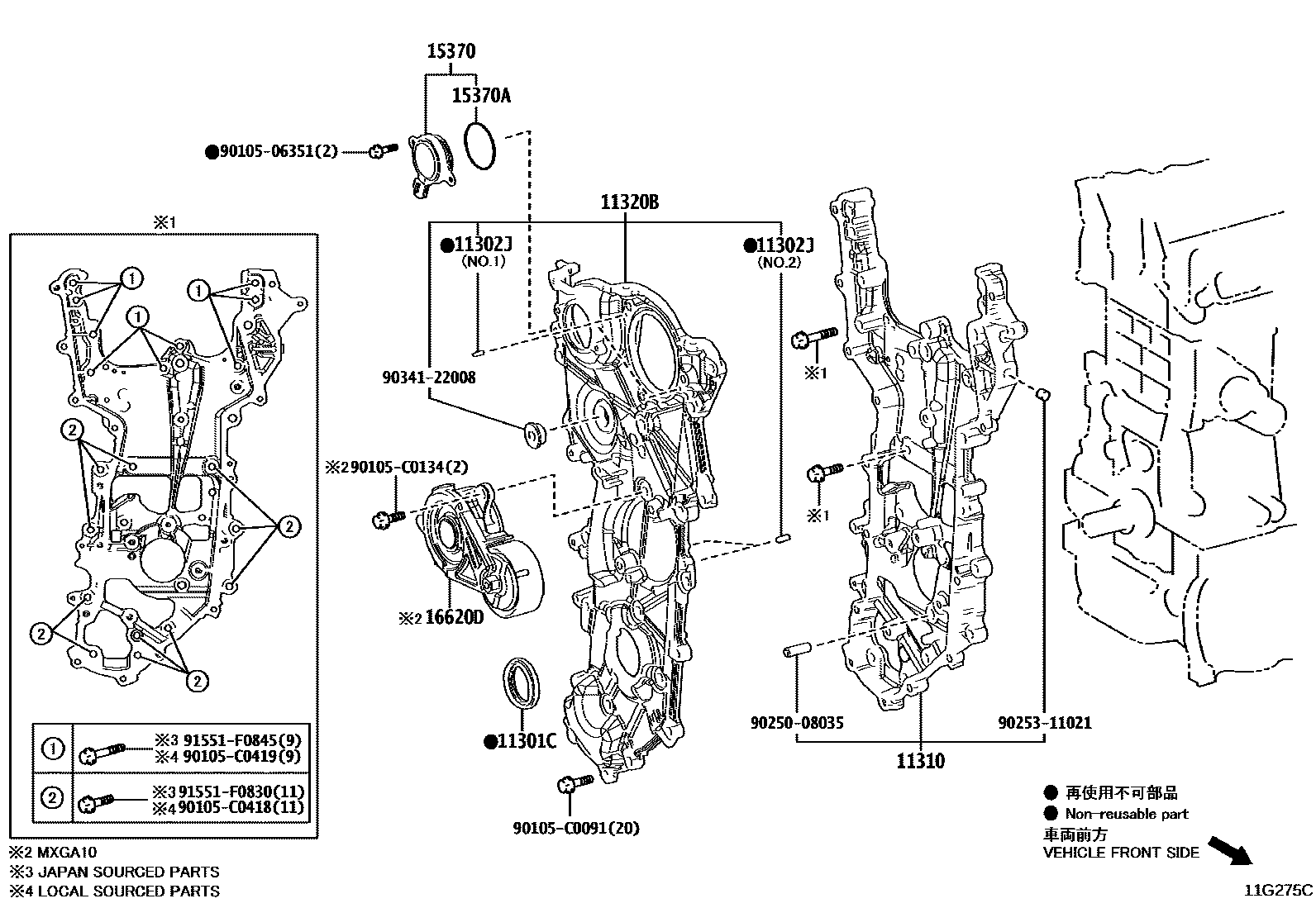

TIMING GEAR COVER & REAR END PLATE

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-C0054iM20..MXGA10,MXGH10202201-202304

11302JPIN, STRAIGHT(FOR TIMING CHAIN COVER)

main90250-06003iM20..MXGA10,MXGH10202201-202304

NO.2:REFER ILLUST.

main90250-C0009iM20..MXGA10202201-202304

NO.1:REFER ILLUST.

11310COVER ASSY, TIMING CHAIN

main11310-F2060iM20..MXGA10202201-202209

sub11310-F2061

main11310-F2061iM20..MXGA10202210-202304

11320BCOVER ASSY, TIMING CHAIN, NO.2

main11320-F2060iM20..MXGA10202201-202304

15370SOLENOID ASSY, CAM TIMING OIL CONTROL

main15370-25020iM20..MXGA10202201-202304

15370ARING, O(FOR CAM TIMING OIL CONTROL SOLENOID)

main90301-44006iM20..MXGA10202201-202304

16620DTENSIONER ASSY, V-RIBBED BELT

main16620-F2040iM20..MXGA10202201-202210

main16620-F2070iM20..MXGA10202210-202304

9010506351

main90105-06351

90105C0091

main90105-C0091

90105C0134

main90105-C0134

90105C0418

main90105-C0418

90105C0419

main90105-C0419

9025008035

main90250-08035

9025311021

main90253-11021

9034122008

main90341-22008

91551F0830

main91551-F0830

91551F0845

main91551-F0845

17 parts on this diagram · 1 diagram in section
