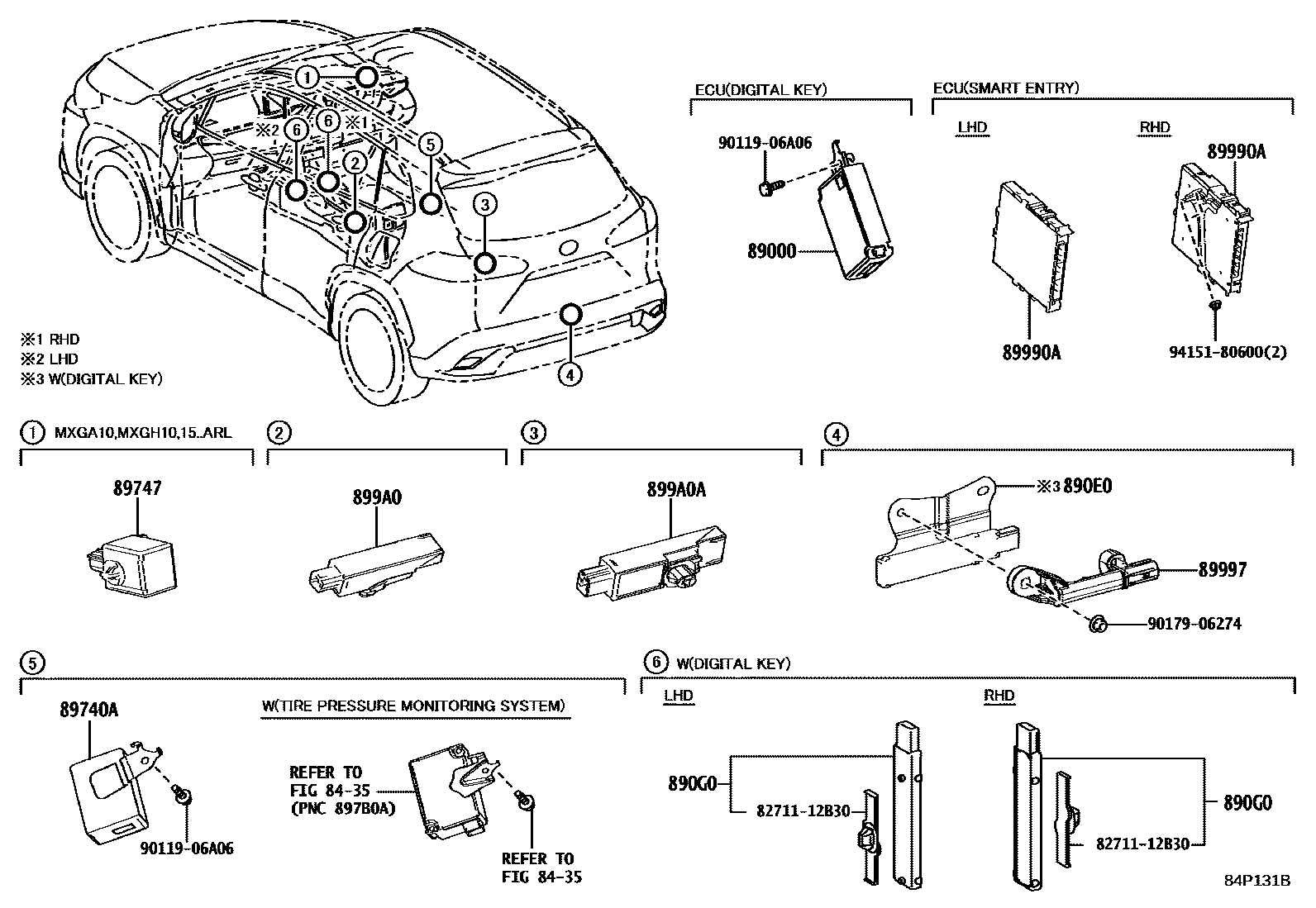

WIRELESS DOOR LOCK

8435

89000COMPUTER ASSY, DIGITAL KEY

main89000-16010¥23,800

main89000-16030¥21,600

890E0RECEIVER ASSY, BLE DIGITAL KEY

main890E0-16010¥7,100

890G0RECEIVER ASSY, BLE INDOOR DIGITAL KEY

main890G0-V1010¥7,100

89740ARECEIVER ASSY, SMART DOOR CONTROL

main89740-16030iMXGA10,MXGH10,15..ARL202207

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iMXGA10,MXGH10,15..ARL¥2,900202207

89990ACOMPUTER ASSY, SMART KEY

main899H0-16130iMXGA10..E,N202207-202401

SMART ENTRY-WITH(PANIC BUTTON)

main899H0-16140iMXGH10..E,N;MXGH15..N..ARL;MXGH12,15,ZVG13..RHD..(E,G)202207-202401

SMART ENTRY-WITH & WITHOUT(PANIC BUTTON)

main899H0-16140iMXGH10..E,N;MXGH15..N..ARL;MXGH12,15,ZVG13..RHD..(E,G)202207-202401

SMART ENTRY-WITH(PANIC BUTTON)

main899H0-16150iMXGH12,15,ZVG1#..LHD..(E,G)202207-202401

SMART ENTRY-WITH & WITHOUT(PANIC BUTTON)

main899H0-16160iMXGA10..J202207-202401

main899H0-16170iMXGH10..J;MXGH12,15,ZVG13..RHD..N..EUR202207-202401

SMART ENTRY-WITHOUT

main899H0-16180iMXGH12,15,ZVG1#..LHD..N202207-202401

SMART ENTRY-WITHOUT

main899H0-16210iMXGA10..E,N¥44,900202401

SMART ENTRY-WITH(PANIC BUTTON)

main899H0-16220iMXGH10..E,N;MXGH15..N..ARL;MXGH12,15,ZVG13..RHD..(E,G)¥44,900202401

SMART ENTRY-WITH & WITHOUT(PANIC BUTTON)

main899H0-16220iMXGH10..E,N;MXGH15..N..ARL;MXGH12,15,ZVG13..RHD..(E,G)¥44,900202401

SMART ENTRY-WITH(PANIC BUTTON)

main899H0-16230iMXGA10..J¥44,900202401

main899H0-16240iMXGH10..J;MXGH12,15,ZVG13..RHD..N..EUR202401

main899H0-16250iMXGH12,15,ZVG1#..LHD..(E,G)202401

SMART ENTRY-WITH & WITHOUT(PANIC BUTTON)

main899H0-16260iMXGH12,15,ZVG1#..LHD..N202401

89997ANTENNA, ELECTRICAL KEY

main89997-30100iMXGH15..N..ARL;MXGA10,MXGH10..E,N;MXGH12,15,ZVG1#..E,G¥1,800202207

SMART ENTRY-WITH & WITHOUT(PANIC BUTTON)

main89997-30100iMXGH15..N..ARL;MXGA10,MXGH10..E,N;MXGH12,15,ZVG1#..E,G¥1,800202207

SMART ENTRY-WITH(PANIC BUTTON)

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-12080iMXGA10,MXGH1#,ZVG1#¥1,410202207

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-12130iMXGA10,MXGH1#,ZVG1#¥1,410202207

8271112B30WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12B30¥110

9011906A06

main90119-06A06¥60

9017906274

main90179-06274¥70

9415180600

main94151-80600¥60

14 parts on this diagram · 1 diagram in section
