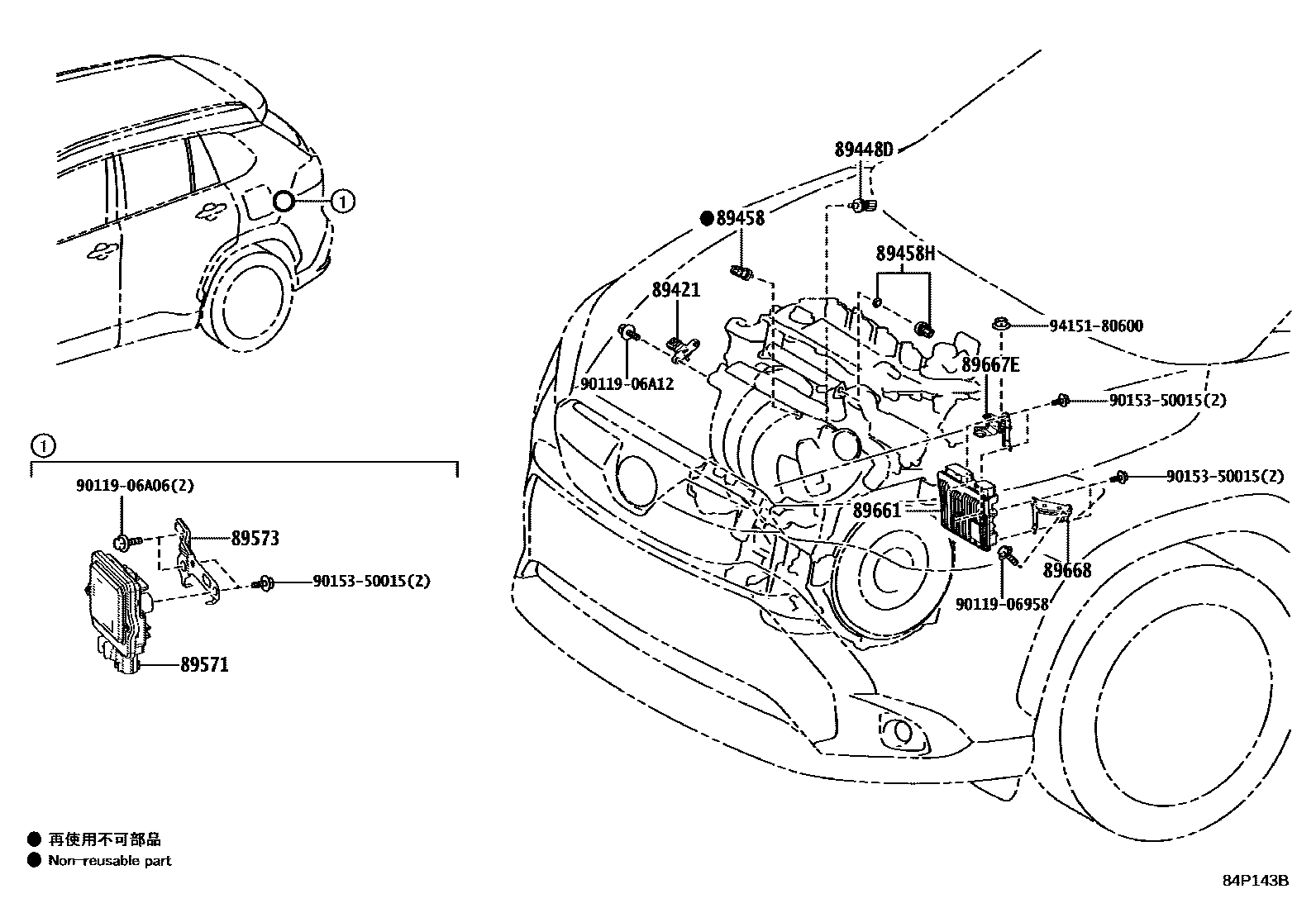

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-26030iZVG1#202207

main89421-33010iMXGA10,MXGH1#202207

89448DSENSOR, OIL PRESSURE & TEMPERATURE

main89448-33010iMXGA10,MXGH1#202207

89458SENSOR, FUEL PRESSURE

main89458-33030iMXGA10,MXGH1#202207

89458HSENSOR, FUEL PRESSURE, NO.2

main89458-33042iMXGA10,MXGH1#202207

89571COMPUTER, FUEL PUMP CONTROL

main89571-48010iMXGA10,MXGH1#202207

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-12110iMXGA10,MXGH1#202207

89661COMPUTER, ENGINE CONTROL

main89661-16770iMXGA10202207-202401

DENSO TEN,*614

main89661-16790iZVG1#202207-202401

DENSO,*614

main89661-16810iMXGH1#202207-202401

DENSO,*614

main89661-16820iZVG1#202401

DENSO,*614

main89661-16840iMXGH1#202401

DENSO,*614

main89661-16860iMXGA10202401

DENSO TEN,*614

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-12350iMXGA10202207

main89667-47110iMXGH1#202207

main89667-47120iZVG1#202207

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-12280iMXGA10202207

main89668-47060iMXGH1#202207

main89668-47070iZVG1#202207

9011906958

main90119-06958

9011906A06

main90119-06A06

9011906A12

main90119-06A12

9015350015

main90153-50015

9415180600

main94151-80600

14 parts on this diagram · 3 diagrams in section
