0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE ROOM 0005 1ENGINE ROOM 0006 1ENGINE ROOM RELAY BLOCK 0007 1ENGINE ROOM RELAY BLOCK 0008 1ENGINE ROOM RELAY BLOCK 0009 1COWL 0010 1COWL 0011 1INSTRUMENT PANEL 0012 1INSTRUMENT PANEL 0013 1STEERING 0014 1SEAT 0015 1SEAT 0016 1DOOR & ROOF 0017 1FLOOR & BACK DOOR 1/2 0018 1FLOOR & BACK DOOR 2/2

82715BRACKET,WIRING HARNESS CLAMP

main82715-12X60iMXGH12,15,ZVG1#..LHD202207

82715WBRACKET, WIRING HARNESS CLAMP

main82729-20040iMXGA10,MXGH1#,ZVG1#202207

82715XBRACKET, WIRING HARNESS CLAMP, NO.2

main82715-47690iMXGA10,MXGH1#,ZVG1#202207

82715YBRACKET, WIRING HARNESS CLAMP, NO.3

main82715-10330iMXGA10202207

82715ZBRACKET, WIRING HARNESS CLAMP

main82715-12V90iMXGA10,MXGH1#202207

84540SWITCH ASSY, NEUTRAL START

main84540-12240iMXGA10202207

89419BSENSOR, SHIFT STROKE

main89419-K2010iMXGA10202207

89422ASENSOR, WATER TEMPERATURE

main89422-33040iMXGA10,MXGH1#202207

89467BSENSOR, AIR FUEL RATIO

main89467-12340iZVG1#202207

main89467-47040iMXGA10,MXGH1#202207

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-16010iMXGH12,15..EUR202207

main89467-16020iMXGH10,15..ARL202207

UKRAINE,MOLDOVA SPEC

main89467-16020iMXGH10,15..ARL202207

UKRAINE SPEC

main89467-16020iMXGH10,15..ARL202207

GEORGIA,AZERBAIJAN SPEC

main89467-16030iMXGA10202401

main89467-76010iMXGA10202207-202401

89491SENSOR, ENGINE OIL LEVEL

main89491-28091iZVG1#202207

main89491-33052iMXGA10,MXGH1#202207

89535BCOMPUTER, TRANSMISSION CONTROL

main89535-16090iMXGA10202207

*614

89539MBRACKET, TRANSMISSION CONTROL COMPUTER, NO.1

main89539-12070iMXGA10202207

89539NBRACKET, TRANSMISSION CONTROL COMPUTER, NO.2

main89539-12080iMXGA10202207

89615SENSOR, KNOCK CONTROL

main89615-20090iMXGA10,MXGH1#,ZVG1#202207

8271512X50BRACKET,WIRING HARNESS CLAMP

main82715-12X50

9011906A12

main90119-06A12

9011906A23

main90119-06A23

9015350015

main90153-50015

9046814044

main90468-14044

9046815007

main90468-15007

9155180835

main91551-80835

9161160618

main91611-60618

9165140620

main91651-40620

9167180616

main91671-80616

9167380616

main91673-80616

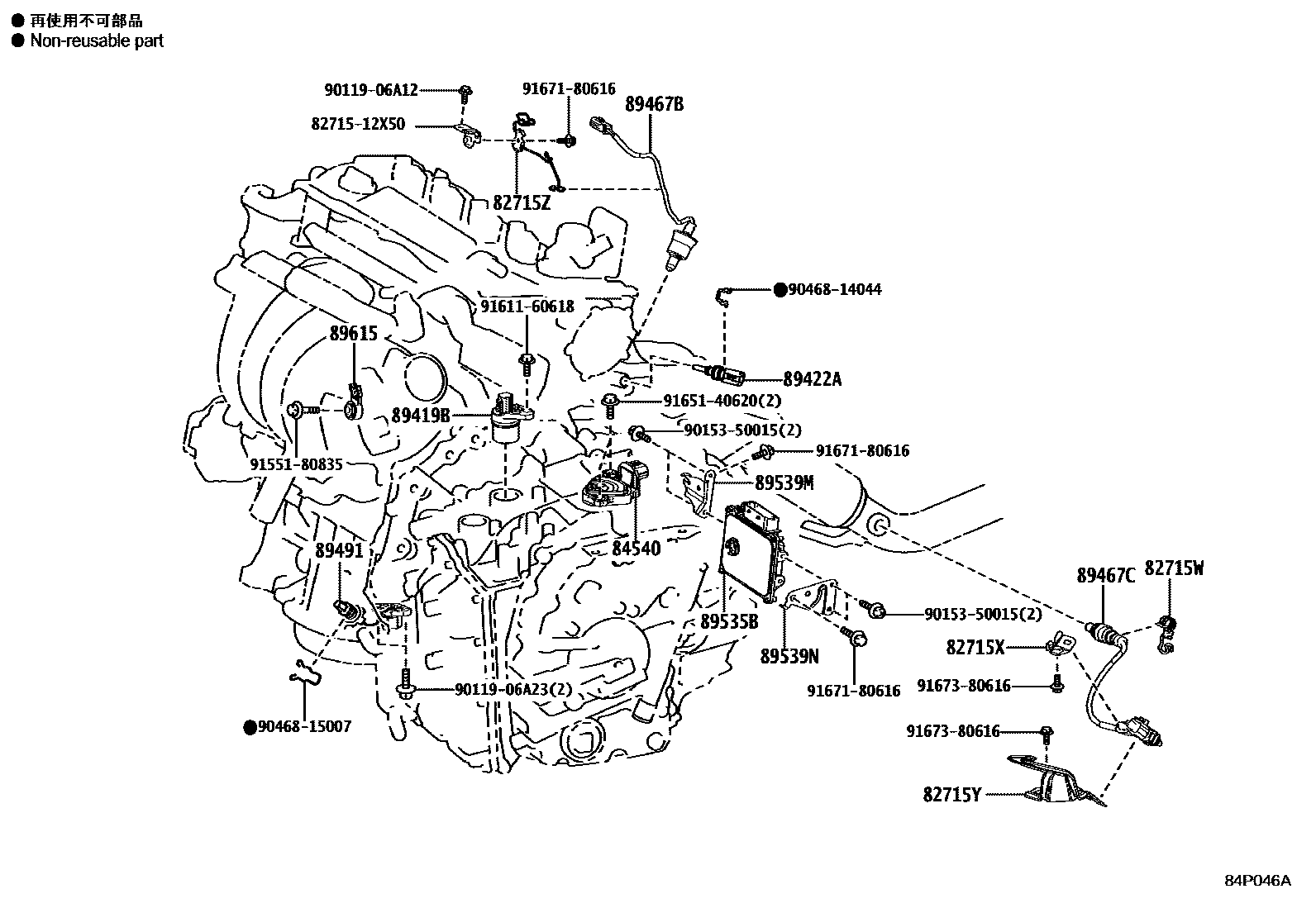

26 parts on this diagram · 18 diagrams in section
