WIRING & CLAMP

0001 1ENGINE ROOM 1/2 0002 1ENGINE ROOM 2/2 0003 1ENGINE ROOM 1/2 0004 1ENGINE ROOM 2/2 0005 1ENGINE ROOM 1/2 0006 1ENGINE ROOM 2/2 0007 1ENGINE ROOM 1/2 0008 1ENGINE ROOM 2/2 0009 1ENGINE ROOM 1/2 0010 1ENGINE ROOM 2/2 0011 1ENGINE 1/2 0012 1ENGINE 2/2 0013 1ENGINE 1/2 0014 1ENGINE 2/2 0015 1ENGINE 1/2 0016 1ENGINE 2/2 0017 1INSTRUMENT PANEL 0018 1INSTRUMENT PANEL 0019 1DOOR 0020 1FLOOR & ROOF 0021 1HIGH TENSION CABLE 0022 1HIGH TENSION CABLE 0023 1HIGH TENSION CABLE 0024 1SEAT 0025 1CLAMP & BRACKET 0026 1CLAMP & BRACKET 0027 1CONNECTOR 1/3 0028 1CONNECTOR 2/3 0029 1CONNECTOR 3/3

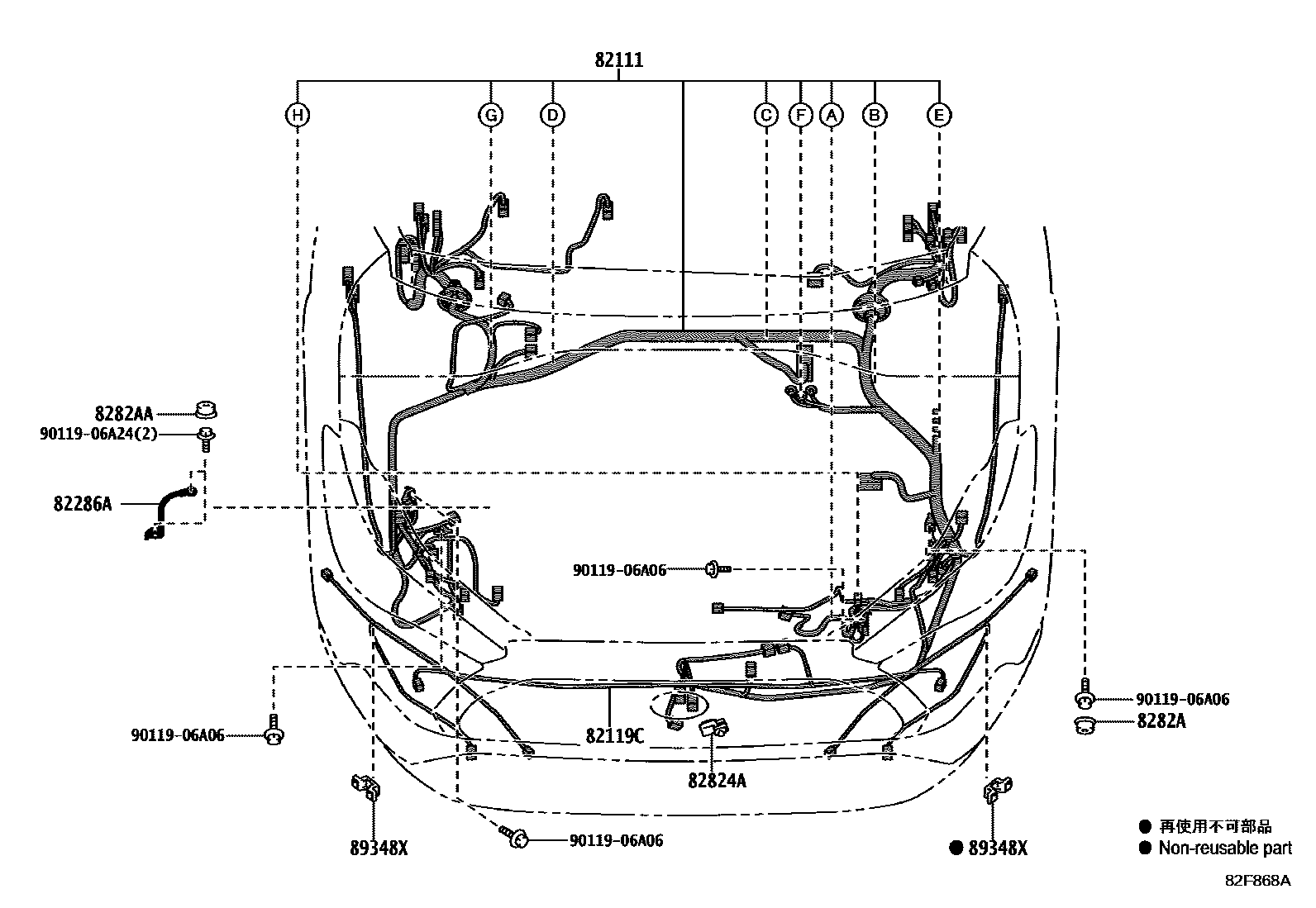

82111WIRE, ENGINE ROOM MAIN

main82111-16A40iMXGA10..E,N202207-202401

main82111-16A60iMXGA10..N202207-202401

HEADLAMP-SINGLE BEAM LED & *AHB

main82111-16B40iMXGH10,15..E..ARL202207-202301

main82111-16B41iMXGH10,15..E..ARL202301-202401

main82111-16B60iMXGH12,15..RHD..(E,G)..EUR202207-202301

main82111-16B61iMXGH10..E202301-202401

HONG KONG SPEC

main82111-16B80iMXGH12,15..RHD..G202207-202301

HEADLAMP-SINGLE BEAM LED & *AHB

main82111-16B81iMXGH12,15..RHD..G202301-202401

HEADLAMP-SINGLE BEAM LED & *AHB

main82111-16B81iMXGH12,15..RHD..N..EUR202301-202401

HONG KONG SPEC

main82111-16D10iZVG12..E,G202207-202301

main82111-16D11iZVG1#..LHD..(E,G)202301-202401

main82111-16D50iZVG12..G202207-202301

HEADLAMP-SINGLE BEAM LED & *AHB

main82111-16D51iZVG1#..LHD..N202301-202401

HEADLAMP-SINGLE BEAM LED & *AHB

main82111-16F40iMXGH12,15..LHD..(E,G)202207-202301

main82111-16F41iMXGH12,15..LHD..(E,G)202301-202401

main82111-16F80iMXGH12,15..LHD..N202207-202301

HEADLAMP-SINGLE BEAM LED & *AHB

main82111-16F81iMXGH12,15..LHD..G202301-202401

HEADLAMP-SINGLE BEAM LED & *AHB

main82111-16J60iMXGH10,15..N..ARL202207-202301

main82111-16J61iMXGH10,15..N..ARL202301-202401

main82111-16J70iMXGH10,15..N..ARL202207-202301

HEADLAMP-SINGLE BEAM LED & *AHB

main82111-16J71iMXGH10..J202301-202401

HEADLAMP-SINGLE BEAM LED & *AHB

main82111-16K00iZVG13..RHD..G202303-202401

main82111-16K10iZVG13..RHD..N202303-202401

HEADLAMP-SINGLE BEAM LED & *AHB

main82111-16L80iMXGA10..E,N202401

main82111-16L90iMXGA10..J202401

main82111-16M00iZVG13..RHD..G202401

main82111-16M10iZVG13..RHD..N202401

main82111-16M20iMXGH10,15..E..ARL202401

main82111-16M30iMXGH12,15..RHD..(E,G)..EUR202401

HONG KONG SPEC

main82111-16M40iMXGH10,15..N..ARL202401

main82111-16M50iMXGH12,15..RHD..N..EUR202401

HONG KONG SPEC

main82111-16M60iMXGH10..J202401

main82111-16M80iZVG1#..LHD..(E,G)202401

main82111-16N00iZVG1#..LHD..N202401

main82111-16N20iMXGH12,15..LHD..(E,G)202401

main82111-16N30iMXGH12,15..LHD..N202401

82119CWIRE, ENGINE ROOM, NO.5

main82119-16020iMXGH10,15..E..ARL202207-202401

BACK MONITOR-WITH(*PVM)

main82119-16030iMXGA10..E,N;MXGH10,15..N..ARL;MXGH12,15,ZVG12..E..EUR202207-202401

BACK MONITOR- WITH(*PVM)&BLIND SPOT MONITOR-WITH

main82119-16030iMXGA10..E,N;MXGH10,15..N..ARL;MXGH12,15,ZVG12..E..EUR202207-202401

PARKING SUPPORT BRAKE-WITH(*RCTB)

main82119-16030iMXGA10..E,N;MXGH10,15..N..ARL;MXGH12,15,ZVG12..E..EUR202207-202401

BLIND SPOT MONITOR-WITH

main82119-16040iMXGA10,MXGH10..J;MXGH12,15,ZVG1#..(G,N)..EUR202207-202401

BLIND SPOT MONITOR-WITHOUT

main82119-16070iMXGH10,15..E..ARL202401

BACK MONITOR-WITH(*PVM)

main82119-16080iMXGA10..E,N;MXGH10,15..N..ARL;MXGH12,15,ZVG12..E..EUR202401

HONG KONG SPEC&BACK MONITOR- WITH(*PVM)

main82119-16080iMXGA10..E,N;MXGH10,15..N..ARL;MXGH12,15,ZVG12..E..EUR202401

PARKING SUPPORT BRAKE-WITH(*RCTB)

main82119-16080iMXGA10..E,N;MXGH10,15..N..ARL;MXGH12,15,ZVG12..E..EUR202401

BACK MONITOR- WITH(*PVM)&BLIND SPOT MONITOR-WITH

main82119-16080iMXGA10..E,N;MXGH10,15..N..ARL;MXGH12,15,ZVG12..E..EUR202401

BLIND SPOT MONITOR-WITH

main82119-16090iMXGA10,MXGH10..J;MXGH12,15,ZVG1#..(G,N)..EUR202401

82286AWIRE, EARTH, NO.2

main82286-12010iMXGA10,MXGH1#¥1,430202207

main82286-47010iZVG1#¥1,430202207

82824ACONNECTOR, WIRING HARNESS

main82824-16130iMXGH12..RHD..G¥550202207

HONG KONG SPEC

main82824-16130iMXGH10..J;MXGA10..E,N¥550202207-202401

main82824-16130iMXGA10..J;MXGH10,15..N..ARL;MXGH12,15..RHD..EUR¥550202207

BACK MONITOR- WITH(*PVM)

main82824-16130iMXGA10..J;MXGH10,15..N..ARL;MXGH12,15..RHD..EUR¥550202207

BLIND SPOT MONITOR-WITH

8282ACAP, EARTH BOLT, NO.1

main8282A-52010iMXGA10,ZVG1#¥60202207

main8282A-52020iMXGH1#202207

8282AACAP, EARTH BOLT, NO.2

main8282A-52010iZVG1#¥60202207

89348XCLIP, ULTRASONIC SENSOR, FRONT

main89348-50050iMXGA10,MXGH1#,ZVG1#¥260202207

9011906A06

main90119-06A06¥60

9011906A24

main90119-06A24¥60

9 parts on this diagram · 29 diagrams in section
