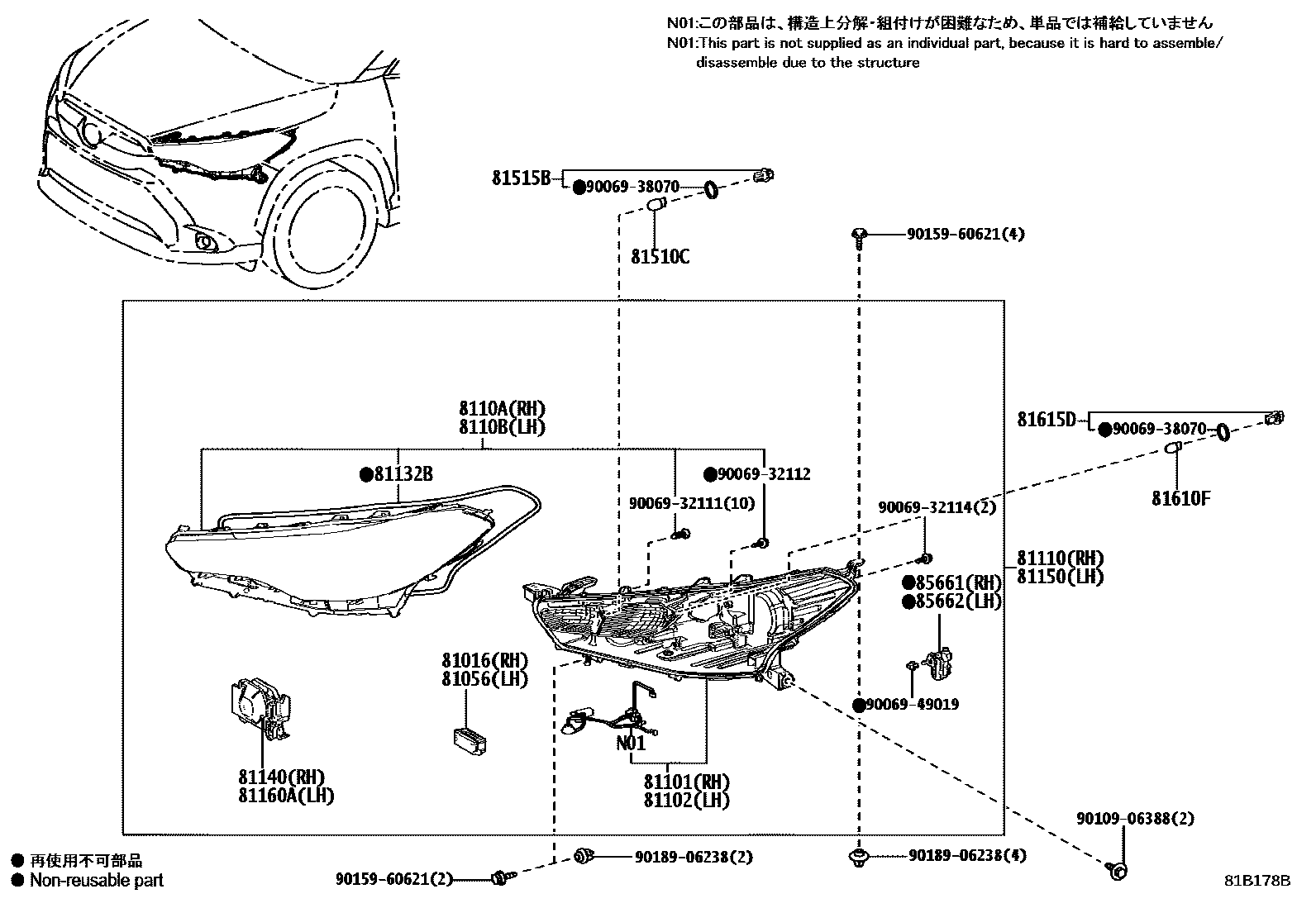

HEADLAMP

0001 1CLEARANCE LAMP = BULB TYPE 0002 1CLEARANCE LAMP = LED TYPE 0003 1CLEARANCE LAMP = LED TYPE

81016COMPUTER SUB-ASSY, HEADLAMP, RH NO.1

main81107-16800iMXGA10,MXGH10..J;MXGH12,15,ZVG1#..N..EUR202207

main81107-16810iMXGH15..N..ARL;MXGA10,MXGH10..E,N;MXGH12,15,ZVG1#..E,G202207

81056COMPUTER SUB-ASSY, HEADLAMP, LH NO.1

main81107-16800iMXGA10,MXGH10..J;MXGH12,15,ZVG1#..N..EUR202207

main81107-16810iMXGH15..N..ARL;MXGA10,MXGH10..E,N;MXGH12,15,ZVG1#..E,G202207

81101HOUSING SUB-ASSY, HEADLAMP, RH

main8111B-16810iMXGH15..N..ARL;MXGA10,MXGH10..E,N;MXGH12,15,ZVG13..RHD..(E,G)202207

main8111B-16820iMXGA10,MXGH10..J;MXGH12,15,ZVG13..RHD..N..EUR202207

main8111B-16830iMXGH12,15,ZVG1#..LHD..N202207

main8111B-16840iMXGH12,15,ZVG1#..LHD..(E,G)202207

81102HOUSING SUB-ASSY, HEADLAMP, LH

main8115B-16810iMXGH15..N..ARL;MXGA10,MXGH10..E,N;MXGH12,15,ZVG13..RHD..(E,G)202207

main8115B-16820iMXGA10,MXGH10..J;MXGH12,15,ZVG13..RHD..N..EUR202207

main8115B-16830iMXGH12,15,ZVG1#..LHD..N202207

main8115B-16840iMXGH12,15,ZVG1#..LHD..(E,G)202207

8110ALENS SUB-ASSY, HEADLAMP, RH

main8110A-16800iMXGA10,MXGH10..J;MXGH12,15,ZVG1#..N..EUR202207

main8110A-16810iMXGH15..N..ARL;MXGA10,MXGH10..E,N;MXGH12,15,ZVG1#..E,G202207

8110BLENS SUB-ASSY, HEADLAMP, LH

main8110B-16800iMXGA10,MXGH10..J;MXGH12,15,ZVG1#..N..EUR202207

main8110B-16810iMXGH15..N..ARL;MXGA10,MXGH10..E,N;MXGH12,15,ZVG1#..E,G202207

81110HEADLAMP ASSY, RH

main81110-16810iMXGH15..N..ARL;MXGA10,MXGH10..E,N;MXGH12,15,ZVG13..RHD..(E,G)202207

main81110-16840iMXGH12,15,ZVG1#..LHD..(E,G)202207

main81130-16820iMXGA10,MXGH10..J;MXGH12,15,ZVG13..RHD..N..EUR202207

main81130-16830iMXGH12,15,ZVG1#..LHD..N202207

81132BGASKET, HEADLAMP LENS

main81132-16800×2iMXGA10,MXGH1#,ZVG1#202207

81140UNIT ASSY, HEADLAMP LED, RH

main81140-16810iMXGH15..N..ARL;MXGA10,MXGH10..E,N;MXGH12,15,ZVG13..RHD..(E,G)202207

main81140-16820iMXGA10,MXGH10..J;MXGH12,15,ZVG13..RHD..N..EUR202207

main81140-16830iMXGH12,15,ZVG1#..LHD..N202207

main81140-16840iMXGH12,15,ZVG1#..LHD..(E,G)202207

81150HEADLAMP ASSY, LH

main81150-16810iMXGH15..N..ARL;MXGA10,MXGH10..E,N;MXGH12,15,ZVG13..RHD..(E,G)202207

main81150-16840iMXGH12,15,ZVG1#..LHD..(E,G)202207

main81170-16820iMXGA10,MXGH10..J;MXGH12,15,ZVG13..RHD..N..EUR202207

main81170-16830iMXGH12,15,ZVG1#..LHD..N202207

81160AUNIT ASSY, HEADLAMP LED, LH

main81160-16810iMXGH15..N..ARL;MXGA10,MXGH10..E,N;MXGH12,15,ZVG13..RHD..(E,G)202207

main81160-16820iMXGA10,MXGH10..J;MXGH12,15,ZVG13..RHD..N..EUR202207

main81160-16830iMXGH12,15,ZVG1#..LHD..N202207

main81160-16840iMXGH12,15,ZVG1#..LHD..(E,G)202207

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-CB006×2iMXGA10,MXGH10..J;MXGH12,15,ZVG1#..N..EUR202207

12V 21W

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90069-81139×2iMXGA10,MXGH10..J;MXGH12,15,ZVG1#..N..EUR202207

81610FBULB(FOR CLEARANCE LAMP)

main90981-CB005×2iMXGA10,MXGH10..J;MXGH12,15,ZVG1#..N..EUR202207

12V 21/5W

81615DSOCKET, CLEARANCE LAMP

main90069-81140×2iMXGA10,MXGH10..J;MXGH12,15,ZVG1#..N..EUR202207

85661MOTOR, HEADLAMP LEVELING, RH

main85661-16020iMXGA10,MXGH1#,ZVG1#202207

85662MOTOR, HEADLAMP LEVELING, LH

main85661-16020iMXGA10,MXGH1#,ZVG1#202207

9006932111

main90069-32111

9006932112

main90069-32112

9006932114

main90069-32114

9006938070

main90069-38070

9006949019

main90069-49019

9010906388

main90109-06388

9015960621

main90159-60621

9018906238

main90189-06238

25 parts on this diagram · 3 diagrams in section
