SEAT BELT & CHILD RESTRAINT SEAT

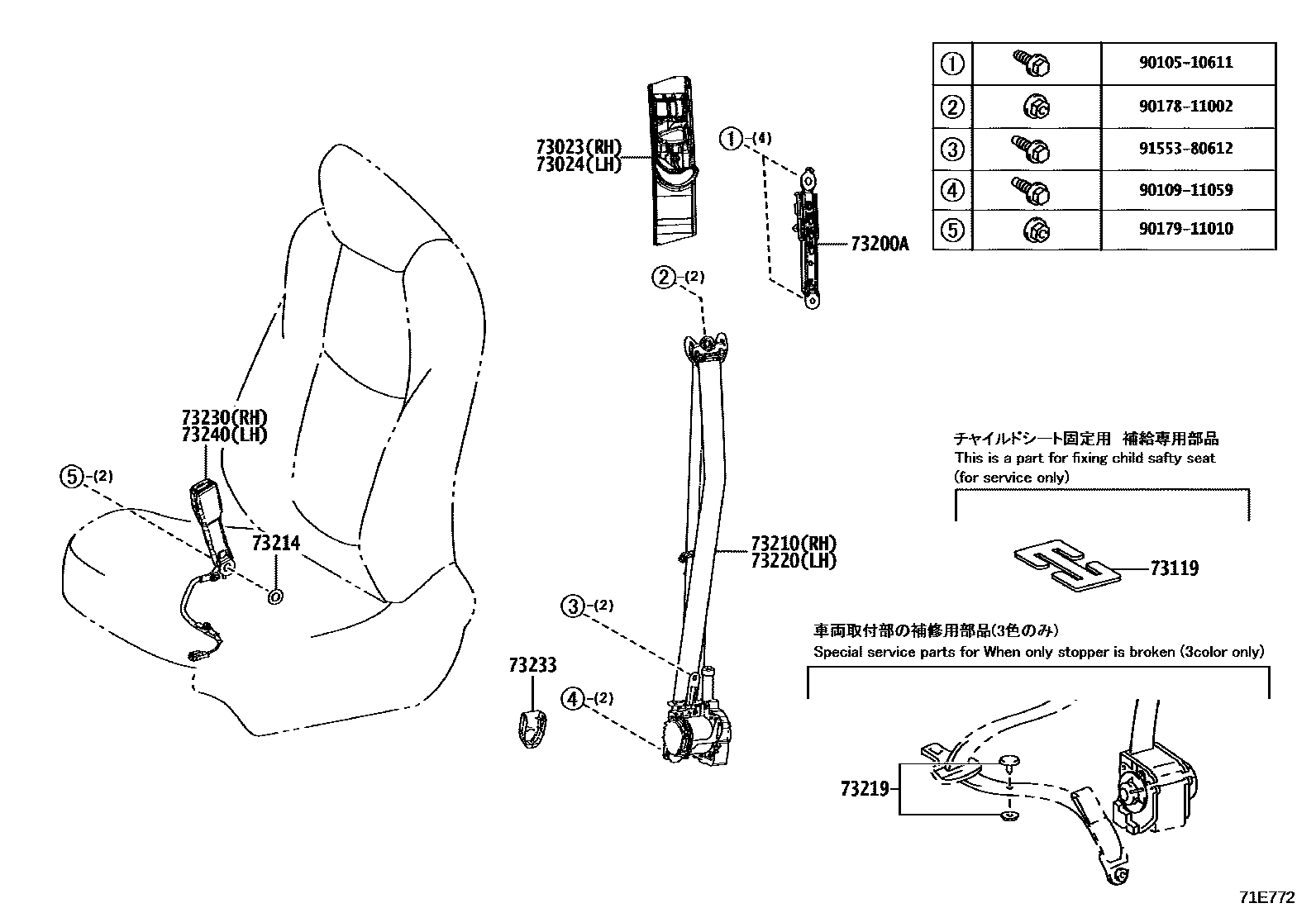

Parts diagram
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
main73023-12030-C0i202207
BLACK,TRIM2#
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
main73024-12020-C0i202207
BLACK,TRIM2#
73119PLATE, SEAT BELT WEBBING CLIP
main73119-22010i202207
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-12070×2i202207
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-47281-C7i202207-202208
BLACK,TRIM2#
main73210-47282-C7i202208
BLACK/BLACK,TRIM1#,2#
73214PLATE, FRONT SEAT BELT ANCHOR
main73214-75010×2i202207
73219STOPPER, TONGUE PLATE
main73219-33010i202207
BLACK
main73219-33020i202207
GRAY
main73219-33030i202207
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-47221-C7i202207-202208
BLACK,TRIM2#
main73220-47222-C7i202208
BLACK/BLACK,TRIM1#,2#
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-16450-C0i202207
BLACK,TRIM1#,2#
main73230-16460-C0i202207
BLACK,TRIM1#,2#
main73230-16470-C0i202207
BLACK,TRIM2#
73233COVER, LAP BELT OUTER ANCHOR
main73233-60020-C1×2i202207
BLACK,TRIM2#
sub73233-35010
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-16450-C0i202207
BLACK,TRIM2#
main73230-16460-C0i202207
BLACK,TRIM1#,2#
main73230-16470-C0i202207-202401
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
9010510611
main90105-10611
9010911059
main90109-11059
9017811002
main90178-11002
9017911010
main90179-11010
9155380612
main91553-80612

16 parts on this diagram · 2 diagrams in section
