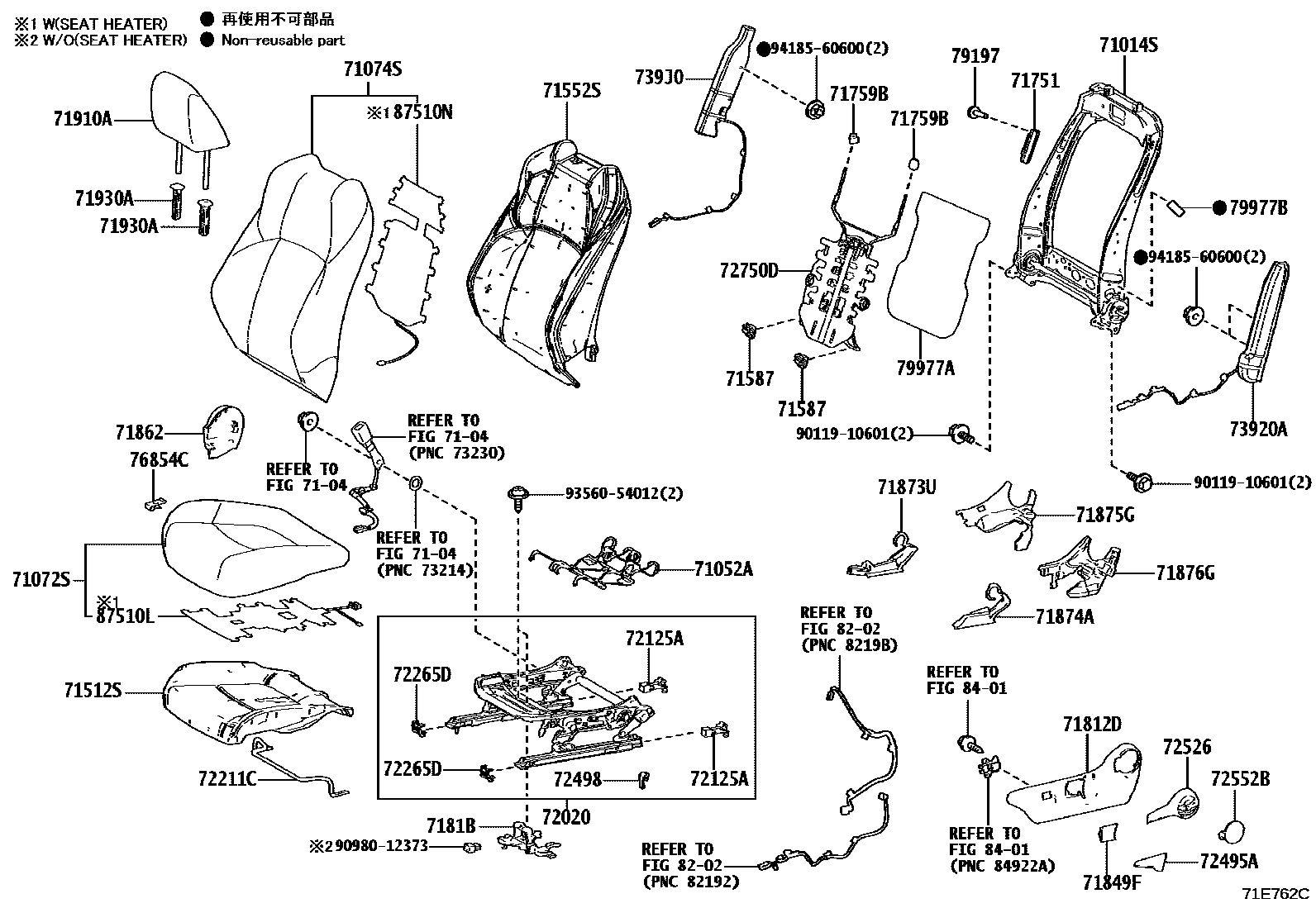

FRONT SEAT & SEAT TRACK

0001 1DRIVER SIDE,MANUAL SEAT 0002 1DRIVER SIDE,POWER SEAT 0003 1DRIVER SIDE,MANUAL SEAT 0004 1DRIVER SIDE,POWER SEAT 0005 1PASSENGER SIDE 0006 1PASSENGER SIDE 0007 1SEAT RAIL

71014SFRAME SUB-ASSY, FRONT SEATBACK, LH

main71014-42190iMXGA10,MXGH1#,ZVG1#¥15,500202207

7104

71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH

main71051-47090iMXGA10,MXGH1#,ZVG1#¥4,110202207

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-16590-B2iMXGA10,MXGH10..J;MXGH12,15,ZVG13..RHD..(G,N)..EUR202207

MD. GRAY,TRIM1#

main71072-16590-C1iMXGA10,MXGH10..J;MXGH12,15,ZVG13..RHD..(G,N)..EUR202207

BLACK,TRIM2#

main71072-16650-B4iMXGH12,15..RHD..E..EUR202207

MD.GRAY,TRIM1#

main71072-16650-B4iMXGH12,15..RHD..E..EUR202207

SEAT COVER MATERIAL-FABRIC & LEATHER&SEAT HEATER-WITH,MD.GRAY,TRIM1#

main71072-16650-C3iMXGH12,15..RHD..E..EUR202207

BLACK,TRIM2#

main71072-16650-C3iMXGH12,15..RHD..E..EUR202207

SEAT COVER MATERIAL-FABRIC & LEATHER&SEAT HEATER-WITH,BLACK,TRIM2#

main71072-16670-B0iMXGH12,15,ZVG1#..LHD..(G,N)202207

MD. GRAY,TRIM1#

main71072-16670-C0iMXGH12,15,ZVG1#..LHD..(G,N)202207

BLACK,TRIM2#

main71072-16700-C1iMXGA10,MXGH10,15..E..ARL202207

SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

main71072-16700-C1iMXGA10,MXGH10,15..E..ARL202207

BLACK,TRIM2#

main71072-16710-C1iMXGA10,MXGH10,15..N..ARL202207

BLACK,TRIM2#

main71072-16720-B1iMXGH12,15,ZVG12..LHD..E202207

MD.GRAY,TRIM1#

main71072-16720-B1iMXGH12,15,ZVG12..LHD..E202207

SEAT COVER MATERIAL-FABRIC & LEATHER&SEAT HEATER-WITH,MD.GRAY,TRIM1#

main71072-16720-C1iMXGH12,15,ZVG12..LHD..E202207

BLACK,TRIM2#

main71072-16720-C1iMXGH12,15,ZVG12..LHD..E202207

SEAT COVER MATERIAL-FABRIC & LEATHER&SEAT HEATER-WITH,BLACK,TRIM2#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-16A00-B2iMXGA10,MXGH10..J;MXGH12,15,ZVG13..RHD..(G,N)..EUR202207

MID. GRAY,TRIM1#

main71074-16A00-C1iMXGA10,MXGH10..J;MXGH12,15,ZVG13..RHD..(G,N)..EUR202207

BLACK,TRIM2#

main71074-16A20-B3iMXGH12,15..RHD..E..EUR202207

MD.GRAY,TRIM1#

main71074-16A20-B3iMXGH12,15..RHD..E..EUR202207

SEAT COVER MATERIAL-FABRIC & LEATHER&SEAT HEATER-WITH,MD.GRAY,TRIM1#

main71074-16A20-C3iMXGH12,15..RHD..E..EUR202207

BLACK,TRIM2#

main71074-16A20-C3iMXGH12,15..RHD..E..EUR202207

SEAT COVER MATERIAL-FABRIC & LEATHER&SEAT HEATER-WITH,BLACK,TRIM2#

main71074-16A60-C2iMXGA10,MXGH10,15..E..ARL202207

BLACK,TRIM2#

main71074-16A60-C2iMXGA10,MXGH10,15..E..ARL202207

SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

main71074-16A70-C1iMXGA10,MXGH10,15..N..ARL202207

BLACK,TRIM2#

main71074-16A80-B1iMXGH12,15,ZVG1#..LHD..G202207

MD.GRAY,TRIM1#

main71074-16A80-B1iMXGH12,15,ZVG12..LHD..E202207

SEAT COVER MATERIAL-FABRIC & LEATHER&SEAT HEATER-WITH,MD.GRAY,TRIM1#

main71074-16A80-C2iMXGH12,15,ZVG12..LHD..E202207

SEAT COVER MATERIAL-FABRIC & LEATHER&SEAT HEATER-WITH,BLACK,TRIM2#

main71074-16A80-C2iMXGH12,15,ZVG1#..LHD..G202207

BLACK,TRIM2#

main71074-16A90-B1iMXGH12,15,ZVG1#..LHD..(G,N)202207

MID. GRAY,TRIM1#

main71074-16A90-C1iMXGH12,15,ZVG1#..LHD..(G,N)202207

BLACK,TRIM2#

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71502-16010iMXGA10,MXGH1#,ZVG13..RHD¥13,200202207

main71512-16040iMXGH12,15,ZVG1#..LHD202207

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-12710iMXGA10,MXGH1#,ZVG13..RHD¥10,000202207

main71552-16070iMXGH12,15,ZVG1#..LHD202207

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-47010iMXGA10,MXGH1#,ZVG1#¥200202207

71751HANGER, SEAT COVER

main71751-47050iMXGA10,MXGH1#,ZVG1#¥530202207

71759BHOOK, FRONT SEATBACK

main71759-50040iMXGA10,MXGH1#,ZVG1#¥130202207

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-33430-C0iMXGA10,MXGH10,15..E..ARL202207

BLACK,TRIM2#

main71812-33430-C0iMXGA10,MXGH10,15..E..ARL202207

BLACK,TRIM1#,2#

main71812-47160-C1iMXGH12,15,ZVG1#..LHD202207

BLACK,TRIM1#,2#

sub71812-47160

7181BHOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH

main7181B-47010iMXGA10,MXGH1#,ZVG1#¥1,220202207

71849FCAP, SEAT ADJUSTER COVER, LH(FOR LH SEAT)

main71849-12020-C0iMXGH12,15,ZVG1#..LHD202309

BLACK,TRIM1#,2#

main71849-47010-C1iMXGH12,15,ZVG1#..LHD202207-202309

BLACK,TRIM1#,2#

sub71849-47010¥370

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-47090-C1iMXGH12,15,ZVG1#..LHD202207

BLACK,TRIM1#,2#

sub71862-47090¥1,090

main71862-47100-C1iMXGA10,MXGH10,15..E..ARL202207

BLACK,TRIM2#

sub71862-47100¥1,760

main71862-47100-C1iMXGA10,MXGH10,15..E..ARL202207

BLACK,TRIM1#,2#

sub71862-47100¥1,760

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-47070iMXGA10,MXGH1#,ZVG13..RHD¥740202207

71873USHIELD, FRONT SEAT CUSHION, LOWER RH

main71874-47080iMXGH12,15,ZVG1#..LHD¥920202207

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71873-47080iMXGA10,MXGH1#,ZVG13..RHD¥920202207

71874ASHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-47070iMXGH12,15,ZVG1#..LHD¥740202207

71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

main71876-47080-C1iMXGH12,15,ZVG1#..LHD202207

BLACK,TRIM1#,2#

sub71876-47080¥1,090

main71876-47090-C1iMXGA10,MXGH10,15..E..ARL202207

BLACK,TRIM2#

sub71876-47090¥1,860

main71876-47090-C1iMXGA10,MXGH10,15..E..ARL202207

BLACK,TRIM1#,2#

sub71876-47090¥1,860

71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

main71876-47040-C1iMXGH12,15,ZVG1#..LHD202207

BLACK,TRIM1#,2#

sub71876-47040¥1,170

main71876-47070-C1iMXGH15..N..ARL;MXGH12,15..RHD..EUR;MXGA10,MXGH10,ZVG13..RHD..(G,J,N)202207

BLACK,TRIM1#,2#

sub71876-47070¥1,860

main71876-47070-C1iMXGA10,MXGH10,15..E..ARL202207

BLACK,TRIM2#

sub71876-47070¥1,860

71910AHEADREST ASSY, FRONT SEAT

main71910-16690-B1iMXGA10,MXGH10..J;MXGH12,15,ZVG1#..(G,N)..EUR202207

MID. GRAY,TRIM1#

main71910-16690-C1iMXGA10,MXGH10..J;MXGH12,15,ZVG1#..(G,N)..EUR202207

BLACK,TRIM2#

main71910-16700-B0iMXGH12,15,ZVG12..E..EUR202207

SEAT COVER MATERIAL-FABRIC & LEATHER&SEAT HEATER-WITH,MD.GRAY,TRIM1#

main71910-16700-B0iMXGH12,15,ZVG12..E..EUR202207

MD.GRAY,TRIM1#

main71910-16700-C1iMXGH12,15,ZVG1#..G202207

BLACK,TRIM2#

main71910-16700-C1iMXGH15..N..ARL;MXGH12,15,ZVG12..E;MXGA10,MXGH10..E,N202207

SEAT COVER MATERIAL-FABRIC & LEATHER&SEAT HEATER-WITH,BLACK,TRIM2#

71930ASUPPORT ASSY, FRONT SEAT HEADREST

main71930-47050-C5iMXGA10,MXGH1#,ZVG1#202207

W(LOCK),BLACK,TRIM2#

main71930-47050-P0iMXGA10,MXGH10..J;MXGH12,15,ZVG1#..EUR202207

W(LOCK),MD. GRAY,TRIM1#

main71931-47030-C4iMXGA10,MXGH1#,ZVG1#202207

W/O(LOCK),BLACK,TRIM2#

main71931-47030-P1iMXGA10,MXGH10..J;MXGH12,15,ZVG1#..EUR202207

W/O(LOCK),MD. GRAY,TRIM1#

72020ADJUSTER ASSY, FRONT SEAT, LH

main72020-47361iMXGH12,15,ZVG1#..LHD¥23,900202207

main72020-47381iMXGA10,MXGH1#,ZVG13..RHD¥19,200202207

72125ACOVER, SEAT TRACK, UPPER REAR

main72125-47010iMXGH12,15,ZVG12..LHD..E¥450202207

SEAT COVER MATERIAL-LEATHER,FOR RH SEAT

main72125-47010iMXGA10,MXGH10,15..E..ARL¥450202207

FOR LH SEAT

main72125-47010iMXGA10,MXGH10,15..E..ARL¥450202207

SEAT COVER MATERIAL-LEATHER,FOR LH SEAT

main72125-47020iMXGA10,MXGH10,15..E..ARL¥160202207

FOR RH SEAT

sub72125-47010¥450

main72125-47020iMXGA10,MXGH10,15..E..ARL¥160202207

SEAT COVER MATERIAL-LEATHER,FOR RH SEAT

sub72125-47010¥450

main72125-47020iMXGA10,MXGH10,15..E..ARL¥160202207

SEAT COVER MATERIAL-LEATHER,FOR LH SEAT

sub72125-47010¥450

72211CHANDLE, SEAT TRACK ADJUSTING

main72211-47050iMXGA10,MXGH10,15..E..ARL¥990202207

SEAT COVER MATERIAL-LEATHER

72265DCOVER, SEAT TRACK UPPER RAIL

main72265-47010iMXGA10,MXGH10,15..E..ARL¥160202207

FOR LH SEAT

main72265-47010iMXGA10,MXGH10,15..E..ARL¥160202207

SEAT COVER MATERIAL-LEATHER,FOR LH SEAT

main72265-47010iMXGA10,MXGH10,15..E..ARL¥160202207

SEAT COVER MATERIAL-LEATHER,FOR RH SEAT

main72265-47020iMXGH12,15,ZVG12..LHD..E¥160202207

SEAT COVER MATERIAL-LEATHER,FOR LH SEAT

main72265-47020iMXGA10,MXGH10,15..E..ARL¥160202207

FOR RH SEAT

main72265-47020iMXGA10,MXGH10,15..E..ARL¥160202207

SEAT COVER MATERIAL-LEATHER,FOR RH SEAT

72495AHANDLE, FRONT SEAT VERTICAL ADJUSTER, LH

main72495-10010-C0iMXGH12,15,ZVG1#..LHD202207-202309

BLACK,TRIM1#,2#

sub72495-16010¥590

main72495-16010-C0iMXGH12,15,ZVG1#..LHD202309

BLACK,TRIM1#,2#

72498COVER, VERTICAL ADJUSTER BRACKET

main72498-47010iMXGH15..N..ARL;MXGH12,15..RHD..EUR;MXGA10,MXGH10,ZVG13..RHD..(G,J,N)¥90202207

main72498-47020iMXGH12,15,ZVG1#..LHD¥90202207

72526HANDLE, RECLINING ADJUSTER RELEASE, LH

main72526-16020-C0iMXGA10,MXGH10,15..(E,N)..ARL202207

BLACK,TRIM2#

main72526-16020-C0iMXGA10,MXGH10,15..(E,N)..ARL202207

BLACK,TRIM1#,2#

72552BCOVER, RECLINING HINGE, LH

main72551-47030-C1iMXGA10,MXGH10,15..(E,N)..ARL202207

BLACK,TRIM2#

sub72551-47030¥650

main72551-47030-C1iMXGA10,MXGH10,15..(E,N)..ARL202207

BLACK,TRIM1#,2#

sub72551-47030¥650

72750DADJUSTER ASSY, LUMBAR SUPPORT, RH

main72750-33140iMXGA10,MXGH1#,ZVG1#¥20,300202207

73920AAIRBAG ASSY, FRONT SEAT, LH

main73920-16010iMXGA10,MXGH1#,ZVG1#¥20,000202207

739J0AIRBAG ASSY, FRONT SEAT CENTER, LH

main739J0-16020iMXGH12,15,ZVG1#..LHD202207

76854CRETAINER, FRONT SEAT CUSHION COVER

main76854-44010iMXGA10,MXGH1#,ZVG1#¥40202406

79197HOOK, SEATBACK COVER

main79197-47010iMXGA10,MXGH1#,ZVG1#¥70202207

79977AFELT, SEATBACK

main79977-76010iMXGA10,MXGH1#,ZVG1#¥1,080202207

79977BFELT, SEATBACK FRAME

main79977-12090iMXGA10,MXGH10,15..E..ARL¥540202207

SEAT COVER MATERIAL-LEATHER

8202

8401

87510LHEATER ASSY, FRONT SEAT CUSHION, LH

main87510-12390iMXGH12,15,ZVG12..LHD..E¥7,500202207

SEAT COVER MATERIAL-FABRIC & LEATHER&SEAT HEATER-WITH

main87510-12390iMXGH12,15,ZVG12..LHD..E¥7,500202207

SEAT HEATER-WITH

main87510-12420iMXGA10,MXGH1#..RHD..E¥7,500202207

SEAT COVER MATERIAL-FABRIC & LEATHER&SEAT HEATER-WITH

main87510-12420iMXGA10,MXGH1#..RHD..E¥7,500202207

SEAT HEATER-WITH

87510NHEATER ASSY, FRONT SEATBACK, LH

main87530-12090iMXGA10,MXGH1#,ZVG12..E¥7,500202207

SEAT COVER MATERIAL-FABRIC & LEATHER&SEAT HEATER-WITH

main87530-12090iMXGA10,MXGH1#,ZVG12..E¥7,500202207

SEAT HEATER-WITH

9011910601

main90119-10601¥90

9098012373

main90980-12373¥260

9356054012

main93560-54012¥60

9418560600

main94185-60600¥70

45 parts on this diagram · 7 diagrams in section
