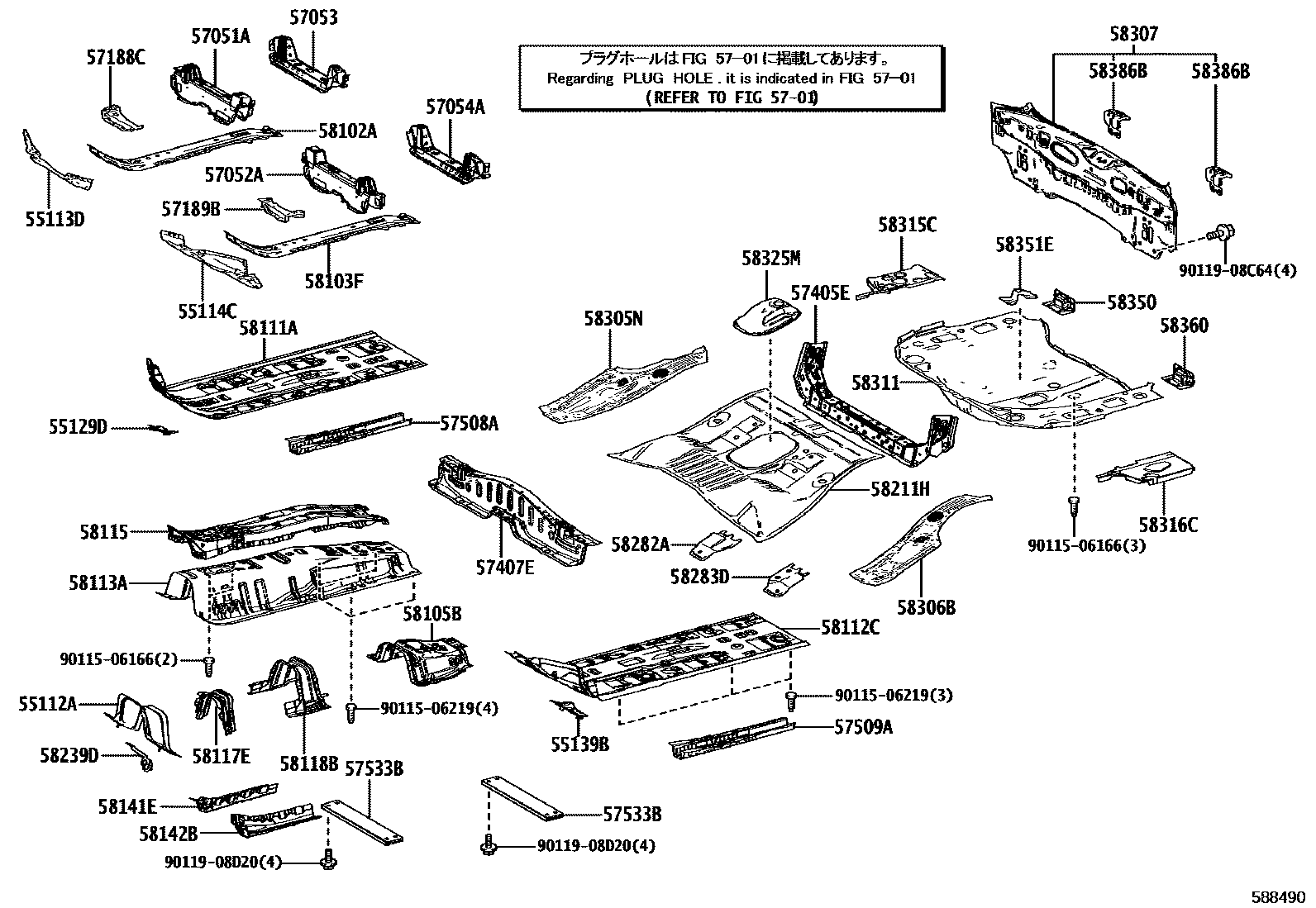

FLOOR PAN & LOWER BACK PANEL
55112APANEL, DASH, NO.2
55113DPANEL, DASH, LOWER RH
55114CPANEL, DASH, LOWER LH
55129DCOVER, DASH PANEL HOLE, RH
55139BCOVER, DASH PANEL HOLE, LH
5701
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57188CREINFORCEMENT, FRONT SIDE MEMBER EXTENSION, RH
57189BREINFORCEMENT, FRONT SIDE MEMBER EXTENSION, LH
57405EMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2
57407EMEMBER SUB-ASSY, CENTER FLOOR CROSS
57508AREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH
57509AREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH
57533BBRACE, FRONT FLOOR, CENTER
58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR
58103FREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH
58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB
58111APAN, FRONT FLOOR, RH
58112CPAN, FRONT FLOOR, LH
58113APANEL, FRONT FLOOR, CENTER
58115REINFORCEMENT, FRONT FLOOR PANEL, FRONT
58117EPANEL, FRONT FLOOR SUB COVER
58118BREINFORCEMENT, FRONT FLOOR PANEL, NO.2
58141EREINFORCEMENT, FRONT SIDE MEMBER TO FLOOR PAN, RH
58142BREINFORCEMNET, FRONT SIDE MEMBER TO FLOOR PAN, LH
58211HPAN, CENTER FLOOR
58239DBRACKET, CABLE CLAMP
58282ABASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH
58283DBASE, BELT ANCHOR TO FLOOR PAN, NO.3 LH
58305NEXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, RH
58306BEXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, LH
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58315CEXTENSION, REAR FLOOR SIDE PANEL, RH
58316CEXTENSION, REAR FLOOR SIDE PANEL, LH
58325MCOVER, REAR FLOOR SERVICE HOLE, NO.1
58350REINFORCEMENT ASSY, REAR FLOOR PANEL, RH
58351EBRACKET, SPARE WHEEL CLAMP
58360REINFORCEMENT ASSY, REAR FLOOR PANEL, LH
58386BBRACKET, REAR BUMPER COVER, NO.2
9011506166
9011506219
9011908C64
9011908D20
47 parts on this diagram · 6 diagrams in section
