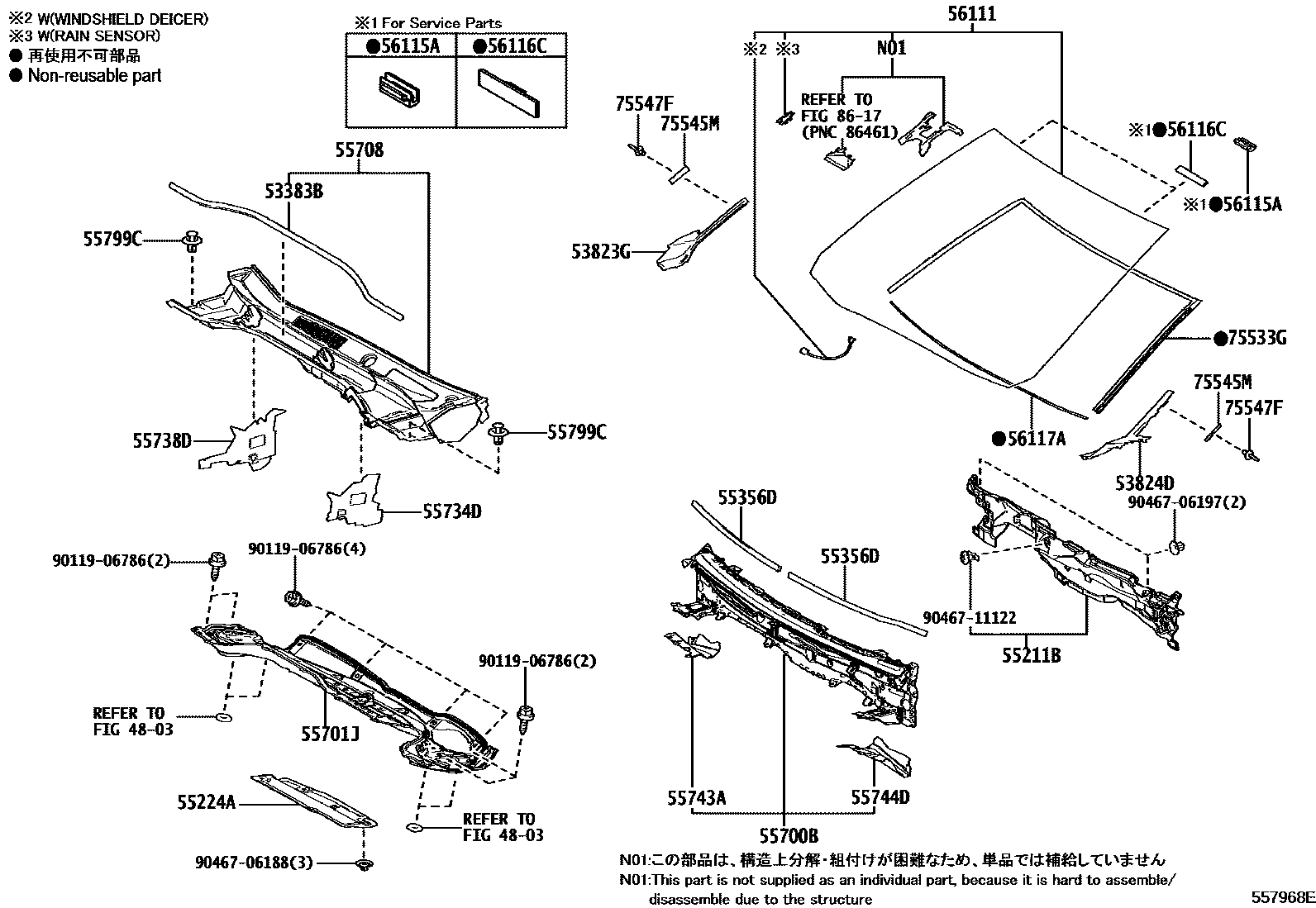

COWL PANEL & WINDSHIELD GLASS
4803
53383BSEAL, HOOD TO COWL TOP
53823GPROTECTOR, FRONT SIDE PANEL, NO.2 RH
53824DPROTECTOR, FRONT SIDE PANEL, NO.2 LH
55211BSILENCER, FRONT PANEL
55224AINSULATOR, DASH PANEL, OUTER NO.2
55356DCUSHION, INSTRUMENT PANEL, NO.2
55700BCOWL ASSY
55701JPANEL SUB-ASSY, COWL TOP, OUTER
55708LOUVER SUB-ASSY, COWL TOP VENTILATOR
55734DPLATE, WATER GUARD
55738DSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2
55743AEXTENSION, COWL TO COWL SIDE, RH
55744DEXTENSION, COWL TO COWL SIDE, LH
55799CCLIP, COWL TOP VENTILATOR LOUVER
56111GLASS, WINDSHIELD
WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)
WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
*D,L=1314
*D,L=1314,COLD AREA SPEC-WITH
*D,L=1314,FINLAND, NORWAY, SWEDEN, DENMARK SPEC&COLD AREA SPEC-WITH
*D,L=1314,FINLAND, NORWAY, SWEDEN, DENMARK SPEC&COLD AREA SPEC-WITH&WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)
*D,L=1314,UKRAINE SPEC&COLD AREA SPEC-WITH
*D,L=1314,UKRAINE SPEC&COLD AREA SPEC-WITH&WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)
*D,L=1314,UKRAINE,MOLDOVA SPEC&COLD AREA SPEC-WITH
*D,L=1314,UKRAINE,MOLDOVA SPEC&COLD AREA SPEC-WITH&WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)
*D,L=1314,OTHER WVTA W/ RSA SPEC&COLD AREA SPEC-WITH
*D,L=1314,OTHER WVTA W/ RSA SPEC&COLD AREA SPEC-WITH&WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)
*D,L=1314,GEORGIA,AZERBAIJAN SPEC&COLD AREA SPEC-WITH
*D,L=1314,GEORGIA,AZERBAIJAN SPEC&COLD AREA SPEC-WITH&WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)
*D,L=1314,COLD AREA SPEC-WITH&WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)
*D,L=1314,WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)
75533GMOULDING, WINDSHIELD, OUTSIDE
75545MCLIP, WINDSHIELD OUTSIDE MOULDING
75547FCLIP, WINDSHIELD OUTSIDE MOULDING
8617
9011906786
9046706188
9046706197
9046711122
27 parts on this diagram · 2 diagrams in section
