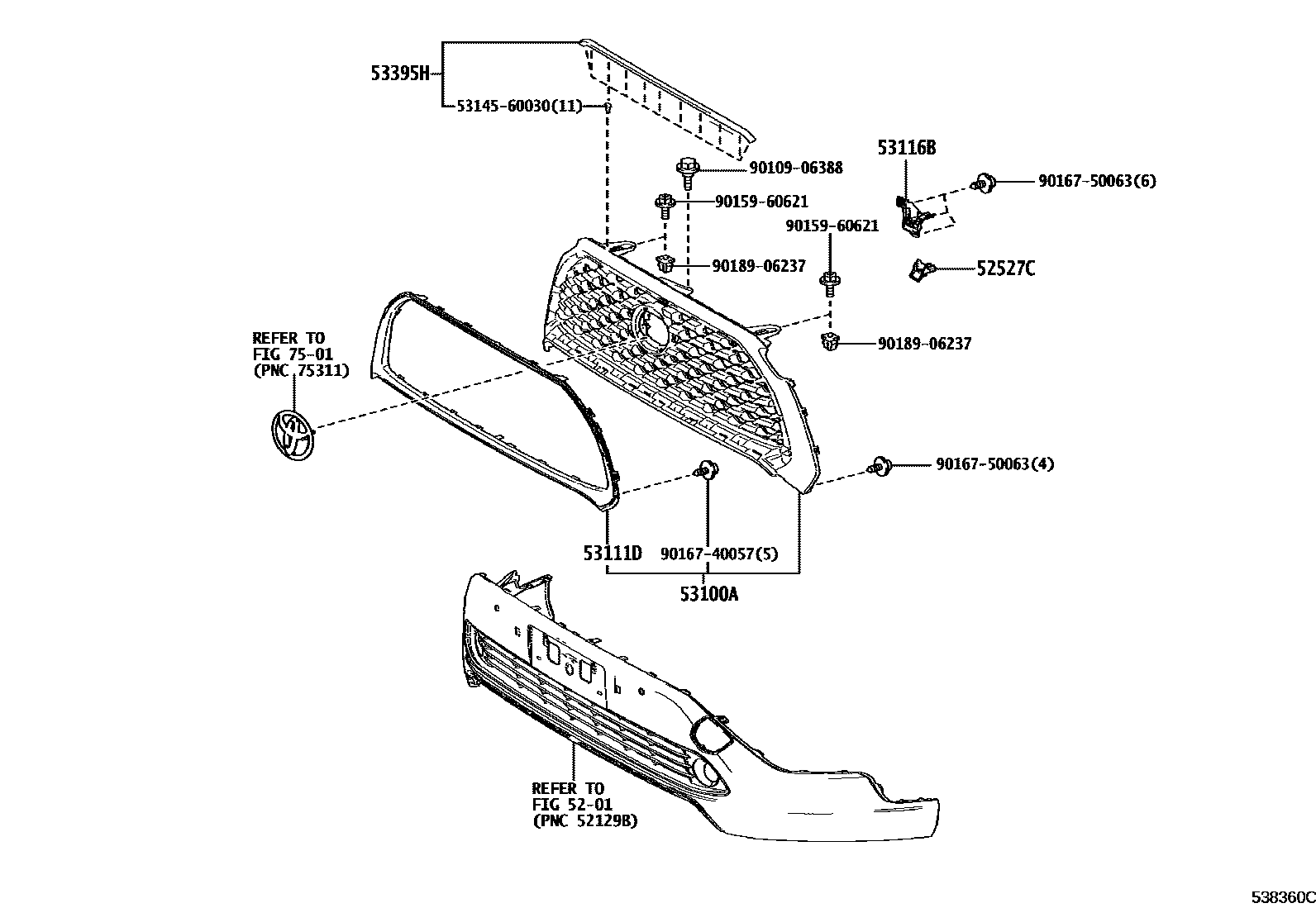

RADIATOR GRILLE

5201

52527CRETAINER, FRONT BUMPER, LOWER NO.2

main52527-12060iMXGA10,MXGH1#,ZVG1#202207

53100AGRILLE ASSY, RADIATOR

main53100-16010iMXGA10,MXGH10..J;MXGH12,15,ZVG1#..N..EUR202207

main53100-16020iMXGA10..E,N202207-202401

main53100-16030iMXGH10,15..E..ARL202207

BACK MONITOR-WITH(*PVM)

main53100-16030iMXGH10,15..N..ARL202207-202401

BACK MONITOR- WITH(*PVM)

main53100-16030iMXGH10,15..N..ARL202207

BACK MONITOR- WITH(*PVM)&BLIND SPOT MONITOR-WITH

main53100-16030iMXGA10..E,N202401

main53100-16040iMXGA10,MXGH10..J202211

HONG KONG SPEC&PARKING SUPPORT BRAKE-WITHOUT

53111DMOULDING, RADIATOR GRILLE, RH

main53121-16080iMXGA10,MXGH10..J;MXGH12,15,ZVG1#..N..EUR202207

main53121-16090iMXGH15..N..ARL;MXGA10,MXGH10..E,N;MXGH12,15,ZVG1#..E,G202207

53116BBRACKET, RADIATOR GRILLE, NO.2

main53116-16030iMXGA10,MXGH1#,ZVG1#202207

53395HSEAL, HOOD TO RADIATOR GRILLE

main53395-16020iMXGA10,MXGH1#,ZVG1#202207

7501

5314560030BRACKET,RADIATOR GRILLE MOUNTING, RH

main53145-60030

9010906388

main90109-06388

9015960621

main90159-60621

9016740057

main90167-40057

9016750063

main90167-50063

9018906237

main90189-06237

13 parts on this diagram · 1 diagram in section
