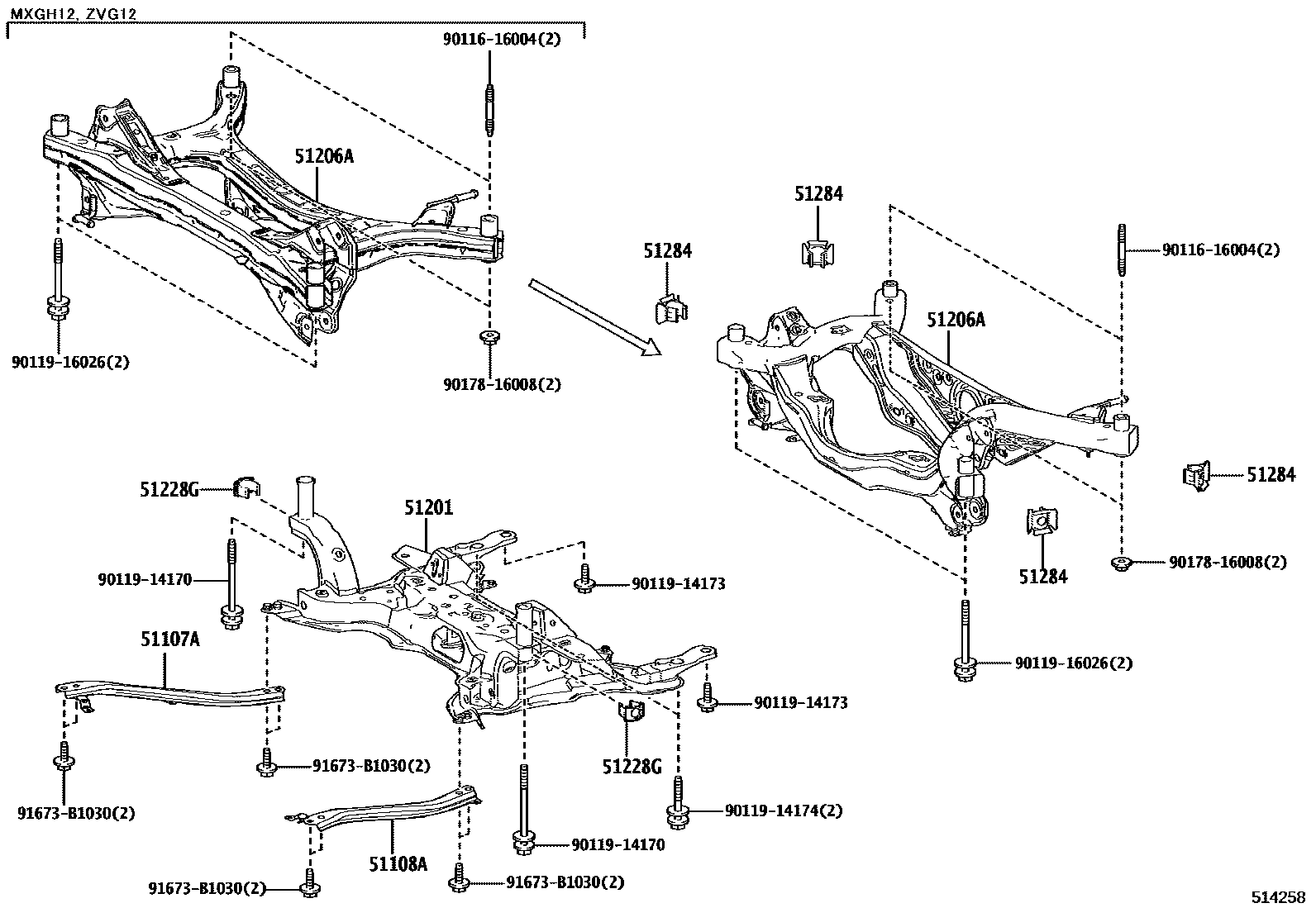

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION CROSSMEMBER 0002 1UNDER COVER

51107AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR RH

main51107-12040iMXGA10,MXGH1#,ZVG1#¥3,190202207

51108AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR LH

main51108-12040iMXGA10,MXGH1#,ZVG1#¥3,190202207

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-76032iMXGA10,MXGH1#,ZVG1#¥54,000202207

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-16040iMXGH15202207-202208

main51206-16041iMXGH15¥52,200202208

main51206-16050iMXGH12,ZVG12202207

51228GPLATE, FRONT SUSPENSION MEMBER

main51228-47010iMXGA10,MXGH1#,ZVG1#¥220202207

51284COVER, REAR SUSPENSION MEMBER HOLE

main51284-47010iMXGH15¥340202207-202208

9011616004

main90116-16004¥610

9011914170

main90119-14170¥490

9011914173

main90119-14173¥310

9011914174

main90119-14174¥360

9011916026

main90119-16026¥610

9017816008

main90178-16008¥190

91673B1030

main91673-B1030¥120

13 parts on this diagram · 2 diagrams in section
