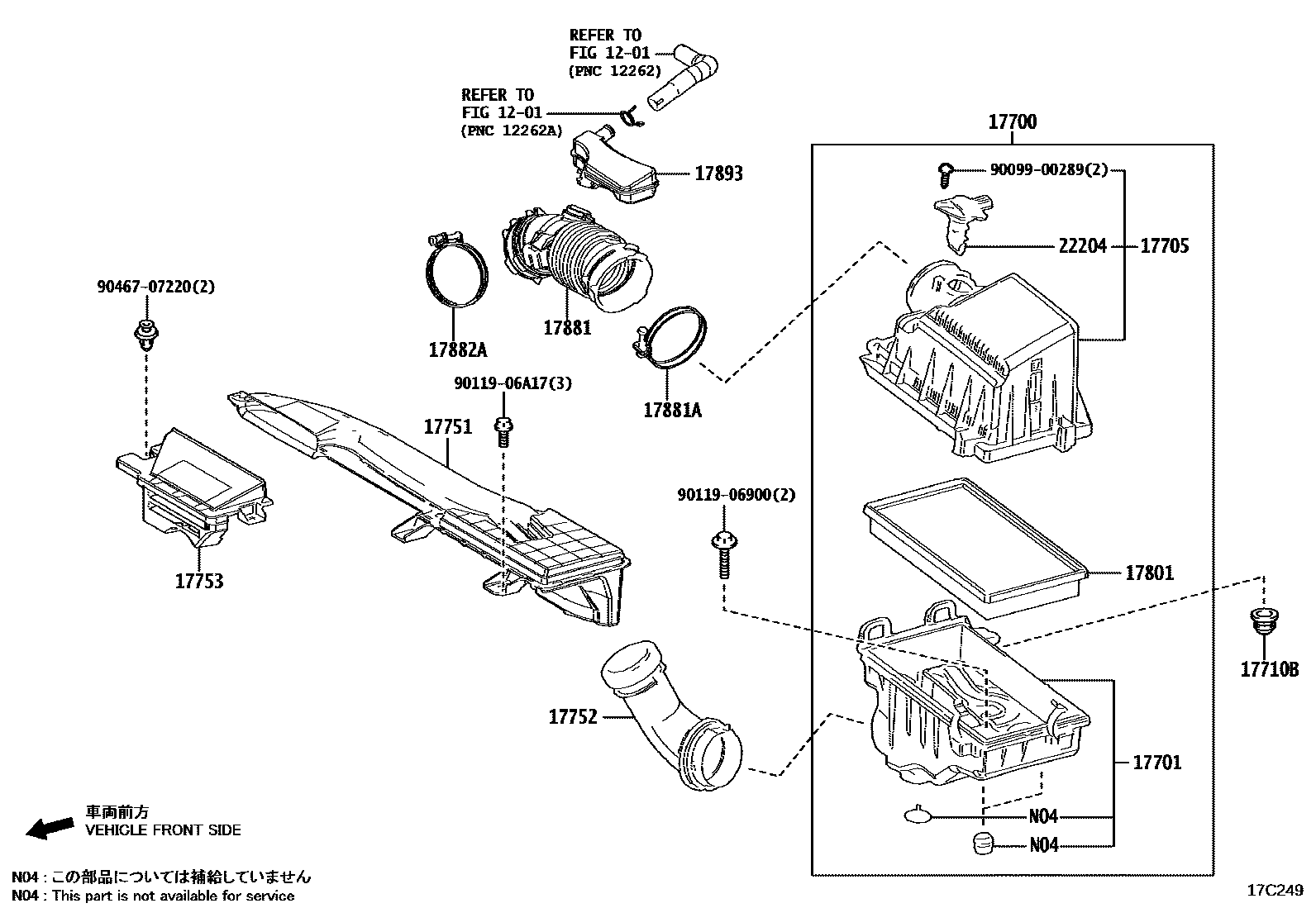

AIR CLEANER

0001 1 0002 1 0003 1

1201

17700CLEANER ASSY, AIR

main17700-24630iM20AFKS..MXGA10202207

main17700-24640iM20AFXS..MXGH1#202207

main17700-37410i2ZRFXE..ZVG1#202207

17701CASE SUB-ASSY, AIR CLEANER

main17701-24440iM20AFKS..MXGA10202207

main17701-24460iM20AFXS..MXGH1#202207

main17701-V1010i2ZRFXE..ZVG1#202207

17705CAP SUB-ASSY, AIR CLEANER

main17705-24340iM20AFKS..MXGA10202207

main17705-24360iM20AFXS..MXGH1#202207

main17705-V1010i2ZRFXE..ZVG1#202207

17710BGROMMET

main90480-18006iM20AFKS..MXGA10202207

17751INLET, AIR CLEANER, NO.1

main17751-24040iM20AFXS..MXGH1#202207

main17751-24050iM20AFKS..MXGA10202207

main17751-37170i2ZRFXE..ZVG1#202207

17752INLET, AIR CLEANER, NO.2

main17752-24050iM20AFKS..MXGA10202207

main17752-24070iM20AFXS..MXGH1#202207

main17752-37190i2ZRFXE..ZVG1#202207

17753INLET, AIR CLEANER, NO.3

main17753-24030iM20#..MXGA10,MXGH1#202207

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-21060i2ZRFXE..ZVG1#202207

main17801-24040iM20AFXS..MXGH1#202207

main17801-77050iM20AFKS..MXGA10202207

17881HOSE, AIR CLEANER, NO.1

main17881-24050iM20AFKS..MXGA10202207

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10650i2ZRFXE..ZVG1#202207

main96111-10730iM20AFXS..MXGH1#202207

main96111-10850iM20AFKS..MXGA10202207

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main96111-10800iM20#..MXGA10,MXGH1#202207

17893RESONATOR, INTAKE AIR

main17893-24020iM20AFKS..MXGA10202207

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-24010iM20AFXS..MXGH1#202207

main22204-75040iM20AFKS..MXGA10202207

9009900289

main90099-00289

9011906900

main90119-06900

9011906A17

main90119-06A17

9046707220

main90467-07220

18 parts on this diagram · 3 diagrams in section
