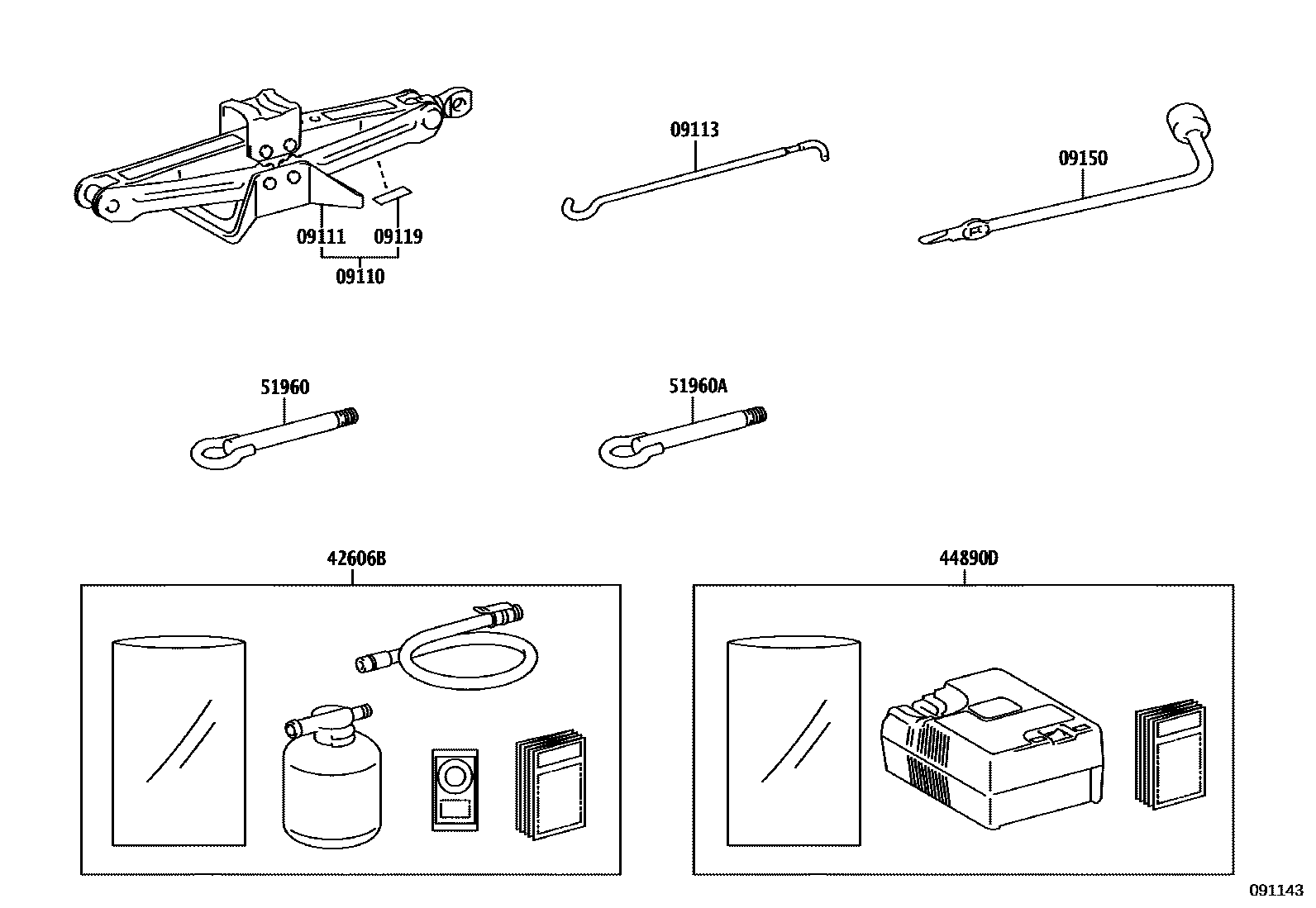

STANDARD TOOL
09110JACK ASSY
09111JACK SUB-ASSY
JACK-WITH
09113HANDLE, JACK
JACK-WITH
09119LABEL, JACK CAUTION
09150WRENCH, HUB NUT BOX
JACK-WITH
42606BREPAIR KIT, TUBELESS TIRE
SPARE TIRE-TEMPORARY(T155/70D17)
FRANCE SPEC&SPARE TIRE-TEMPORARY, ROUGH RORD SPEC(T155/70D17)
FINLAND, NORWAY, SWEDEN, DENMARK SPEC&SPARE TIRE-TEMPORARY, ROUGH RORD SPEC(T155/70D17)
UKRAINE SPEC&SPARE TIRE-TEMPORARY, ROUGH RORD SPEC(T155/70D17)
UKRAINE,MOLDOVA SPEC&SPARE TIRE-TEMPORARY, ROUGH RORD SPEC(T155/70D17)
TURKEY SPEC&SPARE TIRE-TEMPORARY, ROUGH RORD SPEC(T155/70D17)
OTHER WVTA W/ RSA SPEC&SPARE TIRE-TEMPORARY, ROUGH RORD SPEC(T155/70D17)
GEORGIA,AZERBAIJAN SPEC&SPARE TIRE-TEMPORARY, ROUGH RORD SPEC(T155/70D17)
44890DCOMPRESSOR ASSY, AIR
51960HOOK ASSY, FRONT
51960AHOOK ASSY, REAR
9 parts on this diagram · 1 diagram in section
