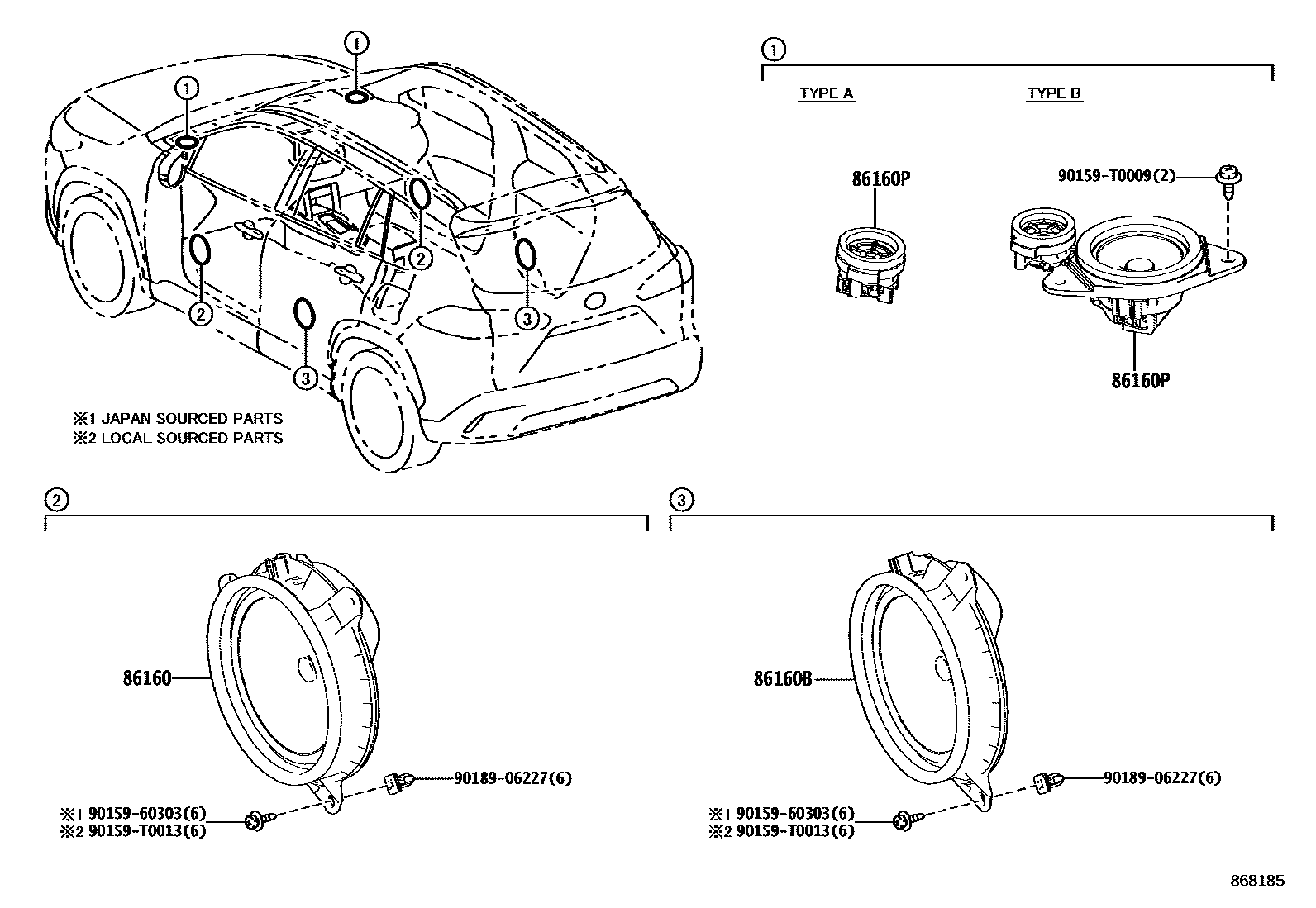

SPEAKER
86160SPEAKER ASSY, FRONT NO.1
86160BSPEAKER ASSY, REAR
main86160-02D30×2iZSG10..GCC,GEN,PH,SA,TAIW,TH,VN;ZVG10..(SAP,THP,TWP)..(GCC,GEN,IDN,PH,SA,TAIW,TH,VN)202007-202311
86160PSPEAKER ASSY, FRONT NO.2
TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
AUDIO-*DA(8INCH) & 6SPEAKER&DATA COMMUNICATION MODULE-WITH,TYPE B:REFER ILLUST.
9015960303
main90159-60303
90159T0009
main90159-T0009
90159T0013
main90159-T0013
9018906227
main90189-06227
7 parts on this diagram · 1 diagram in section
