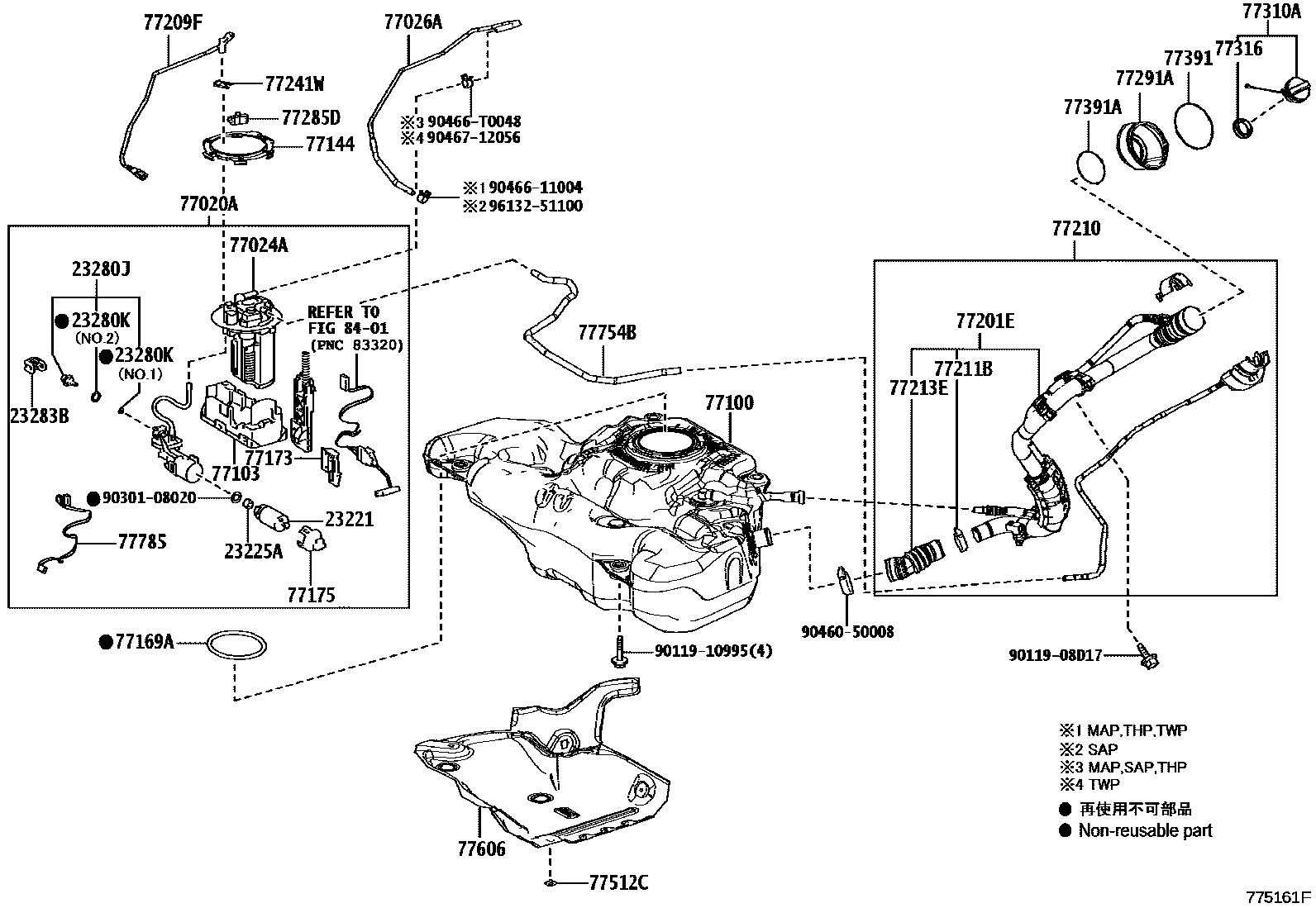

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL TANK 0005 1FUEL TANK 0006 1FUEL TANK 0007 1FUEL TANK, W(CHARCOAL CANISTE0008 1FUEL TANK, W(CHARCOAL CANISTE0009 1FUEL TANK, W(CHARCOAL CANISTE0010 1FUEL TANK 0011 1FUEL TANK, W(CHARCOAL CANISTE0012 1FUEL TANK, W(CHARCOAL CANISTE0013 1FUEL TANK, W(CHARCOAL CANISTE0014 1FUEL TUBE 0015 1FUEL TUBE 0016 1FUEL TUBE, W(CHARCOAL CANISTE0018 1FUEL TUBE, W(CHARCOAL CANISTE0019 1FUEL TUBE 0020 1FUEL TUBE, W(CHARCOAL CANISTE0021 1FUEL LID OPENER 0022 1FUEL LID OPENER

23221PUMP, FUEL

main23221-25030iM20AFKS..MXGA10..AGT,GEN202103-202412

main23221-37040i2ZRFE..ZSG10..TWP..G;2ZRFE..ZSG10..(MAP,TWP)..(E,J,M,N)202007-202411

main23221-47031i2ZRFXE..ZVG10..MA202007-202412

23225ASPACER, FUEL PUMP

main23225-21020i2ZRFXE..ZVG10..BZP..(AGT,GEN)202007-202412

main23225-31020iM20AFKS..MXGA10..AGT,GEN202007-202512

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-0D010i2ZRFXE..ZVG10..BZP..GEN202201-202412

PARAGUAY SPEC&ENGINE-2ZR-FXB

main23280-0D010i2ZRFXE..ZVG10..BZ202103-202112

PARAGUAY SPEC

main23280-21010i2ZRFE..ZSG10..IDN202007-202412

main23280-24010iM20AFKS..MXGA10..(E,G)..GEN202103-202403

PARAGUAY SPEC&ENGINE-M20A-FKB

main23280-37020i2ZRFBE..ZSG10202007-202512

main23280-F2010iM20AFKS..MXGA10..BZ202404-202412

PARAGUAY SPEC&ENGINE-M20A-FKB

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i2ZRFE..ZSG10..E,M;2ZRFE..ZSG10..J..GCC;2ZRFXE..ZVG10..TWP..N;2ZRFE..ZSG10..LHD..SAP..N;2ZRFE..ZSG10..RHD..THP..(G,N);2ZRFE..ZSG10..(G,N)..(SA,TAIW,VN);2ZRFE..ZSG10.202007-202411

NO.1:REFER ILLUST.

main90301-04017iM20AFKS..MXGA10..BZ202201-202412

PARAGUAY SPEC&ENGINE-M20A-FKB

main90301-15024i2ZRFE..ZSG10..E,M;2ZRFE..ZSG10..J..GCC;2ZRFXE..ZVG10..TWP..N;M20AFKS..MXGA10..AGT,GEN;2ZRFE..ZSG10..LHD..SAP..N;2ZRFE..ZSG10..RHD..THP..(G,N);2ZRFE..ZSG10..(G,N)..(202007-202411

NO.2:REFER ILLUST.

main90301-15024iM20AFKS..MXGA10..AGT,GEN202103-202112

main90301-15026iM20AFKS..MXGA10..BZ202103-202112

PARAGUAY SPEC&ENGINE-M20A-FKB

main90301-15026i2ZRFBE..ZSG10202007-202512

23283BHOLDER, FUEL PRESSURE REGULATOR

main23283-24010iM20AFKS..MXGA10..AGT,GEN202103-202412

main23283-36010i2ZRFBE..ZSG10202007-202512

main23283-37010i2ZRFXE..ZVG10..E..PH;2ZRFE..ZSG10..THP..(GEN,PH,VN);2ZRFXE..ZVG10..THP..(GEN,IDN,TH,VN)202007-202412

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-0A010iMXGA10..BZ202404-202412

PARAGUAY SPEC&ENGINE-M20A-FKB

main77020-0A030iZVG10..MAP202007-202411

main77020-0A040iZSG10..THP..(GEN,PH,VN)202007-202411

main77020-0A050iZSG10..TH202007-202512

main77020-0A060iZVG10..TWP202010-202311

sub77020-16180

main77020-0A070iZSG10..TWP202010-202410

main77020-0A100iZVG10..BZP..GEN202103-202112

PARAGUAY SPEC

main77020-0A190iZVG10..BZ202201-202311

PARAGUAY SPEC&ENGINE-2ZR-FXB

main77020-16180iZVG10..BZP..(AGT,GEN)202103-202412

main77020-16190iMXGA10..AGT,GEN202103-202412

main77020-16210iMXGA10..GEN202103-202403

PARAGUAY SPEC&ENGINE-M20A-FKB

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-16010iZSG10..TWP..G;ZVG10..MAP,TWP;ZSG10..(MAP,TWP)..(E,J,M,N)202007-202411

main77024-16020iZSG10..TH202007-202512

main77024-16030iMXGA10..AGT,GEN202103-202412

main77024-16040iMXGA10..BZ202103-202403

PARAGUAY SPEC&ENGINE-M20A-FKB

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-0A030iZVG10..SA202007-202411

main77026-0A040iZSG10..E,M;ZSG10..J..GCC;ZSG10..LHD..SAP..N;ZSG10..(G,N)..(SA,TAIW,VN);ZSG10..RHD..THP..(G,N)..GEN;ZSG10..LHD..(SAP,TWP)..G..(GCC,GEN)202007-202512

main77026-0A080iZVG10..BZP..(AGT,GEN)202103-202412

main77026-0A090iMXGA10..AGT,GEN202103-202412

77100TANK ASSY, FUEL

main77001-0A030iZVG10..MA202007-202411

main77001-0A040iZSG10..IDN202007-202512

main77001-0A060iZVG10..GCC202010-202410

main77001-0A070iZSG10..GCC202010-202410

main77001-0A080iZVG10..BZP..(AGT,GEN)202103-202310

sub77001-0A081

main77001-0A081iZVG10..BZP..(AGT,GEN)202311-202412

main77001-0A090iMXGA10..AGT,GEN202103-202310

sub77001-0A091

main77001-0A091iMXGA10..AGT,GEN202311-202412

main77001-0A100iZVG10..BZP..GEN202103-202112

PARAGUAY SPEC

main77001-0A110iMXGA10..BZ202103-202112

PARAGUAY SPEC&ENGINE-M20A-FKB

main77001-0A180iZVG10..TAIW202010-202410

main77001-0A190iZSG10..TAIW202010-202410

main77001-0A220iZSG10..SAP202110-202411

main77001-0A230iZVG10..BZ202201-202310

PARAGUAY SPEC&ENGINE-2ZR-FXB

sub77001-0A231

main77001-0A231iZVG10..BZP..E..GEN202311-202412

PARAGUAY SPEC&ENGINE-2ZR-FXB

main77001-0A240iMXGA10..BZ202201-202310

PARAGUAY SPEC&ENGINE-M20A-FKB

sub77001-0A241

main77001-0A241iMXGA10..BZ202311-202403

PARAGUAY SPEC&ENGINE-M20A-FKB

main77001-0A290iMXGA10..BZ202404-202412

PARAGUAY SPEC&ENGINE-M20A-FKB

main77001-0A300iZVG10..BZP..GEN202501

PARAGUAY SPEC&ENGINE-2ZR-FXB

77103SUB-TANK SUB-ASSY, FUEL

main77103-12150iMXGA10,ZVG10..BZP..(AGT,GEN)202007-202412

main77103-16010iMXGA10..(E,G)..GEN202103-202403

PARAGUAY SPEC&ENGINE-M20A-FKB

77144RETAINER, FUEL PUMP GAUGE

main77144-02160iZSG10,ZVG10..TWP202010-202410

main77144-0K040iZVG10..SA;ZSG10..MAP..G202007-202512

main77144-30030iZVG10..BZ202103-202412

77169AGASKET, FUEL SUCTION TUBE SET

main77169-0K030iZSG10..IDN202007-202512

main77169-0R030iMXGA10,ZVG10..BZ202201-202308

PARAGUAY SPEC&ENGINE-M20A-FKB

sub77169-F4050

main77169-0R030iMXGA10,ZVG10..BZ202201-202308

PARAGUAY SPEC&ENGINE-2ZR-FXB

sub77169-F4050

main77169-47030iMXGA10,ZVG10..BZP..(AGT,GEN)202010-202412

main77169-47040iZSG10,ZVG10..TAIW202010-202410

main77169-F4050iMXGA10..G..GEN202308-202412

PARAGUAY SPEC&ENGINE-2ZR-FXB

main77169-F4050iMXGA10,ZVG10..BZ202308-202412

PARAGUAY SPEC&ENGINE-M20A-FKB

77173BRACKET, FUEL GAGE

main77173-12010iZVG10..MAP,TWP202007-202412

main77173-12020iZSG10..SAP;ZSG10..MAP..G202007-202412

77175SUPPORT, FUEL SUCTION, NO.2

main77175-12030iMXGA10..AGT,GEN202103-202412

main77175-12040iZVG10..BZP..(AGT,GEN)202007-202412

main77175-78010iMXGA10..BZ202103-202403

PARAGUAY SPEC&ENGINE-M20A-FKB

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-0A030iMXGA10,ZVG10..BZP..(AGT,GEN)202007-202512

main77201-0A090iMXGA10,ZVG10..BZ202201-202403

PARAGUAY SPEC&ENGINE-M20A-FKB

main77201-0A090iZSG10,ZVG10..TAIW202010-202410

main77201-0A090iMXGA10,ZVG10..BZ202201-202412

PARAGUAY SPEC&ENGINE-2ZR-FXB

main77201-0A130iMXGA10..BZ202404-202412

PARAGUAY SPEC&ENGINE-M20A-FKB

main77201-0A190iMXGA10..G..GEN202501

PARAGUAY SPEC&ENGINE-2ZR-FXB

main77201-0A190iMXGA10..G..GEN202501

PARAGUAY SPEC&ENGINE-M20A-FKB

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-0A010iMXGA10..G..GEN202404-202412

PARAGUAY SPEC&ENGINE-M20A-FKB

main77209-0A020iZVG10..BZP..GEN202501

PARAGUAY SPEC&ENGINE-2ZR-FXB

main77209-0A030iZVG10..(MAP,TWP)..(GCC,MA)202007-202411

main77209-0A040iZSG10..TH202007-202512

main77209-0A080iZVG10..BZP..(AGT,GEN)202103-202412

main77209-0A090iMXGA10..AGT,GEN202103-202412

main77209-0A100iZVG10..BZ202103-202112

PARAGUAY SPEC

main77209-0A110iMXGA10..GEN202103-202112

PARAGUAY SPEC&ENGINE-M20A-FKB

main77209-0A180iZVG10..TAIW202010-202410

main77209-0A190iZSG10..TAIW202010-202410

main77209-0A210iZVG10..BZ202201-202412

PARAGUAY SPEC&ENGINE-2ZR-FXB

main77209-0A220iMXGA10..BZ202201-202403

PARAGUAY SPEC&ENGINE-M20A-FKB

77210PIPE ASSY, FUEL TANK FILLER

main77210-0A030iMXGA10,ZVG10..BZP..(AGT,GEN)202007-202512

main77210-0A040iMXGA10..GEN202103-202112

PARAGUAY SPEC&ENGINE-M20A-FKB

main77210-0A090iZSG10,ZVG10..TAIW202010-202410

main77210-0A110iZVG10..BZP..E..GEN202201-202412

PARAGUAY SPEC&ENGINE-2ZR-FXB

main77210-0A120iMXGA10..(E,G)..GEN202201-202403

PARAGUAY SPEC&ENGINE-M20A-FKB

main77210-0A150iMXGA10..G..GEN202404-202412

PARAGUAY SPEC&ENGINE-M20A-FKB

main77210-0A210iMXGA10..G..GEN202501

PARAGUAY SPEC&ENGINE-2ZR-FXB

main77210-0A210iZVG10..BZP..GEN202501

PARAGUAY SPEC&ENGINE-M20A-FKB

77211BCLAMP (FOR FUEL FILLER PIPE)

main90460-46005iZSG10,ZVG10..MA202007-202512

77213EHOSE, FUEL TANK TO FILLER PIPE

main77213-0A030iZSG10,ZVG10..MA202007-202512

77241WCLIP, TUBE JOINT

main77241-0K010iZSG10,ZVG10..MAP..E202007-202512

main77241-33011iMXGA10,ZVG10..BZ202103-202412

PARAGUAY SPEC&ENGINE-M20A-FKB

main77241-33011iMXGA10,ZVG10..BZP..(AGT,GEN)202201-202412

PARAGUAY SPEC&ENGINE-2ZR-FXB

main77241-33011iMXGA10,ZVG10..BZP..(AGT,GEN)202010-202410

main77241-33011iMXGA10,ZVG10..BZ202103-202112

PARAGUAY SPEC

77285DCLAMP, FUEL TUBE, NO.1

main77285-06570iZSG10..MAP..E202007-202512

main77285-0A060iZVG10..BZP202007-202412

main77285-30350iMXGA10202010-202412

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-0A010iZSG10..VN;ZVG10..THP..(E,G);ZSG10..LHD..E..GEN;ZSG10..RHD..THP..GEN202007-202512

main77291-0A020iZSG10,ZVG10..TWP202010-202410

main77291-0A030iMXGA10,ZVG10..BZP202103-202412

main77291-0A070iZSG10,ZVG10..SAP202110-202411

main77291-0A080iZSG10..G..MA202112-202411

77310ACAP ASSY, FUEL TANK

main77300-0K010iZSG10..IDN202007-202512

main77300-12020iZSG10,ZVG10..GCC202010-202412

main77300-12040iMXGA10,ZVG10..BZ202501

PARAGUAY SPEC&ENGINE-2ZR-FXB

main77300-12040iMXGA10,ZVG10..BZ202501

PARAGUAY SPEC&ENGINE-M20A-FKB

main77300-48020iZVG10..BZP..E..GEN202201-202412

PARAGUAY SPEC&ENGINE-M20A-FKB

main77300-48020iMXGA10..(E,G)..GEN202201-202412

PARAGUAY SPEC&ENGINE-2ZR-FXB

main77300-48020iZSG10,ZVG10..TAIW202010-202410

77316GASKET, FUEL TANK CAP

main77316-0K020iZSG10..E;ZSG10..(G,N)..(SA,VN);ZSG10..LHD..SAP..(G,N);ZSG10..RHD..THP..(G,N)..GEN;ZVG10..(MAP,SAP,THP)..(E,G,R)202007-202512

main77316-52040iMXGA10,ZVG10..BZP202010-202412

main77316-75020iZVG10..BZP..GEN202201-202412

PARAGUAY SPEC&ENGINE-M20A-FKB

main77316-75020iMXGA10,ZVG10..BZ202201-202412

PARAGUAY SPEC&ENGINE-2ZR-FXB

main77316-75020iZSG10,ZVG10..TAIW202010-202410

77391RING, FUEL INLET BOX

main77391-0A010iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202512

77391ARING, FUEL INLET BOX

main77391-02020iMXGA10,ZVG10..BZP202007-202512

77512CBRACKET, FUEL TANK

main77512-35140iZVG10..BZP202007-202512

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-0A050iZSG10..MAP..G202007-202512

main77606-0A060iZSG10..TWP202010-202410

main77606-0A070iMXGA10202103-202412

main77606-0A080iZVG10..SA202007-202412

main77606-0A090iZVG10..TWP202010-202410

main77606-0A100iZSG10..SAP202110-202411

77754HOSE, CHARCOAL CANISTER OUTLET, NO.1

main77754-16080iMXGA10..BZ202103-202403

PARAGUAY SPEC&ENGINE-M20A-FKB

77754BHOSE, CHARCOAL CANISTER OUTLET

main77754-0A030iZVG10..MAP,TWP202007-202411

main77754-0A040iZSG10..IDN202007-202512

main77754-16090iZVG10..BZP..(AGT,GEN)202103-202412

main77754-16100iMXGA10..AGT,GEN202103-202412

main77754-16110iZVG10..BZ202201-202412

PARAGUAY SPEC&ENGINE-2ZR-FXB

77785HARNESS, FUEL PUMP

main77785-12040iMXGA10..AGT,GEN202103-202412

main77785-12050iZVG10..BZP..(AGT,GEN)202007-202412

main77785-33140iZSG10..TH202007-202512

main77785-52120iMXGA10..(E,G)..GEN202103-202403

PARAGUAY SPEC&ENGINE-M20A-FKB

8401

9011908D17

main90119-08D17

9011910995

main90119-10995

9030108020

main90301-08020

9046050008

main90460-50008

9046611004

main90466-11004

90466T0048

main90466-T0048

9046712056

main90467-12056

9613251100

main96132-51100

40 parts on this diagram · 21 diagrams in section
