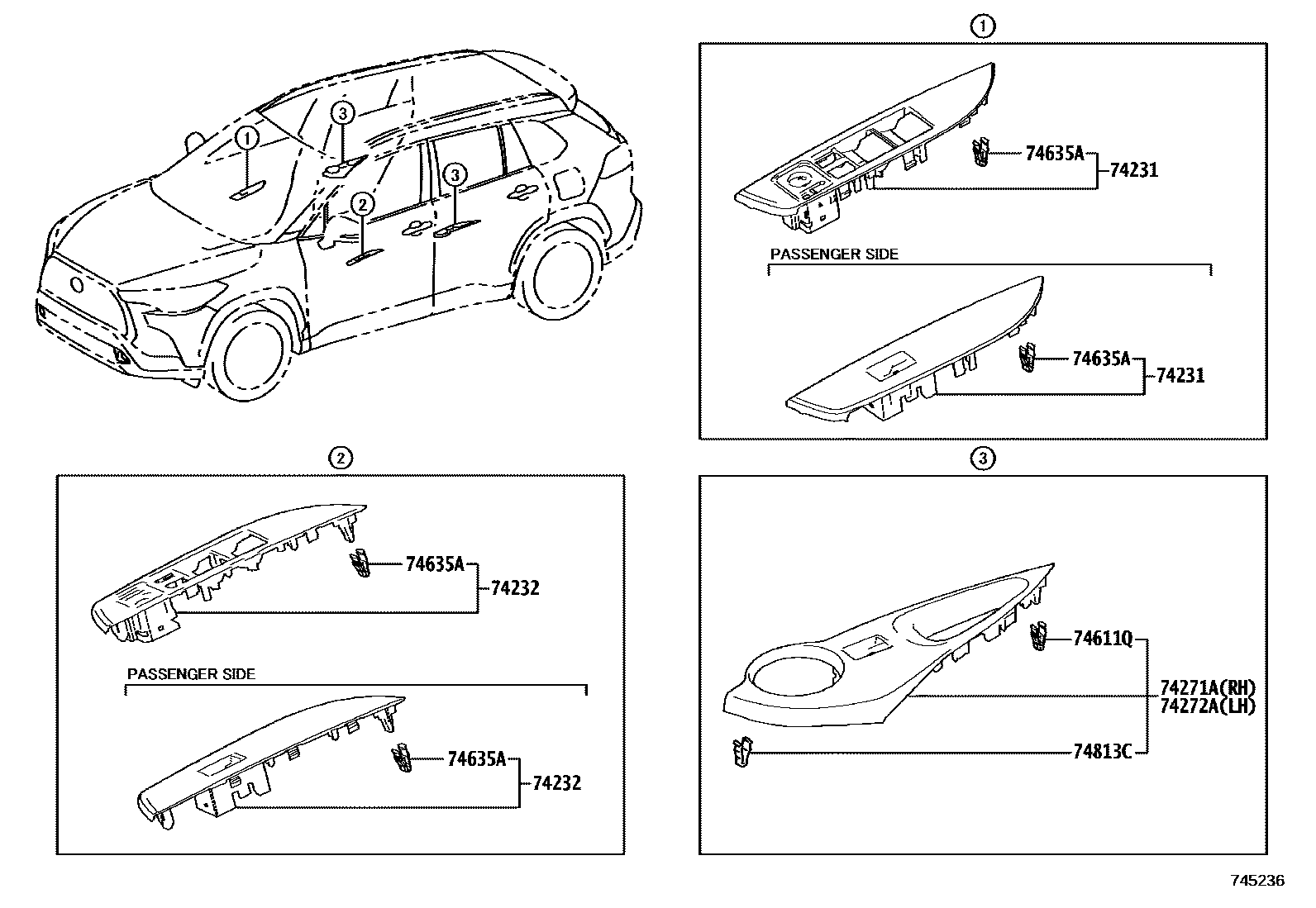

ARMREST & VISOR

0001 1ARMREST 0002 1VISOR & ASSIST GRIP 0003 1VISOR & ASSIST GRIP & EXTINGU

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-02G30iZSG10..MAP..G;ZSG10,ZVG10..RHD..SAP202007-202512

main74231-02G50iZSG10..LHD..THP;ZVG10..LHD..THP..E202007-202402

main74231-02J00iZSG10..J..GCC;ZSG10,ZVG10..LHD..(SAP,TWP)..(E,G,L,M,N)202010-202411

main74231-02J20iMXGA10,ZVG10..BZP202103-202412

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-02G90iZSG10..MAP..G;ZSG10,ZVG10..RHD..SAP202007-202512

main74232-02J30iZSG10..LHD..THP;ZVG10..LHD..THP..E202007-202402

main74232-02J80iMXGA10,ZVG10..BZP202103-202412

main74232-02K70iZSG10,ZVG10..TWP202010-202411

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-0A010iZSG10..MAP..G202007-202512

main74271-0A020iZSG10,ZVG10..TWP202010-202410

main74271-0A030iMXGA10,ZVG10..BZP202103-202412

main74271-0A040iZSG10,ZVG10..SAP202110-202411

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-0A010iZSG10..IDN202007-202512

main74272-0A020iZSG10,ZVG10..TWP202010-202410

main74272-0A030iMXGA10,ZVG10..BZP202103-202412

main74272-0A040iZSG10,ZVG10..SAP202110-202411

74611QCLIP

main90467-10203iMXGA10,ZVG10..BZP¥60202007-202412

main90467-A0011iZSG10,ZVG10..SAP202110-202411

main90467-T0033iZSG10..TH202111-202512

74635ACLIP

main90467-10203iZSG10,ZVG10..TWP¥60202007-202412

main90467-10203iZSG10..E;ZSG10..(G,N)..(SA,VN);ZSG10..RHD..THP..(G,N)..GEN;ZVG10..(MAP,SAP,THP)..(E,G,R)¥60202212-202512

(J)

main90467-T0033iZSG10..TH202212-202512

(L)

74813CCLIP

main90467-12080iMXGA10,ZVG10..BZP¥60202007-202512

7 parts on this diagram · 3 diagrams in section
