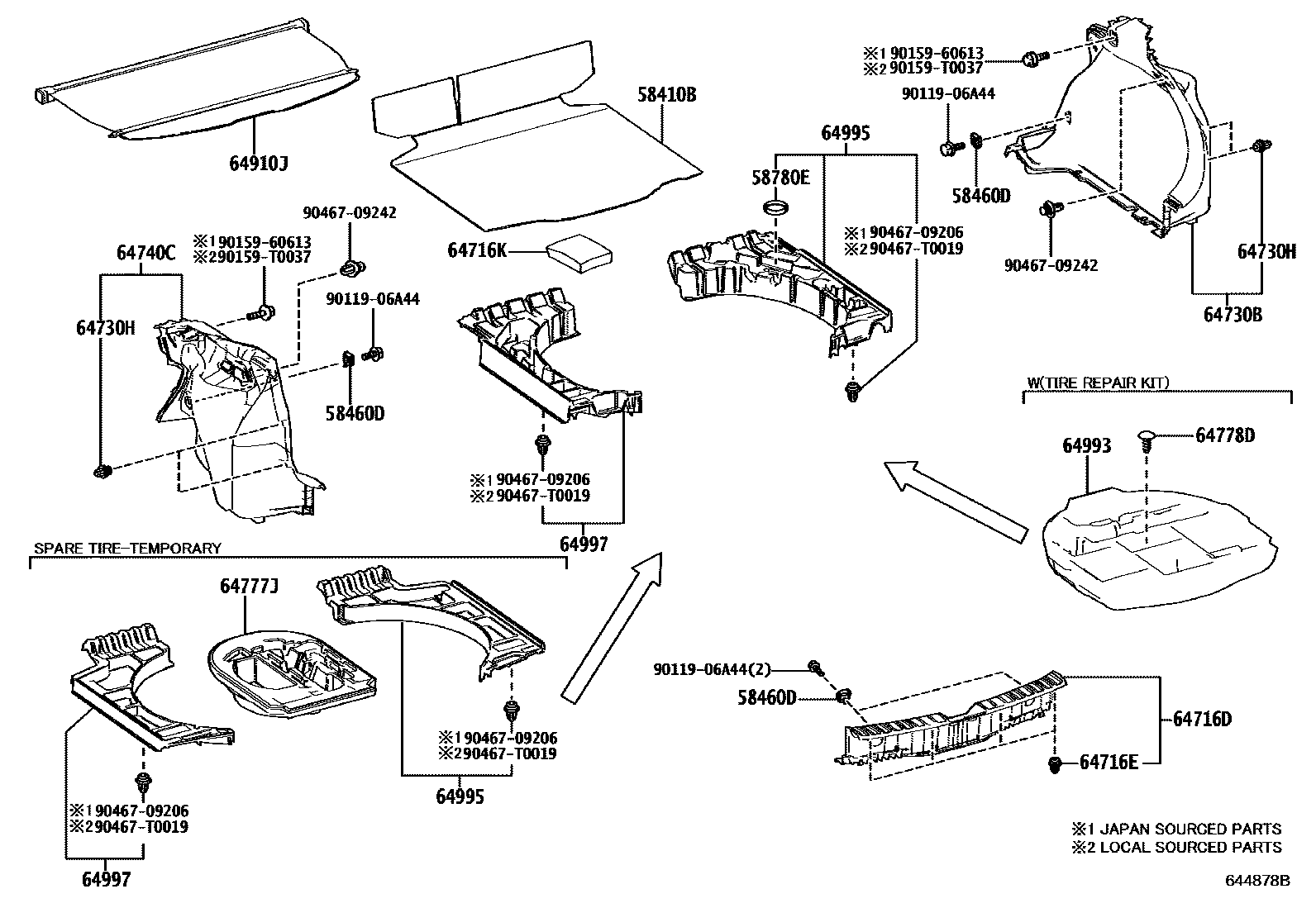

DECK BOARD & DECK TRIM COVER

58410BBOARD ASSY, DECK

main58410-0A010-C0iZSG10,ZVG10..TH202007-202402

BLACK,TRIM2#,3#

main58410-0A020-C0iZSG10,ZVG10..TH;ZSG10..LHD..E..GEN202007-202402

SPARE TIRE-TEMPORARY(T155/70D17),BLACK,TRIM2#,3#

main58410-0A020-C0iZSG10..VN;ZVG10..E..PH;ZSG10..RHD..THP..GEN;ZSG10..LHD..THP..N..GEN;ZVG10..THP..(GEN,IDN,VN)202007-202402

BLACK,TRIM2#,3#

main58410-0A020-C0iZSG10..N..VN;ZVG10..E..PH;ZSG10..THP..E;ZVG10..THP..(E,G)..(GEN,IDN,VN)202401

BLACK,TRIM2#

main58410-0A030-C0iZVG10..G..PH202401

SPARE TIRE-GROUND TIRE(ALUMINUM WHEEL),BLACK,TRIM2#

main58410-0A030-C0iZVG10..G..PH202401

BLACK,TRIM2#

main58410-0A030-C0iZVG10..G..PH202007-202402

BLACK,TRIM2#,3#

main58410-0A030-C0iZSG10..RHD..THP..G..GEN202007-202402

SPARE TIRE-GROUND TIRE(ALUMINUM WHEEL),BLACK,TRIM2#,3#

main58410-0A040-C0iZSG10,ZVG10..(E,G,N)..TAIW202108-202410

BLACK,TRIM2#

main58410-0A040-C0iZSG10,ZVG10..(E,G,N)..TAIW202010-202410

BLACK,TRIM2#,3#

main58410-0A060-C0iZSG10..G..GCC;ZVG10..E..GCC202010-202410

BLACK,TRIM0#,2#,3#

main58410-0A060-C0iZSG10..G..GCC;ZVG10..E..GCC202010-202410

BLACK,TRIM2#,3#

main58410-0A060-C0iZSG10..G..GCC;ZVG10..E..GCC202010-202410

SPARE TIRE-GROUND TIRE(ALUMINUM WHEEL),BLACK,TRIM2#,3#

main58410-0A080-C0iMXGA10..G,N;ZVG10..G..AGT202103-202412

BLACK,TRIM0#,2#

main58410-0A080-C0iMXGA10..G,N;ZVG10..G..AGT202103-202412

BLACK,TRIM2#

main58410-0A140-C0iZSG10,ZVG10..(E,G)..SA202110-202411

BLACK,TRIM2#,3#

main58410-0A140-C0iZSG10,ZVG10..(E,G)..SA202110-202411

BLACK,TRIM2#

main58410-0A150-C0iZSG10..SAP..(E,G)..GEN202110-202411

SPARE TIRE-GROUND TIRE(ALUMINUM WHEEL),BLACK,TRIM2#,3#

main58410-0A150-C0iZSG10..SAP..(E,G)..GEN202110-202411

SPARE TIRE-GROUND TIRE(ALUMINUM WHEEL),BLACK,TRIM2#

main58410-0A150-C0iZSG10..SAP..(E,G)..GEN202110-202411

BLACK,TRIM2#,3#

main58410-0A150-C0iZSG10..SAP..(E,G)..GEN202110-202411

BLACK,TRIM2#

main58410-0A150-C0iZVG10..G..SA202305-202411

KENYA SPEC,BLACK,TRIM2#,3#

main58410-0A150-C0iZVG10..G..SA202305-202411

AFRICA SPEC,BLACK,TRIM2#,3#

main58410-0A160-C0iZSG10,ZVG10..E..MA202112-202411

BLACK,TRIM2#,3#

main58410-0A160-C0iZVG10..R202411

BLACK,TRIM2#

58460DSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-33020iZSG10,ZVG10..MA202007-202411

58780EBAND ASSY, TOOL BOX

main58781-52010iZVG10..G..SA202305-202411

KENYA SPEC

main58781-52010iZVG10..G..SA202007-202411

SPARE TIRE-GROUND TIRE(ALUMINUM WHEEL)

main58781-52010iZVG10..G..SA202305-202411

AFRICA SPEC

64716DCOVER, DECK TRIM, REAR

main64716-0A010-C0iZSG10..VN;ZVG10..E..PH;ZSG10..LHD..E..GEN;ZSG10..RHD..THP..(E,G);ZVG10..THP..(E,G)..(GEN,IDN,TH,VN)202007-202402

BLACK,TRIM2#,3#

main64716-0A010-C0iZSG10..VN;ZVG10..E..PH;ZSG10..LHD..E..GEN;ZSG10..RHD..THP..(E,G);ZVG10..THP..(E,G)..(GEN,IDN,TH,VN)202401

BLACK,TRIM2#

main64716-0A020-C0iZVG10..E..TAIW;ZVG10..TWP..(G,N);ZSG10..(J,N)..GCC;ZSG10..(G,J,N)..TAIW202010-202410

BLACK,TRIM2#,3#

main64716-0A020-C0iZSG10,ZVG10..L,M202108-202410

BLACK,TRIM2#

main64716-0A020-C0iZVG10..E..TAIW;ZVG10..TWP..(G,N);ZSG10..(J,N)..GCC;ZSG10..(G,J,N)..TAIW202010-202410

BLACK,TRIM0#,2#,3#

main64716-0A030-C0iMXGA10..E;ZVG10..E..AGT;ZVG10..BZP..(BZ,GEN)202103-202412

BLACK,TRIM0#,2#

main64716-0A030-C0iMXGA10..E;ZVG10..E..AGT;ZVG10..BZP..(BZ,GEN)202103-202412

BLACK,TRIM2#

main64716-0A070-C0iZSG10..SAP..N202110-202411

BLACK,TRIM2#,3#

main64716-0A070-C0iZSG10,ZVG10..SAP..(E,G)202110-202411

BLACK,TRIM2#

main64716-0A090-C0iZSG10,ZVG10..E..MA202112-202411

BLACK,TRIM2#,3#

main64716-0A090-C0iZSG10,ZVG10..E..MA202411

BLACK,TRIM2#

64716ECLIP(FOR DECK TRIM REAR COVER)

main62489-0E010iMXGA10,ZVG10..BZP202103-202406

main90467-10161iZSG10..J..GCC;ZSG10..N..TAIW;ZSG10..TWP..(G,M);MXGA10,ZVG10..BZP,TWP202010-202410

main90467-T0021iZSG10,ZVG10..MA202007-202411

64716KPAD, DECK TRIM COVER

main64727-0A010iZSG10..J..TAIW202010-202410

SPARE TIRE-GROUND TIRE(ALUMINUM WHEEL)

main64727-0A010iZSG10..J..GEN202010-202411

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-0A010-C0iZVG10..E..PH;ZSG10..E..(MA,VN);ZSG10..LHD..E..GEN;ZSG10..RHD..THP..(E,G)..GEN;ZVG10..(MAP,THP)..(E,G)..(GEN,IDN,MA,TH,VN)202007-202411

BLACK,TRIM2#,3#

main64730-0A010-C0iZVG10..E..PH;ZSG10..E..(MA,VN);ZSG10..LHD..E..GEN;ZSG10..RHD..THP..(E,G)..GEN;ZVG10..(MAP,THP)..(E,G)..(GEN,IDN,MA,TH,VN)202401

BLACK,TRIM2#

main64730-0A020-C0iZSG10..G..GCC;ZVG10..E..GCC202010-202410

BLACK,TRIM2#,3#

main64730-0A020-C0iZSG10..G..GCC;ZVG10..E..GCC202010-202410

BLACK,TRIM0#,2#,3#

main64730-0A020-C0iZVG10..L202108-202410

BLACK,TRIM2#

main64730-0A030-C0iMXGA10..E;ZVG10..E..AGT;ZVG10..BZP..(BZ,GEN)202103-202412

BLACK,TRIM2#

main64730-0A030-C0iZVG10..G..AGT202103-202412

BLACK,TRIM0#,2#

main64730-0A050-C0iZSG10,ZVG10..SAP..E202411

BLACK,TRIM2#,3#

main64730-0A100-C0iZSG10,ZVG10..SAP..G202411

BLACK,TRIM2#,3#

main64730-0A100-C0iZSG10,ZVG10..SAP..G202411

BLACK,TRIM2#

main64730-0A120-C0iZSG10..G..MA202007-202402

BLACK,TRIM2#,3#

main64730-0A120-C0iZSG10..(G,N)..(TH,VN)202401

BLACK,TRIM2#

main64730-0A130-C0iZVG10..N..TAIW;ZSG10..TWP..(J,N)202010-202410

BLACK,TRIM2#,3#

main64730-0A130-C0iZSG10,ZVG10..M202108-202410

BLACK,TRIM2#

main64730-0A140-C0iMXGA10..G,N202103-202412

BLACK,TRIM2#

main64730-0A150-C0iZSG10,ZVG10..SAP..E202110-202411

BLACK,TRIM2#,3#

main64730-0A160-C0iZSG10..SAP..(J,N)202110-202411

BLACK,TRIM2#,3#

main64730-0A160-C0iZSG10..SAP..(J,N)202110-202411

BLACK,TRIM2#

64730HCLIP(FOR DECK TRIM SIDE PANEL)

main62489-0E010iMXGA10,ZVG10..BZP202103-202406

main90467-10161iZSG10..J..GCC;ZSG10..N..TAIW;ZSG10..TWP..(G,M);MXGA10,ZVG10..BZP,TWP202010-202410

main90467-T0021iZSG10..LHD..E;ZSG10..RHD..THP;ZSG10..(MAP,SAP)..E;ZSG10..(G,N)..(SA,VN);ZSG10..LHD..SAP..(G,N);ZVG10..(MAP,SAP,THP)..(E,G,R)202007-202411

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-0A010-C0iZSG10,ZVG10..MAP..E202007-202411

BLACK,TRIM2#,3#

main64740-0A010-C0iZVG10..E..PH;ZSG10..E..(MA,VN);ZSG10..LHD..E..GEN;ZSG10..RHD..THP..(E,G)..GEN;ZVG10..(MAP,THP)..(E,G)..(GEN,IDN,MA,TH,VN)202401

BLACK,TRIM2#

main64740-0A020-C0iZVG10..TWP..G;ZVG10..N..GCC;ZSG10..G..TAIW;ZVG10..E..TAIW202010-202410

BLACK,TRIM2#,3#

main64740-0A020-C0iZSG10..G..GCC;ZVG10..E..GCC202010-202410

BLACK,TRIM0#,2#,3#

main64740-0A020-C0iZVG10..L202108-202410

BLACK,TRIM2#

main64740-0A030-C0iZVG10..G..AGT202103-202412

BLACK,TRIM2#

main64740-0A030-C0iZVG10..G..AGT202103-202412

BLACK,TRIM0#,2#

main64740-0A050-C0iZSG10,ZVG10..SAP..E202411

BLACK,TRIM2#,3#

main64740-0A120-C0iZSG10..RHD..THP..N202007-202402

BLACK,TRIM2#,3#

main64740-0A120-C0iZSG10..RHD..THP..N202401

BLACK,TRIM2#

main64740-0A130-C0iZVG10..N..TAIW;ZSG10..TWP..(J,N)202108-202410

BLACK,TRIM2#

main64740-0A130-C0iZVG10..N..TAIW;ZSG10..TWP..(J,N)202010-202410

BLACK,TRIM2#,3#

main64740-0A140-C0iMXGA10..G,N202103-202412

BLACK,TRIM2#

main64740-0A150-C0iZSG10,ZVG10..SAP..E202110-202411

BLACK,TRIM2#,3#

main64740-0A160-C0iZSG10,ZVG10..SAP..G202110-202411

BLACK,TRIM2#,3#

main64740-0A160-C0iZSG10,ZVG10..SAP..G202110-202411

BLACK,TRIM2#

main64740-0A210-C0iZSG10,ZVG10..SAP..G202411

BLACK,TRIM2#

main64740-0A210-C0iZSG10,ZVG10..SAP..G202411

BLACK,TRIM2#,3#

64777JCUSHION, SPARE WHEEL

main64777-0A010iZSG10..VN;ZVG10..E..PH;ZSG10..LHD..E..GEN;ZSG10..RHD..THP..(E,N);ZVG10..THP..(E,G)..(GEN,IDN,VN)202007-202212

main64777-0A010iZSG10,ZVG10..TH;ZSG10..LHD..E..GEN202007-202402

SPARE TIRE-TEMPORARY(T155/70D17)

main64777-0A050iMXGA10,ZVG10..BZP202103-202412

main64777-0A120iZSG10,ZVG10..SA202110-202411

main64777-0A130iZSG10..G..MA202112-202411

64778DPROTECTOR, SPARE WHEEL

main64778-52160iZVG10..N..TAIW;ZSG10..(G,M,N)..TAIW;ZVG10..(E,G,L,M)..(TAIW,TH)202007-202512

64910JCOVER ASSY, TONNEAU

main64910-0A010-C0iZVG10..E..PH;ZSG10..LHD..E;ZSG10..RHD..THP..(E,G)..GEN;ZVG10..THP..(E,G)..(GEN,IDN,VN)202007-202402

BLACK,TRIM2#,3#

main64910-0A010-C0iMXGA10..E;ZVG10..E..AGT;ZVG10..BZP..(BZ,GEN)202103-202412

BLACK,TRIM0#,2#

main64910-0A010-C0iMXGA10..E;ZVG10..E..AGT;ZVG10..BZP..(BZ,GEN)202103-202412

BLACK,TRIM2#

main64910-0A010-C0iZVG10..MA202007-202410

TONNEAU COVER-WITH,BLACK,TRIM2#,3#

main64910-0A010-C0iZSG10..G..GCC;ZVG10..E..GCC202010-202410

TONNEAU COVER-WITH,BLACK,TRIM0#,2#,3#

main64910-0A010-C0iZSG10,ZVG10..L,M202108-202410

TONNEAU COVER-WITH,BLACK,TRIM2#

main64910-0A020-C0iZSG10..N..SA202110-202411

BLACK,TRIM2#,3#

main64910-0A020-C0iZSG10,ZVG10..(E,G)..SA202110-202411

TONNEAU COVER-WITH,BLACK,TRIM2#,3#

main64910-0A020-C0iZSG10,ZVG10..(E,G)..SA202110-202411

TONNEAU COVER-WITH,BLACK,TRIM2#

main64910-0A020-C0iZSG10..SAP..(E,G)..GEN202110-202411

BLACK,TRIM2#

main64910-0A070-C0iZSG10,ZVG10..E..MA202112-202411

BLACK,TRIM2#,3#

main64910-0A070-C0iZVG10..R202411

BLACK,TRIM2#

64993BOX, DECK FLOOR, REAR

main64993-0A010iZSG10,ZVG10..TH202007-202512

main64993-0A020iZSG10,ZVG10..TAIW202010-202410

64995BOX, DECK FLOOR, RH

main64995-0A010-C0iZSG10..RHD..THP..N202401

BLACK,TRIM2#

main64995-0A010-C0iZSG10..VN;ZVG10..E..PH;ZSG10..RHD..THP..GEN;ZSG10..LHD..THP..N..GEN;ZVG10..THP..(GEN,IDN,VN)202007-202402

BLACK,TRIM2#,3#

main64995-0A010-C0iZSG10..VN;ZVG10..E..PH;ZSG10..RHD..THP..GEN;ZSG10..LHD..THP..N..GEN;ZVG10..THP..(GEN,IDN,VN)202007-202402

SPARE TIRE-TEMPORARY(T155/70D17),BLACK,TRIM2#,3#

main64995-0A020-C0iZSG10..RHD..THP..E;ZVG10..THP..G..GEN202007-202402

BLACK,TRIM2#,3#

main64995-0A020-C0iZSG10..RHD..THP..G..GEN202401

BLACK,TRIM2#

main64995-0A020-C0iZSG10..RHD..THP..G..GEN202401

SPARE TIRE-GROUND TIRE(ALUMINUM WHEEL),BLACK,TRIM2#

main64995-0A020-C0iZSG10..RHD..THP..G..GEN202007-202402

SPARE TIRE-GROUND TIRE(ALUMINUM WHEEL),BLACK,TRIM2#,3#

main64995-0A040-C0iZSG10,ZVG10..(G,J,N)..TAIW202010-202410

BLACK,TRIM0#,2#,3#

main64995-0A040-C0iZSG10,ZVG10..GCC202010-202410

BLACK,TRIM2#,3#

main64995-0A040-C0iZSG10..G..GCC;ZVG10..E..GCC202010-202410

SPARE TIRE-GROUND TIRE(ALUMINUM WHEEL),BLACK,TRIM2#,3#

main64995-0A050-C0iMXGA10..E;ZVG10..E..AGT;ZVG10..BZP..(BZ,GEN)202103-202412

BLACK,TRIM0#,2#

main64995-0A050-C0iMXGA10..E;ZVG10..E..AGT;ZVG10..BZP..(BZ,GEN)202103-202412

BLACK,TRIM2#

main64995-0A110-C0iZSG10..N..SA202110-202411

BLACK,TRIM2#

main64995-0A110-C0iZSG10..N..SA202110-202411

BLACK,TRIM2#,3#

main64995-0A130-C0iZSG10,ZVG10..G..SA202110-202411

BLACK,TRIM2#

main64995-0A130-C0iZVG10..G..SA202110-202411

SPARE TIRE-GROUND TIRE(ALUMINUM WHEEL),BLACK,TRIM2#,3#

main64995-0A130-C0iZSG10..SAP..(J,N)..GEN202110-202411

BLACK,TRIM2#,3#

main64995-0A130-C0iZSG10..SAP..(J,N)..GEN202110-202411

SPARE TIRE-GROUND TIRE(ALUMINUM WHEEL),BLACK,TRIM2#

main64995-0A130-C0iZVG10..G..SA202305-202411

KENYA SPEC,BLACK,TRIM2#,3#

main64995-0A130-C0iZVG10..G..SA202305-202411

AFRICA SPEC,BLACK,TRIM2#,3#

main64995-0A140-C0iZSG10..G..MA202112-202411

BLACK,TRIM2#,3#

main64995-0A140-C0iZVG10..R202411

BLACK,TRIM2#

64997BOX, DECK FLOOR, LH

main64997-0A010-C0iZSG10..N..VN;ZVG10..E..PH;ZSG10..THP..E;ZVG10..THP..(E,G)..(GEN,IDN,VN)202007-202402

BLACK,TRIM2#,3#

main64997-0A010-C0iZSG10..VN;ZVG10..E..PH;ZSG10..RHD..THP..GEN;ZSG10..LHD..THP..N..GEN;ZVG10..THP..(GEN,IDN,VN)202007-202402

SPARE TIRE-TEMPORARY(T155/70D17),BLACK,TRIM2#,3#

main64997-0A010-C0iZSG10..RHD..THP..N202401

BLACK,TRIM2#

main64997-0A020-C0iZSG10..RHD..THP..N202007-202402

BLACK,TRIM2#,3#

main64997-0A020-C0iZSG10..RHD..THP..N202007-202402

SPARE TIRE-GROUND TIRE(ALUMINUM WHEEL),BLACK,TRIM2#,3#

main64997-0A020-C0iZSG10..RHD..THP..N202401

SPARE TIRE-GROUND TIRE(ALUMINUM WHEEL),BLACK,TRIM2#

main64997-0A020-C0iZSG10..RHD..THP..N202401

BLACK,TRIM2#

main64997-0A040-C0iZSG10,ZVG10..(G,J,N)..TAIW202010-202410

BLACK,TRIM2#,3#

main64997-0A040-C0iZSG10,ZVG10..(G,J,N)..TAIW202010-202410

SPARE TIRE-GROUND TIRE(ALUMINUM WHEEL),BLACK,TRIM2#,3#

main64997-0A040-C0iZSG10..G..GCC;ZVG10..E..GCC202010-202410

BLACK,TRIM0#,2#,3#

main64997-0A050-C0iMXGA10..G,N;ZVG10..G..AGT202103-202412

BLACK,TRIM0#,2#

main64997-0A050-C0iMXGA10..G,N;ZVG10..G..AGT202103-202412

BLACK,TRIM2#

main64997-0A110-C0iZSG10,ZVG10..(E,G)..SA202110-202411

BLACK,TRIM2#,3#

main64997-0A110-C0iZSG10..N..SA202110-202411

BLACK,TRIM2#

main64997-0A130-C0iZVG10..G..SA202305-202411

KENYA SPEC,BLACK,TRIM2#,3#

main64997-0A130-C0iZSG10..G..SA202110-202411

SPARE TIRE-GROUND TIRE(ALUMINUM WHEEL),BLACK,TRIM2#,3#

main64997-0A130-C0iZSG10..G..SA202110-202411

SPARE TIRE-GROUND TIRE(ALUMINUM WHEEL),BLACK,TRIM2#

main64997-0A130-C0iZSG10..G..SA202110-202411

BLACK,TRIM2#,3#

main64997-0A130-C0iZSG10..G..SA202110-202411

BLACK,TRIM2#

main64997-0A130-C0iZVG10..G..SA202305-202411

AFRICA SPEC,BLACK,TRIM2#,3#

main64997-0A140-C0iZSG10,ZVG10..E..MA202112-202411

BLACK,TRIM2#,3#

main64997-0A140-C0iZVG10..R202411

BLACK,TRIM2#

9011906A44

main90119-06A44

9015960613

main90159-60613

90159T0037

main90159-T0037

9046709206

main90467-09206

9046709242

main90467-09242

90467T0019

main90467-T0019

21 parts on this diagram · 1 diagram in section
