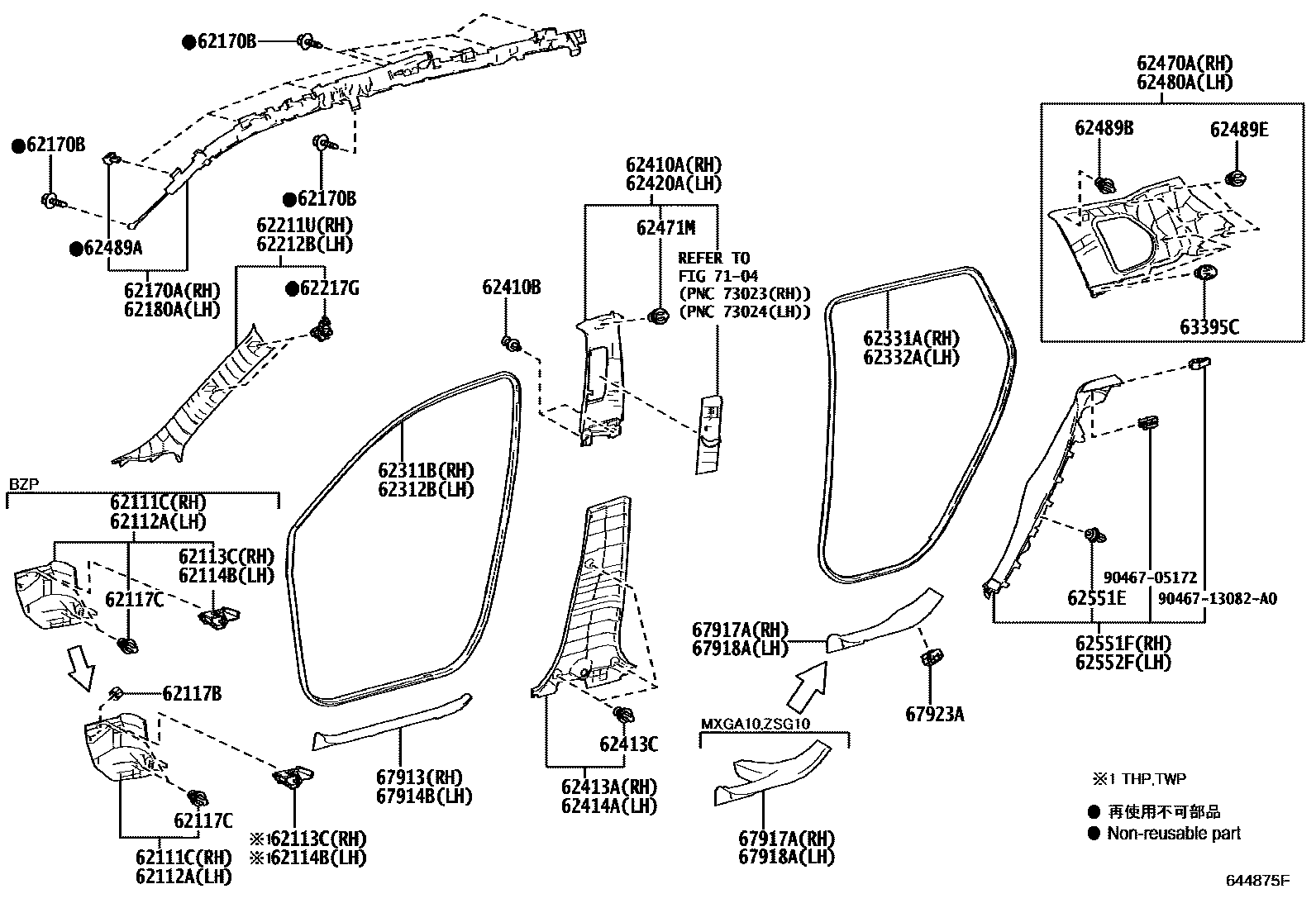

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62111CBOARD, COWL SIDE TRIM, RH

main62111-0A020-C0iZSG10..VN;ZVG10..E..PH;ZSG10..LHD..E..GEN;ZSG10..RHD..THP..(E,G);ZVG10..THP..(E,G)..(GEN,IDN,TH,VN)202401

BLACK,TRIM2#,3#

main62111-0A030-C0iZVG10..E..TAIW;ZVG10..TWP..(G,N);ZSG10..(J,N)..GCC;ZSG10..(G,J,N)..TAIW202010-202410

BLACK,TRIM2#,3#

main62111-0A040-C0iMXGA10..G,N;ZVG10..G..AGT202404-202412

BLACK,TRIM2#

main62111-0A080-C0iZSG10..SAP..N202411

BLACK,TRIM2#,3#

main62111-0A090-C0iZSG10,ZVG10..E..MA202112-202410

BLACK,TRIM2#,3#

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62112-02430-C0iZSG10..VN;ZVG10..E..PH;ZSG10..LHD..E..GEN;ZSG10..RHD..THP..(E,G);ZVG10..THP..(E,G)..(GEN,IDN,TH,VN)202401

BLACK,TRIM2#,3#

main62112-02440-C0iZVG10..E..TAIW;ZVG10..TWP..(G,N);ZSG10..(J,N)..GCC;ZSG10..(G,J,N)..TAIW202010-202410

BLACK,TRIM2#,3#

main62112-0A080-C0iZSG10..SAP..(J,N)202110-202411

BLACK,TRIM2#,3#

main62112-0A090-C0iZSG10,ZVG10..E..MA202112-202410

BLACK,TRIM2#,3#

main62112-0A100-C0iMXGA10..G,N;ZVG10..G..AGT202103-202112

BLACK,TRIM2#

62113CBOARD, COWL SIDE TRIM, LOWER RH

main62113-0A010iZSG10..VN;ZVG10..THP..(E,G);ZSG10..LHD..E..GEN;ZSG10..RHD..THP..GEN202401

main62113-0A020iZSG10,ZVG10..TWP202410

62114BBOARD, COWL SIDE TRIM, LOWER LH

main62114-0A010iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202402

main62114-0A020iZSG10,ZVG10..TWP202010-202410

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-06147×2iMXGA10,ZVG10..BZP202501

62117CCLIP, NO.2(FOR COWL SIDE TRIM)

main90467-10167×4iMXGA10,ZVG10..BZP202501

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-0A010iZSG10,ZVG10..MA202007-202111

main62170-0A030iMXGA10,ZVG10..BZP202103-202112

main62170-0A060iZSG10,ZVG10..E..SA;ZSG10..RHD..SAP..(E,G)..GEN202110-202411

SRS AIR BAG-WITH(*DRP & SIDE & *CUSA & KNEE)

main62170-0A070iZSG10,ZVG10..MA202411

62170BBOLT, W/WASHER

main91673-80616×12iZVG10..IDN,TH,VN;ZSG10..LHD..THP..N;ZVG10..THP..E..(GEN,PH);ZSG10..THP..(E,G)..(GEN,TH,VN)202007-202402

SRS AIR BAG-WITH(*DRP & SIDE & *CUSA & KNEE)

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-0A010iZSG10..G..GCC;ZVG10..E..GCC;ZVG10..N..TAIW;ZSG10..LHD..E..GEN;ZSG10..RHD..THP..GEN;ZSG10..(E,G,M,N)..(TAIW,VN);ZVG10..(THP,TWP)..(E,G,L,M)..(GEN,IDN,PH,TAIW,TH,VN)202401

main62180-0A030iMXGA10,ZVG10..BZP202103-202112

main62180-0A080iZSG10..SAP..G..GEN;ZSG10,ZVG10..SAP..E202411

main62180-0A090iZSG10..G..MA202112-202411

62211UGARNISH ASSY, FRONT PILLAR, RH

main62210-0A040-C0iZSG10..IDN202007-202212

BLACK,TRIM2#,3#

main62210-0A080-C0iZSG10,ZVG10..L,M202410

BLACK,TRIM2#,3#

main62210-0A100-A0iMXGA10..E;ZVG10..E..AGT;ZVG10..BZP..(BZ,GEN)202404-202412

FROMAGE,TRIM01

main62210-0A100-C0iMXGA10..G,N;ZVG10..G..AGT202201-202403

BLACK,TRIM2#

main62210-0A210-C0iZSG10..SAP..N202411

BLACK,TRIM2#,3#

main62210-0A220-C0iZSG10,ZVG10..E..MA202411

BLACK,TRIM2#,3#

62212BGARNISH ASSY, FRONT PILLAR, LH

main62220-0A040-C0iZSG10,ZVG10..MA202007-202111

BLACK,TRIM2#,3#

main62220-0A080-C0iZSG10,ZVG10..L,M202410

BLACK,TRIM2#,3#

main62220-0A100-A0iMXGA10..E;ZVG10..E..AGT;ZVG10..BZP..(BZ,GEN)202404-202412

FROMAGE,TRIM01

main62220-0A100-C0iMXGA10..G,N;ZVG10..G..AGT202404-202412

BLACK,TRIM01,2#

main62220-0A210-C0iZSG10..SAP..N202411

BLACK,TRIM2#,3#

main62220-0A220-C0iZSG10,ZVG10..E..MA202411

BLACK,TRIM2#,3#

62217GCLIP, FRONT PILLAR GARNISH

main62217-42050×4iZVG10..TWP..N;ZSG10..RHD..THP;ZVG10..E,G,L,M,R;ZSG10..LHD..E..GEN;ZSG10..(E,G,J)..(GCC,VN);ZSG10..(G,N)..(SA,TAIW,VN);ZSG10..(MAP,SAP,TWP)..(E,M);MXGA10,ZSG10..LHD.202401

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-0A010iZSG10..IDN202007-202212

main62311-0A020iZSG10,ZVG10..TWP202410

main62311-0A030iMXGA10,ZVG10..BZP202103-202112

main62311-0A070iZSG10,ZVG10..SAP202411

main62311-0A080iZSG10..G..MA202112-202411

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-0A010iZSG10..IDN202007-202212

main62312-0A020iZSG10,ZVG10..TWP202010-202410

main62312-0A030iMXGA10,ZVG10..BZP202501

main62312-0A040iZSG10,ZVG10..SAP202110-202411

main62312-0A080iZSG10,ZVG10..MA202411

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-0A010iZSG10..IDN202007-202212

main62331-0A020iZSG10,ZVG10..TWP202010-202410

main62331-0A030iMXGA10,ZVG10..BZP202201-202403

main62331-0A070iZSG10,ZVG10..SAP202110-202411

main62331-0A080iZSG10,ZVG10..E..MA202112-202410

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-0A010iZSG10..TH202401-202512

main62332-0A020iZSG10,ZVG10..TWP202410

main62332-0A030iMXGA10,ZVG10..BZP202103-202112

main62332-0A070iZSG10,ZVG10..SAP202110-202411

main62332-0A080iZSG10..G..MA202112-202411

62410AGARNISH ASSY, CENTER PILLAR, RH

main62410-0A010-C0iZSG10..RHD..THP..N;ZVG10..THP..(G,N)..GEN202007-202402

SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#,3#

main62410-0A020-C0iZSG10..J..GCC;ZVG10..(G,N)..GCC202410

BLACK,TRIM2#,3#

main62410-0A030-C0iMXGA10..G,N;ZVG10..G..AGT202201-202403

BLACK,TRIM2#

main62410-0A080-C0iZSG10..IDN202007-202212

BLACK,TRIM2#,3#

main62410-0A090-C0supersedes 62410-0A020-C0iZSG10,ZVG10..L,M202410

SRS AIR BAG-WITH(*DRP & SIDE & *CUSA & KNEE),BLACK,TRIM2#,3#

main62410-0A110-C0iZSG10..SAP..N202411

BLACK,TRIM2#,3#

main62410-0A120-C0iZSG10,ZVG10..E..SA;ZSG10..RHD..SAP..(E,G)..GEN202110-202411

SRS AIR BAG-WITH(*DRP & SIDE & *CUSA & KNEE),BLACK,TRIM2#,3#

main62410-0A130-C0iZSG10,ZVG10..E..MA202411

BLACK,TRIM2#,3#

62410BCLIP

main90467-10216×4iZSG10..J..GCC;ZSG10..LHD..N..GEN;ZSG10..(G,N)..(SA,TAIW);ZSG10..LHD..G..(GCC,GEN);ZSG10..(MAP,SAP,TWP)..(E,M);MXGA10,ZVG10..BZP,MAP,SAP,TWP202404

main90467-T0049×4iZSG10..IDN202108-202212

(L)

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-0A020-C0iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202402

BLACK,TRIM2#,3#

main62413-0A030-C0iZVG10..E..TAIW;ZVG10..TWP..(G,N);ZSG10..(J,N)..GCC;ZSG10..(G,J,N)..TAIW202010-202410

BLACK,TRIM2#,3#

main62413-0A040-C0iMXGA10..G,N;ZVG10..G..AGT202103-202112

BLACK,TRIM2#

main62413-0A080-C0iZSG10..SAP..(J,N)202110-202411

BLACK,TRIM2#,3#

main62413-0A090-C0iZSG10,ZVG10..E..MA202411

BLACK,TRIM2#,3#

62413CCLIP (FOR CENTER LOWER GARNISH)

main62489-0E010×6iMXGA10,ZVG10..BZP202103-202112

main90467-10161×6iZSG10,ZVG10..TWP202010-202410

main90467-T0021×6iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202402

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-0A020-C0iZSG10..VN;ZVG10..E..PH;ZSG10..LHD..E..GEN;ZSG10..RHD..THP..(E,G);ZVG10..THP..(E,G)..(GEN,IDN,TH,VN)202401

BLACK,TRIM2#,3#

main62414-0A030-C0iZSG10,ZVG10..L,M202108-202410

BLACK,TRIM2#

main62414-0A040-C0iMXGA10..G,N;ZVG10..G..AGT202103-202112

BLACK,TRIM2#

main62414-0A080-C0iZSG10..SAP..N202411

BLACK,TRIM2#,3#

main62414-0A090-C0iZSG10..G..MA202112-202411

BLACK,TRIM2#,3#

62420AGARNISH ASSY, CENTER PILLER, LH

main62420-0A010-C0iZSG10..RHD..THP..N;ZVG10..THP..(G,N)..GEN202007-202402

SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#,3#

main62420-0A020-C0iZSG10..J..GCC;ZVG10..(G,N)..GCC202410

BLACK,TRIM2#,3#

main62420-0A030-C0iMXGA10..G,N;ZVG10..G..AGT202404-202412

BLACK,TRIM2#

main62420-0A080-C0iZSG10..VN;ZVG10..E..PH;ZSG10..LHD..E..GEN;ZSG10..RHD..THP..(E,G);ZVG10..THP..(E,G)..(GEN,IDN,TH,VN)202401

BLACK,TRIM2#,3#

main62420-0A090-C0supersedes 62420-0A020-C0iZSG10,ZVG10..L,M202410

SRS AIR BAG-WITH(*DRP & SIDE & *CUSA & KNEE),BLACK,TRIM2#,3#

main62420-0A110-C0iZSG10,ZVG10..G..SA;ZSG10..LHD..SAP..G202110-202411

BLACK,TRIM2#,3#

main62420-0A120-C0iZSG10,ZVG10..E..SA;ZSG10..RHD..SAP..(E,G)..GEN202110-202411

SRS AIR BAG-WITH(*DRP & SIDE & *CUSA & KNEE),BLACK,TRIM2#,3#

main62420-0A130-C0iZSG10,ZVG10..E..MA202411

BLACK,TRIM2#,3#

62470AGARNISH ASSY, ROOF SIDE, INNER RH

main62470-0A040-C0iZSG10..VN;ZVG10..E..PH;ZSG10..LHD..E..GEN;ZSG10..RHD..THP..(E,G);ZVG10..THP..(E,G)..(GEN,IDN,TH,VN)202401

BLACK,TRIM2#,3#

main62470-0A060-C0iZSG10,ZVG10..L,M202410

BLACK,TRIM2#,3#

main62470-0A070-A0iMXGA10..E;ZVG10..E..AGT;ZVG10..BZP..(BZ,GEN)202404-202412

FROMAGE,TRIM01

main62470-0A070-C0iMXGA10..G,N;ZVG10..G..AGT202103-202112

BLACK,TRIM2#

main62470-0A120-C0iZSG10..SAP..(J,N)202110-202411

BLACK,TRIM2#,3#

main62470-0A130-C0iZSG10,ZVG10..E..MA202411

BLACK,TRIM2#,3#

main62470-0A150-C0iZSG10..SAP..N202411

BLACK,TRIM2#,3#

62471MCLIP

main90467-10167×2iMXGA10,ZVG10..BZP202501

62480AGARNISH ASSY, ROOF SIDE, INNER LH

main62480-0A040-C0iZSG10..IDN202007-202212

BLACK,TRIM2#,3#

main62480-0A060-C0iZVG10..E..TAIW;ZVG10..TWP..(G,N);ZSG10..(J,N)..GCC;ZSG10..(G,J,N)..TAIW202010-202410

BLACK,TRIM2#,3#

main62480-0A070-A0iMXGA10..E;ZVG10..E..AGT;ZVG10..BZP..(BZ,GEN)202404-202412

FROMAGE,TRIM01

main62480-0A070-C0iMXGA10..G,N;ZVG10..G..AGT202201-202403

BLACK,TRIM2#

main62480-0A120-C0iZSG10..SAP..(J,N)202110-202411

BLACK,TRIM2#,3#

main62480-0A130-C0iZSG10,ZVG10..E..MA202112-202410

BLACK,TRIM2#,3#

main62480-0A150-C0iZSG10..SAP..N202411

BLACK,TRIM2#,3#

62489ACLIP, ROOF SIDE INNER GARNISH

main90467-18017×8iMXGA10,ZVG10..BZP202501

62489BCLIP, ROOF SIDE INNER GARNISH

main90467-10188×2iZSG10,ZVG10..MA202007-202111

62489ECLIP, ROOF SIDE INNER GARNISH

main62489-0E010×6iMXGA10,ZVG10..BZP202103-202112

main90467-10161×6iZSG10,ZVG10..TWP202010-202410

main90467-T0021×6iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202402

62551ECLIP(FOR REAR SEAT SIDE GARNISH)

main62217-13010×2iMXGA10,ZVG10..BZP202501

62551FGARNISH, REAR SEAT SIDE, RH

main62551-0A030-C0iZSG10..VN;ZVG10..E..PH;ZSG10..LHD..E..GEN;ZSG10..RHD..THP..(E,G);ZVG10..THP..(E,G)..(GEN,IDN,TH,VN)202401

BLACK,TRIM2#,3#

main62551-0A050-C0iZSG10,ZVG10..L,M202410

BLACK,TRIM2#,3#

main62551-0A070-C0iMXGA10..G,N;ZVG10..G..AGT202103-202112

BLACK,TRIM2#

main62551-0A150-C0iZSG10..SAP..N202411

BLACK,TRIM2#,3#

main62551-0A210-C0iZSG10..SAP..(J,N)202110-202411

BLACK,TRIM2#,3#

main62551-0A220-C0iZSG10,ZVG10..E..MA202411

BLACK,TRIM2#,3#

62552FGARNISH, REAR SEAT SIDE, LH

main62552-0A030-C0iZSG10..VN;ZVG10..E..PH;ZSG10..LHD..E..GEN;ZSG10..RHD..THP..(E,G);ZVG10..THP..(E,G)..(GEN,IDN,TH,VN)202401

BLACK,TRIM2#,3#

main62552-0A050-C0iZSG10,ZVG10..L,M202410

BLACK,TRIM2#,3#

main62552-0A070-C0iMXGA10..G,N;ZVG10..G..AGT202103-202112

BLACK,TRIM2#

main62552-0A160-C0iZSG10..SAP..N202411

BLACK,TRIM2#,3#

main62552-0A210-C0iZSG10..SAP..(J,N)202110-202411

BLACK,TRIM2#,3#

main62552-0A220-C0iZSG10,ZVG10..E..MA202112-202410

BLACK,TRIM2#,3#

63395CCLIP(FOR ROOF SIDE INNER GARNISH)

main90467-09240×8iMXGA10,ZVG10..BZP202201-202403

67913PLATE, FRONT DOOR SCUFF, RH

main67913-0A010-C0iZSG10..IDN202007-202212

BLACK,TRIM2#,3#

main67913-0A020-C0iZSG10,ZVG10..L,M202108-202410

BLACK,TRIM2#

main67913-0A030-C0iMXGA10..G,N;ZVG10..G..AGT202501

BLACK,TRIM2#

main67913-0A070-C0iZSG10..SAP..N202411

BLACK,TRIM2#,3#

main67913-0A080-C0iZSG10..G..MA202112-202411

BLACK,TRIM2#,3#

67914BPLATE, FRONT DOOR SCUFF, LH

main67914-0A010-C0iZSG10..IDN202007-202212

BLACK,TRIM2#,3#

main67914-0A020-C0iZVG10..E..TAIW;ZVG10..TWP..(G,N);ZSG10..(J,N)..GCC;ZSG10..(G,J,N)..TAIW202010-202410

BLACK,TRIM2#,3#

main67914-0A030-C0iMXGA10..G,N;ZVG10..G..AGT202501

BLACK,TRIM2#

main67914-0A070-C0iZSG10..SAP..(J,N)202110-202411

BLACK,TRIM2#,3#

main67914-0A080-C0iZSG10..G..MA202112-202411

BLACK,TRIM2#,3#

67917APLATE, REAR DOOR SCUFF, RH

main67917-0A010-C0iZSG10..RHD..THP..N202401

BLACK,TRIM2#,3#

main67917-0A020-C0iZVG10..E..PH;ZVG10..(MAP,THP)..(E,G)..(GEN,IDN,MA,TH,VN)202401

BLACK,TRIM2#,3#

main67917-0A030-C0iZSG10..(J,N)..GCC;ZSG10..(G,J,N)..TAIW202010-202410

BLACK,TRIM2#,3#

main67917-0A040-C0iZVG10..L,M202108-202410

BLACK,TRIM2#

main67917-0A050-C0iMXGA10..E202404-202412

BLACK,TRIM2#

main67917-0A060-C0iZVG10..G..AGT202501

BLACK,TRIM2#

main67917-0A100-C0iZSG10..SAP..N202411

BLACK,TRIM2#,3#

main67917-0A110-C0iZVG10..SA202110-202411

BLACK,TRIM2#,3#

main67917-0A120-C0iZSG10..E..MA202112-202410

BLACK,TRIM2#,3#

67918APLATE, REAR DOOR SCUFF, LH

main67918-0A010-C0iZSG10..THP..(GEN,PH,TH,VN)202007-202402

BLACK,TRIM2#,3#

main67918-0A020-C0iZVG10..MA202007-202111

BLACK,TRIM2#,3#

main67918-0A030-C0iZSG10..M202410

BLACK,TRIM2#,3#

main67918-0A040-C0iZVG10..TWP..(E,G,N)202410

BLACK,TRIM2#,3#

main67918-0A050-C0iMXGA10..E202404-202412

BLACK,TRIM2#

main67918-0A060-C0iZVG10..G..AGT202501

BLACK,TRIM2#

main67918-0A100-C0iZSG10..SAP..(J,N)202110-202411

BLACK,TRIM2#,3#

main67918-0A110-C0iZVG10..SA202411

BLACK,TRIM2#,3#

main67918-0A120-C0iZSG10..E..MA202112-202410

BLACK,TRIM2#,3#

67923ACLAMP, DOOR SCUFF PLATE, NO.1

main67923-20090×2iZSG10..MAP..G;ZSG10,ZVG10..SAP202007-202411

7104

9046705172

main90467-05172

9046713082A0

main90467-13082A0

40 parts on this diagram · 1 diagram in section
