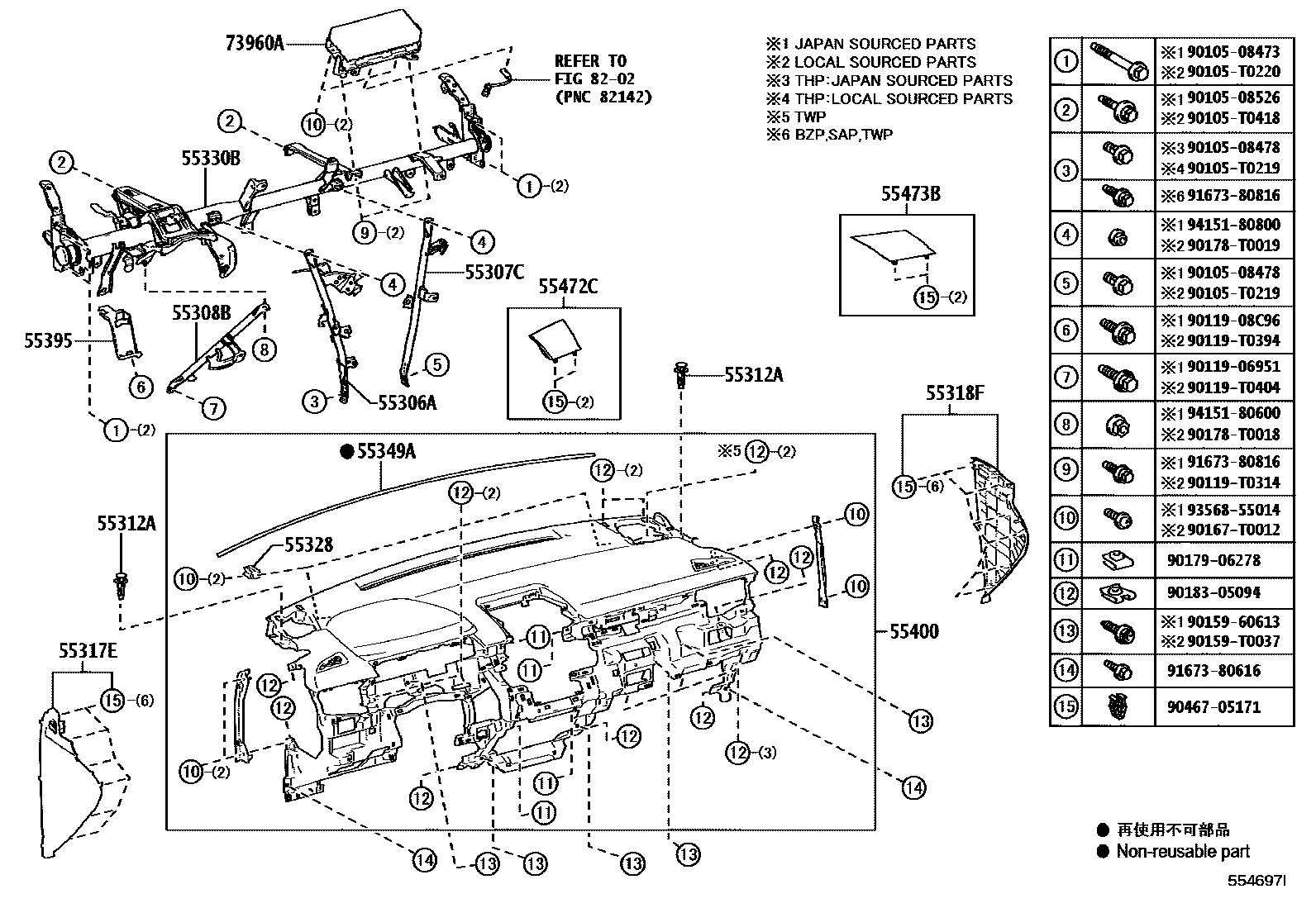

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1DRIVER SIDE 0004 1CENTER 0005 1CENTER 0006 1PASSENGER SIDE 0007 1PASSENGER SIDE 0008 1 0010 1 0011 1DRIVER SIDE 0012 1CENTER 0013 1PASSENGER SIDE

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-0A030iZSG10..LHD..THP;ZVG10..LHD..THP..E202007-202411

main55306-0A040iMXGA10,ZVG10..BZP202103-202412

main55306-0A050iZSG10..MAP..G;ZSG10,ZVG10..RHD..SAP202007-202512

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-0A050iZSG10..LHD..SAP202007-202411

main55307-0A060iMXGA10,ZVG10..BZP202103-202412

main55307-0A070iZSG10..MAP..G;ZSG10,ZVG10..RHD..SAP202007-202512

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-0A030iZSG10..LHD..THP;ZVG10..LHD..THP..E202007-202411

main55308-0A040iMXGA10,ZVG10..BZP202103-202412

main55308-0A050iZSG10,ZVG10..MAP..E202007-202512

main55308-0A120iZSG10..LHD..SAP..N;ZVG10..LHD..(THP,TWP);ZSG10..(E,G,M,N)..(TAIW,VN);ZSG10..LHD..(SAP,TWP)..G..(GCC,GEN);ZSG10..LHD..(THP,TWP)..(E,J)..(GCC,GEN)202401

55312ACLIP, INSTRUMENT PANEL

main52161-0K040iMXGA10,ZVG10..BZP202007-202403

(L)

main52161-0K040iZSG10,ZVG10..MA202112-202411

main52161-0K060iZSG10,ZVG10..TWP202010-202410

main52161-16010iZSG10,ZVG10..SAP202110-202411

sub52161-0K040

main52161-16010iMXGA10,ZVG10..BZP202007-202403

(J)

sub52161-0K040

55317EPANEL, INSTRUMENT SIDE, NO.1

main55317-0A020-C0iZSG10..VN;ZSG10..G..SA;ZVG10..E..PH;ZSG10..SAP..E;ZSG10..LHD..SAP..G;ZSG10..LHD..E..GEN;ZSG10..RHD..THP..(E,G);ZVG10..(SAP,THP)..(E,G)..(GEN,IDN,SA,TH,VN)202110-202411

BLACK,TRIM2#

main55317-0A020-C0iZSG10..N..SA;ZVG10..G..PH;ZSG10..LHD..SAP..N;ZSG10..RHD..THP..N202007-202411

BLACK,TRIM2#,3#

main55317-0A030-C0iZSG10,ZVG10..L,M202010-202410

BLACK,TRIM2#,3#

main55317-0A030-C0iZSG10,ZVG10..TWP..(E,G,J,N)202108-202410

BLACK,TRIM2#

main55317-0A030-C0iZSG10..G..GCC;ZVG10..E..GCC202010-202410

BLACK,TRIM0#,2#,3#

main55317-0A060-C0iMXGA10..G,N;ZVG10..G..AGT202103-202412

BLACK,TRIM0#,2#

main55317-0A060-C0iMXGA10..G,N;ZVG10..G..AGT202103-202412

BLACK,TRIM2#

main55317-0A110-C0iZSG10,ZVG10..E..MA202112-202411

BLACK,TRIM2#,3#

main55317-0A110-C0iZSG10,ZVG10..E..MA202411

BLACK,TRIM2#

55318FPANEL, INSTRUMENT SIDE, NO.2

main55318-0A010-C0iZSG10..VN;ZSG10..G..SA;ZVG10..E..PH;ZSG10..SAP..E;ZSG10..LHD..SAP..G;ZSG10..LHD..E..GEN;ZSG10..RHD..THP..(E,G);ZVG10..(SAP,THP)..(E,G)..(GEN,IDN,SA,TH,VN)202007-202411

BLACK,TRIM2#,3#

main55318-0A010-C0iZSG10..SAP..(J,N)202110-202411

BLACK,TRIM2#

main55318-0A030-C0iZSG10..(J,N)..GCC;ZVG10..(G,N)..GCC202010-202410

BLACK,TRIM0#,2#,3#

main55318-0A030-C0iZSG10..G..GCC;ZVG10..E..GCC202010-202410

BLACK,TRIM2#,3#

main55318-0A030-C0iZSG10,ZVG10..TWP..(E,G,J,N)202410

BLACK,TRIM2#

main55318-0A040-C0iZSG10,ZVG10..(E,G,J,N)..TAIW202010-202410

BLACK,TRIM2#,3#

main55318-0A040-C0iZSG10,ZVG10..L,M202108-202410

BLACK,TRIM2#

main55318-0A060-C0iMXGA10..G,N;ZVG10..G..AGT202103-202412

BLACK,TRIM0#,2#

main55318-0A060-C0iMXGA10..E;ZVG10..E..AGT;ZVG10..BZP..(BZ,GEN)202103-202412

BLACK,TRIM2#

main55318-0A110-C0iZSG10..G..MA202112-202411

BLACK,TRIM2#,3#

main55318-0A110-C0iZVG10..R202411

BLACK,TRIM2#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-12430iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202411

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-0A040iZSG10..LHD..THP;ZVG10..LHD..THP..E202007-202402

main55330-0A050iZSG10,ZVG10..TWP202010-202410

main55330-0A060iMXGA10,ZVG10..BZP202103-202403

main55330-0A070iZSG10..IDN202007-202402

main55330-0A110iZSG10..VN;ZVG10..LHD..THP;ZSG10..LHD..E..GEN202401

main55330-0A120iZSG10..LHD..SAP202110-202411

main55330-0A130iZSG10,ZVG10..RHD..SAP202110-202411

main55330-0A140iZSG10..G..MA202112-202411

main55330-0A200iZSG10,ZVG10..TWP202410

main55330-0A210iMXGA10,ZVG10..BZP202404-202412

main55330-0A220iZSG10..TH202401-202512

main55330-0A230iZSG10..LHD..SAP202411

main55330-0A240iZSG10,ZVG10..RHD..SAP202411

main55330-0A250iZSG10,ZVG10..MA202411

main55330-0A260iMXGA10,ZVG10..BZP202501

55349ACUSHION, INSTRUMENT PANEL

main55349-0D240iZSG10..LHD..E;ZSG10..RHD..THP;ZSG10..(MAP,SAP)..E;ZSG10..(G,N)..(SA,VN);ZSG10..LHD..SAP..(G,N);ZVG10..(MAP,SAP,THP)..(E,G,R)202007-202411

main55349-0D280iZSG10,ZVG10..TWP202010-202410

main55349-0D300iMXGA10,ZVG10..BZP202103-202412

55395BRACKET, INSTRUMENT PANEL TO PEDAL

main55395-0A020iZSG10..LHD..THP;ZVG10..LHD..THP..E202007-202411

main55395-0A030iMXGA10,ZVG10..BZP202103-202412

main55395-0A070iZSG10,ZVG10..RHD..SAP202110-202411

main55395-10010iZSG10..E..MA;ZSG10..RHD..THP..GEN;ZVG10..RHD..(MAP,THP)..(E,G,R)202007-202512

55400PAD ASSY, INSTRUMENT PANEL SAFETY

main55400-0A010-C0iZVG10..G..PH202401

BLACK,TRIM2#

main55400-0A010-C0iZSG10..VN;ZSG10..LHD..E..GEN;ZVG10..LHD..THP..E202007-202402

BLACK,TRIM2#,3#

main55400-0A020-C0iZVG10..E..TAIW;ZVG10..TWP..(G,N);ZSG10..(J,N)..GCC;ZSG10..(G,J,N)..TAIW202010-202410

BLACK,TRIM0#,2#,3#

main55400-0A020-C0iZSG10,ZVG10..L,M202108-202410

BLACK,TRIM2#

main55400-0A020-C0iZSG10,ZVG10..L,M202010-202410

BLACK,TRIM2#,3#

main55400-0A030-C0iMXGA10..G,N;ZVG10..G..AGT202103-202412

BLACK,TRIM0#,2#

main55400-0A030-C0iMXGA10..E;ZVG10..E..AGT;ZVG10..BZP..(BZ,GEN)202103-202412

BLACK,TRIM2#

main55400-0A040-C0iZSG10,ZVG10..MA202007-202512

BLACK,TRIM2#,3#

main55400-0A040-C0iZSG10..RHD..THP..N202401

BLACK,TRIM2#

main55400-0A100-C1iZSG10..LHD..SAP..G202110-202411

BLACK,TRIM2#,3#

main55400-0A100-C1iZSG10..SAP..N..GEN202110-202411

BLACK,TRIM2#

main55400-0A110-C1iZSG10..N..SA202110-202411

BLACK,TRIM2#,3#

main55400-0A110-C1iZSG10..RHD..SAP..(J,N)202110-202411

BLACK,TRIM2#

55472CPANEL, INSTRUMENT PANEL SPEAKER, NO.1

main55472-0A010-C0iZSG10..VN;ZSG10..LHD..E..GEN;ZVG10..LHD..THP..E202401

BLACK,TRIM2#

main55472-0A010-C0iZVG10..G..PH202007-202402

BLACK,TRIM2#,3#

main55472-0A010-C1iZSG10..LHD..SAP..G202110-202411

BLACK,TRIM2#,3#

main55472-0A010-C1iZSG10..LHD..SAP..G202110-202411

BLACK,TRIM2#

main55472-0A020-C0iZVG10..E..TAIW;ZVG10..TWP..(G,N);ZSG10..(J,N)..GCC;ZSG10..(G,J,N)..TAIW202010-202410

BLACK,TRIM2#,3#

main55472-0A020-C0iZSG10..G..GCC;ZVG10..E..GCC202010-202410

BLACK,TRIM0#,2#,3#

main55472-0A020-C0iZSG10,ZVG10..L,M202108-202410

BLACK,TRIM2#

main55472-0A030-C0iMXGA10..E;ZVG10..E..AGT;ZVG10..BZP..(BZ,GEN)202103-202412

BLACK,TRIM0#,2#

main55472-0A030-C0iMXGA10..E;ZVG10..E..AGT;ZVG10..BZP..(BZ,GEN)202103-202412

BLACK,TRIM2#

main55472-0A040-C0iZSG10,ZVG10..RHD..THP..(E,G)202007-202402

BLACK,TRIM2#,3#

main55472-0A040-C0iZSG10..RHD..THP..N202401

BLACK,TRIM2#

main55472-0A120-C1iZSG10..N..SA202110-202411

BLACK,TRIM2#,3#

main55472-0A120-C1iZSG10..RHD..SAP..(J,N)202110-202411

BLACK,TRIM2#

main55472-0A130-C0iZVG10..R202411

BLACK,TRIM2#

main55472-0A130-C0iZSG10..G..MA202112-202411

BLACK,TRIM2#,3#

55473BPANEL, INSTRUMENT PANEL SPEAKER, NO.2

main55473-0A010-C0iZVG10..G..PH202401

BLACK,TRIM2#

main55473-0A010-C0iZVG10..G..PH202007-202402

BLACK,TRIM2#,3#

main55473-0A010-C1iZSG10..SAP..N..GEN202110-202411

BLACK,TRIM2#

main55473-0A010-C1iZSG10..SAP..G..GEN202110-202411

BLACK,TRIM2#,3#

main55473-0A020-C0iZSG10..G..GCC;ZVG10..E..GCC202010-202410

BLACK,TRIM2#,3#

main55473-0A020-C0iZVG10..E..TAIW;ZVG10..TWP..(G,N);ZSG10..(J,N)..GCC;ZSG10..(G,J,N)..TAIW202010-202410

BLACK,TRIM0#,2#,3#

main55473-0A020-C0iZSG10,ZVG10..TWP..(E,G,J,N)202108-202410

BLACK,TRIM2#

main55473-0A030-C0iMXGA10..G,N;ZVG10..G..AGT202103-202412

BLACK,TRIM2#

main55473-0A030-C0iMXGA10..E;ZVG10..E..AGT;ZVG10..BZP..(BZ,GEN)202103-202412

BLACK,TRIM0#,2#

main55473-0A040-C0iZSG10..RHD..THP..N202007-202402

BLACK,TRIM2#,3#

main55473-0A040-C0iZSG10,ZVG10..RHD..THP..(E,G)202401

BLACK,TRIM2#

main55473-0A110-C1iZSG10..N..SA202110-202411

BLACK,TRIM2#

main55473-0A110-C1iZSG10..N..SA202110-202411

BLACK,TRIM2#,3#

main55473-0A120-C0iZVG10..R202112-202411

BLACK,TRIM2#,3#

main55473-0A120-C0iZSG10,ZVG10..E..MA202411

BLACK,TRIM2#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-0A010iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202512

main73960-0A050iMXGA10,ZVG10..BZP202103-202412

8202

9010508473

main90105-08473

9010508478

main90105-08478

9010508526

main90105-08526

90105T0219

main90105-T0219

90105T0220

main90105-T0220

90105T0418

main90105-T0418

9011906951

main90119-06951

9011908C96

main90119-08C96

90119T0314

main90119-T0314

90119T0394

main90119-T0394

90119T0404

main90119-T0404

9015960613

main90159-60613

90159T0037

main90159-T0037

90167T0012

main90167-T0012

90178T0018

main90178-T0018

90178T0019

main90178-T0019

9017906278

main90179-06278

9018305094

main90183-05094

9046705171

main90467-05171

9167380616

main91673-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180600

main94151-80600

9415180800

main94151-80800

39 parts on this diagram · 12 diagrams in section
