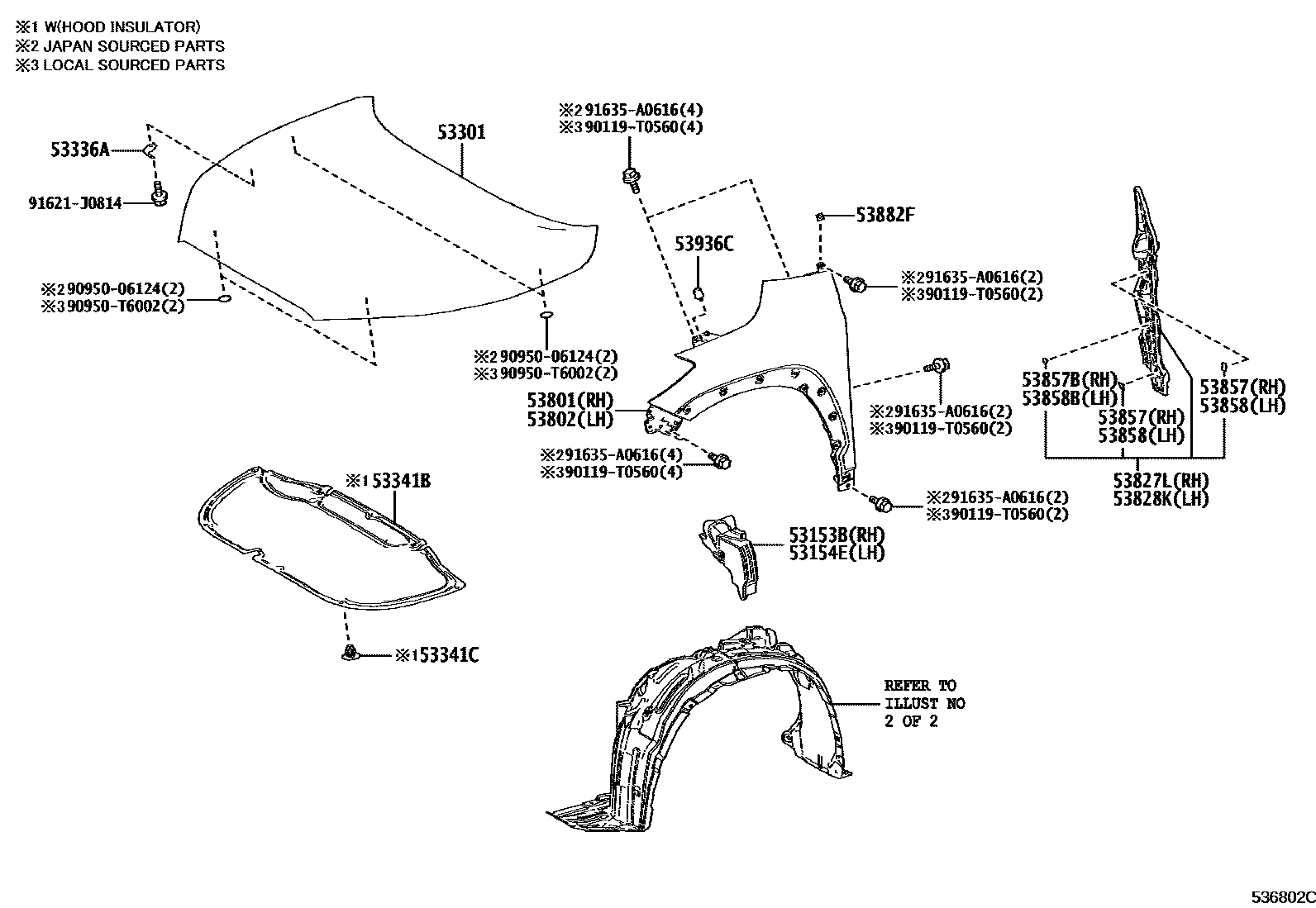

HOOD & FRONT FENDER

0001 1 0002 1 0003 1 0004 1FENDER LINER 0005 1FENDER LINER 0006 1FENDER LINER 0007 1FENDER LINER

53153BGUIDE, FRONT SIDE AIR

main53153-0A010iZSG10..TH202007-202512

main53153-0A020iZSG10,ZVG10..TWP202010-202410

main53153-0A030iMXGA10,ZVG10..BZP202103-202412

53154EGUIDE, FRONT SIDE AIR, NO.2

main53154-0A010iZSG10,ZVG10..MAP..E202007-202512

main53154-0A020iZSG10,ZVG10..TWP202010-202410

main53154-0A030iMXGA10,ZVG10..BZP202103-202412

53301HOOD SUB-ASSY

main53301-0A020iZSG10..VN;ZVG10..THP..(E,G);ZSG10..LHD..E..GEN;ZSG10..RHD..THP..GEN202007-202512

main53301-0A030iZSG10,ZVG10..TWP202010-202410

main53301-0A040iMXGA10,ZVG10..BZP202103-202412

main53301-0A090iZSG10,ZVG10..SAP202110-202411

main53301-0A100iZSG10..G..MA202112-202411

53336ABRACKET, HOOD STAY

main53336-02040iZSG10,ZVG10..THP..(GEN,IDN,PH,TH,VN)202007-202411

main53336-02040iZSG10..IDN202112-202512

(L)

main53336-02050iZSG10,ZVG10..TWP202410

(L)

main53336-02050iZSG10,ZVG10..TWP202010-202410

main53336-02080iMXGA10,ZVG10..BZP202103-202412

main53336-0A060iZSG10,ZVG10..MA202411

(L)

main53336-0A060iZSG10..G..MA202112-202411

main53336-16010iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202112-202512

(J)

53341BINSULATOR, HOOD

main53341-0A010iZSG10..LHD..SAP..G202204-202302

SUDAN SPEC

main53341-0A010iZSG10,ZVG10..E..MA202007-202512

main53341-0A030iMXGA10,ZVG10..BZP..(E,G)202103-202412

main53341-0A070iZSG10,ZVG10..MA202112-202411

main53341-0A090iZSG10..G..GCC202410

SUDAN,LIBYA SPEC

main53341-0A090iZSG10..G..GCC202209-202410

SUDAN SPEC

main53341-0A090iZVG10..TWP;ZSG10..(G,M,N)..TAIW202206-202410

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iZSG10..TH202007-202512

(J)

main90467-09050iMXGA10,ZVG10..BZP..(E,G)202103-202412

main90467-09050iZSG10..LHD..SAP..G202204-202410

SUDAN SPEC,(J)

main90467-09050iZSG10..G..GCC202410

SUDAN,LIBYA SPEC,(J)

main90467-T0014iZVG10..SA202007-202512

(L)

main90467-T0014iZSG10..LHD..SAP..G202204-202410

SUDAN SPEC,(L)

main90467-T0014iZSG10..G..GCC202410

SUDAN,LIBYA SPEC,(L)

53801FENDER SUB-ASSY, FRONT RH

main53801-0A050iZSG10,ZVG10..MA202007-202512

main53801-0A060iZSG10,ZVG10..SAP202110-202411

main53801-0A070iZSG10,ZVG10..MA202112-202411

main53801-K1010iZVG10..TWP;ZSG10..J..GCC;ZSG10..N..TAIW;ZSG10..TWP..(G,M)202010-202412

53802FENDER SUB-ASSY, FRONT LH

main53802-0A050iZSG10..IDN202007-202512

main53802-0A060iZSG10,ZVG10..SAP202110-202411

main53802-0A070iZSG10,ZVG10..MA202112-202411

main53802-K1010iMXGA10,ZVG10..BZP202010-202412

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-0A010iZSG10..TH202007-202512

main53827-0A020iZSG10,ZVG10..TWP202010-202410

main53827-0A030iMXGA10,ZVG10..BZP202103-202412

main53827-0A070iZSG10,ZVG10..SAP..(E,G)202110-202411

main53827-0A080iZSG10..G..MA202112-202411

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-0A010iZSG10..VN;ZVG10..THP..(E,G);ZSG10..LHD..E..GEN;ZSG10..RHD..THP..GEN202007-202512

main53828-0A020iZSG10,ZVG10..TWP202010-202410

main53828-0A030iMXGA10,ZVG10..BZP202103-202412

main53828-0A070iZSG10,ZVG10..SAP..(E,G)202110-202411

main53828-0A080iZSG10..G..MA202112-202411

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-12010iZSG10..TWP..G;ZVG10..MAP,TWP;ZSG10..(MAP,TWP)..(E,J,M,N)202007-202512

53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011iZSG10..MAP..G;ZSG10,ZVG10..SAP..(E,G)202007-202512

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-12010iMXGA10,ZVG10..BZP202007-202512

53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011iMXGA10,ZVG10..BZP202007-202512

53882FSEAL, FRONT FENDER

main53882-33060iMXGA10,ZVG10..BZP202007-202512

53936CCUSHION

main90541-09145iMXGA10,ZVG10..BZP202007-202512

90119T0560

main90119-T0560

9095006124

main90950-06124

90950T6002

main90950-T6002

91621J0814

main91621-J0814

91635A0616

main91635-A0616

21 parts on this diagram · 7 diagrams in section
