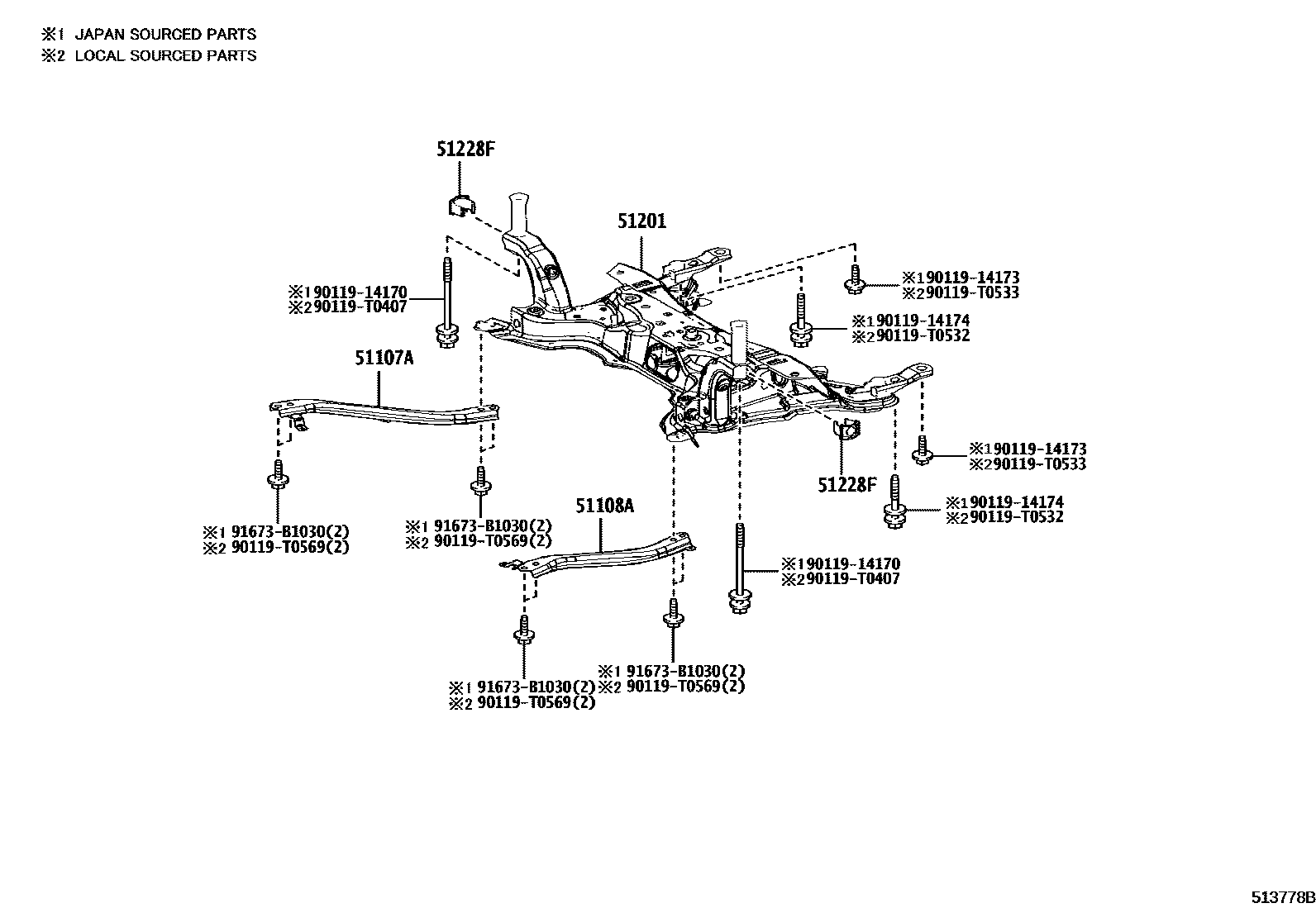

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION CROSSMEMBER 0002 1UNDER COVER

51107AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR RH

main51107-0A010iZSG10,ZVG10..MA202007-202111

main51107-0A030iMXGA10,ZVG10..BZP202103-202112

51108AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR LH

main51108-0A010iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202402

main51108-0A030iMXGA10,ZVG10..BZP202201-202403

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-0A011iZSG10..MAP..G202007-202411

main51201-0A021iZSG10,ZVG10..TWP202010-202410

main51201-0A031iMXGA10,ZVG10..BZP202307-202403

MADE IN BRAZIL

main51201-0A050iZSG10,ZVG10..SAP202411

MADE IN SOUTH AFRICA

51228FPLATE, FRONT SUSPENSION MEMBER DUMPER

main51228-02070×2iZSG10,ZVG10..TWP202410

main51228-0A010×2iZSG10,ZVG10..SAP202411

main51228-47010×2iMXGA10,ZVG10..BZP202501

main51228-F4020×2iZSG10..IDN202007-202212

9011914170

main90119-14170

9011914173

main90119-14173

9011914174

main90119-14174

90119T0407

main90119-T0407

90119T0532

main90119-T0532

90119T0533

main90119-T0533

90119T0569

main90119-T0569

91673B1030

main91673-B1030

12 parts on this diagram · 2 diagrams in section
