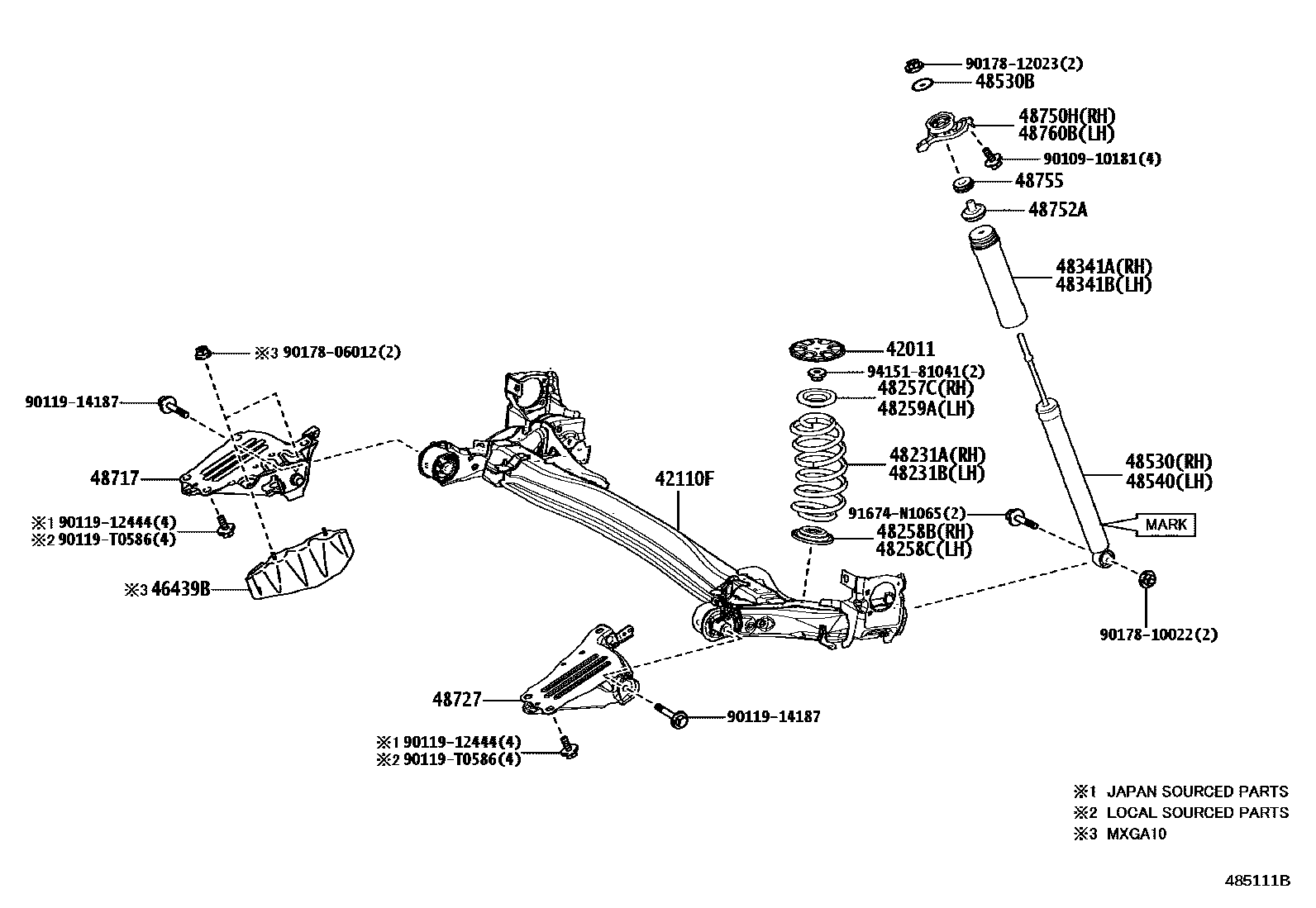

REAR SPRING & SHOCK ABSORBER

42011SEAT SUB-ASSY, REAR SPRING

main42011-0A010×2iZSG10..TH202401-202512

main42011-0A030×2iMXGA10,ZVG10..BZP202501

main42011-0A090×2iZSG10,ZVG10..SAP202411

42110FBEAM ASSY, REAR AXLE

main42110-0A030iZSG10..IDN202007-202212

main42110-0A040iZSG10,ZVG10..TWP202010-202410

main42110-0A050iMXGA10,ZVG10..BZP202201-202403

main42110-0A110iZSG10,ZVG10..SAP202110-202411

main42110-0A120iZSG10,ZVG10..E..MA202112-202410

main42110-0A130iZSG10..TH202401-202512

main42110-0A140iZSG10,ZVG10..TWP202410

main42110-0A150iMXGA10,ZVG10..BZP202501

main42110-0A160iZSG10,ZVG10..MA202411

main42110-0A170iZSG10,ZVG10..SAP202411

46439BINSULATOR, PARKING BRAKE CABLE HEAT

main46439-0A040iMXGA10202501

48231ASPRING, COIL, REAR RH

main48231-0A040iZSG10..THP..(GEN,PH,TH,VN)202007-202402

main48231-0A050iZVG10..MAP202007-202410

main48231-0A060iZSG10..TWP..(G,J,N)202010-202410

main48231-0A070iZVG10..TWP..(E,G,N)202010-202410

main48231-0A080iMXGA10202404-202412

main48231-0A090iZVG10..BZP202501

main48231-0A210iZVG10..R202411

GR SPORT

main48231-0A220iZSG10..M202108-202410

main48231-0A230iZVG10..L,M202108-202410

main48231-0A250iMXGA10..E202501

GR SPORT

main48231-0A260supersedes 48231-0A040iZSG10..E..MA202301-202410

GR SPORT

48231BSPRING, COIL, REAR LH

main48231-0A040iZSG10..SAP;ZSG10..MAP..G202007-202411

main48231-0A050iZVG10..MAP202007-202410

main48231-0A060iZSG10,ZVG10..TWP..(E,G,J,N)202410

main48231-0A070iZVG10..TWP..(E,G,N)202010-202410

main48231-0A080iMXGA10202201-202403

main48231-0A090iZVG10..BZP202103-202112

main48231-0A210iZVG10..R202411

GR SPORT

main48231-0A220iZSG10..M202410

main48231-0A230iZVG10..L,M202108-202410

main48231-0A250iMXGA10..E202501

GR SPORT

main48231-0A260supersedes 48231-0A040iZSG10..E..VN202112-202402

GR SPORT

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-02110iZSG10,ZVG10..TWP202410

main48257-02120iMXGA10,ZVG10..BZP202501

main48257-06050iZSG10..IDN202007-202212

main48257-0A020iZSG10,ZVG10..E..MA202112-202410

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-0A010iZSG10..VN;ZVG10..THP..(E,G);ZSG10..LHD..E..GEN;ZSG10..RHD..THP..GEN202401

main48258-0A020iZSG10,ZVG10..TWP202410

main48258-0A030iMXGA10,ZVG10..BZP202501

main48258-0A070iZSG10,ZVG10..SAP202411

main48258-0A080iZSG10,ZVG10..MA202411

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-0A010iZSG10..VN;ZVG10..THP..(E,G);ZSG10..LHD..E..GEN;ZSG10..RHD..THP..GEN202401

main48258-0A020iZSG10,ZVG10..TWP202010-202410

main48258-0A030iMXGA10,ZVG10..BZP202501

main48258-0A070iZSG10,ZVG10..SAP202411

main48258-0A080iZSG10,ZVG10..MA202411

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-02110iZSG10,ZVG10..TWP202410

main48257-02120iMXGA10,ZVG10..BZP202501

main48257-06050iZSG10..(SAP,THP)..E;ZSG10..(G,N)..(SA,VN);ZSG10..LHD..SAP..(G,N);ZVG10..(SAP,THP)..(E,G);ZSG10..RHD..THP..(G,N)..GEN202401

main48257-0A020iZSG10,ZVG10..E..MA202112-202410

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-0A020iMXGA10,ZVG10..BZP202501

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-0A020iMXGA10,ZVG10..BZP202201-202403

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-0A040iZSG10..VN;ZSG10..LHD..E..GEN;ZSG10..RHD..THP..GEN202401

MARK 48530-0A040

main48530-0A050iZVG10..THP..(E,G)202401

MARK 48530-0A050

main48530-0A060iZSG10..(G,N)..TAIW202410

MARK 48530-0A060

main48530-0A070iZVG10..(E,G,N)..TAIW202410

MARK 48530-0A070

main48530-0A090iMXGA10,ZVG10..BZP202201-202306

MARK 48530-0A090

main48530-0A091iMXGA10,ZVG10..BZP202404-202412

MARK 48530-0A091

main48530-0A120iZSG10..GCC202410

MARK 48530-0A120

main48530-0A130iZVG10..GCC202010-202410

MARK 48530-0A130

main48530-0A160iZVG10..R202411

MARK 48530-0A160

main48530-0A170iZSG10..SAP202110-202411

MARK 48530-0A170

main48530-0A180iZVG10..SA202110-202411

MARK 48530-0A180

main48530-0A190iZSG10..G..MA202112-202411

MARK 48530-0A190

main48530-0A200iZVG10..E..MA202411

MARK 48530-0A200

main48530-0A220iZSG10..M202410

MARK 48530-0A220

main48530-0A230iZVG10..L,M202410

MARK 48530-0A230

main48530-0A210iZVG10..E..(PH,TH)202112-202402

MARK 48530-0A210,GR SPORT

main48530-0A240supersedes 48530-0A190iZSG10..E..MA202301-202410

MARK 48530-0A240,GR SPORT

main48530-0A250iMXGA10..E202203-202306

MARK 48530-0A250,GR SPORT

main48530-0A251iMXGA10..E202404-202412

MARK 48530-0A251,GR SPORT

main48530-0A260iZSG10..SAP..E;ZSG10..LHD..SAP..G202204-202411

MARK 48530-0A260,GR SPORT

main48530-0A290iZSG10..E..VN202112-202402

MARK 48530-0A290,GR SPORT

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03021×2iZSG10,ZVG10..MA202007-202111

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-0A040iZSG10..THP..(GEN,PH,TH,VN)202007-202402

MARK 48530-0A040

main48530-0A050iZVG10..MA202007-202111

MARK 48530-0A050

main48530-0A060iZSG10..(G,N)..TAIW202410

MARK 48530-0A060

main48530-0A070iZVG10..(E,G,N)..TAIW202010-202410

MARK 48530-0A070

main48530-0A090iMXGA10,ZVG10..BZP202201-202306

MARK 48530-0A090

main48530-0A091iMXGA10,ZVG10..BZP202307-202403

MARK 48530-0A091

main48530-0A120iZSG10..GCC202010-202410

MARK 48530-0A120

main48530-0A130iZVG10..GCC202010-202410

MARK 48530-0A130

main48530-0A160iZVG10..R202411

MARK 48530-0A160

main48530-0A170iZSG10..SAP202110-202411

MARK 48530-0A170

main48530-0A180iZVG10..SA202110-202411

MARK 48530-0A180

main48530-0A190iZSG10..G..MA202112-202411

MARK 48530-0A190

main48530-0A200iZVG10..MA202112-202410

MARK 48530-0A200

main48530-0A220iZSG10..M202108-202410

MARK 48530-0A220

main48530-0A230iZVG10..L,M202108-202410

MARK 48530-0A230

main48530-0A210iZVG10..E..(PH,TH)202112-202402

MARK 48530-0A210,GR SPORT

main48530-0A240supersedes 48530-0A190iZSG10..E..MA202301-202410

MARK 48530-0A240,GR SPORT

main48530-0A250iMXGA10..E202203-202306

MARK 48530-0A250,GR SPORT

main48530-0A251iMXGA10..E202404-202412

MARK 48530-0A251,GR SPORT

main48530-0A260iZSG10..SAP..E;ZSG10..LHD..SAP..G202204-202411

MARK 48530-0A260,GR SPORT

main48530-0A290iZSG10..E..VN202112-202402

MARK 48530-0A290,GR SPORT

48717BRACKET, REAR SUSPENSION ARM, RH

main48717-0A010iZSG10,ZVG10..MA202007-202111

main48717-0A020iZSG10,ZVG10..TWP202410

main48717-0A030iMXGA10,ZVG10..BZP202501

main48717-0A080iZSG10,ZVG10..SAP202110-202411

48727BRACKET, REAR SUSPENSION ARM, LH

main48727-0A010iZSG10..LHD..E..GEN;ZSG10..RHD..THP..GEN;ZSG10..(E,N)..(MA,VN);ZVG10..(MAP,THP)..(E,G,R)202401

main48727-0A020iZSG10,ZVG10..TWP202410

main48727-0A030iMXGA10,ZVG10..BZP202201-202403

main48727-0A080iZSG10,ZVG10..SAP202110-202411

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-0A030iZSG10..TH202401-202512

main48750-0A050iMXGA10,ZVG10..BZP202201-202403

main48750-0A100iZSG10,ZVG10..SAP202110-202411

48752ASTOPPER, REAR SUSPENSION SUPPORT

main48752-0A010×2iZSG10,ZVG10..MA202007-202111

main48752-0A020×2iZSG10,ZVG10..TWP202410

main48752-0A030×2iMXGA10,ZVG10..BZP202201-202210

main48752-0A100×2iZSG10..E;ZSG10..(G,N)..(SA,VN);ZSG10..LHD..SAP..(G,N);ZSG10..RHD..THP..(G,N)..GEN;ZVG10..(MAP,SAP,THP)..(E,G,R)202401

main48752-0A110×2iMXGA10,ZVG10..BZP202404-202412

48755SUPPORT, REAR SUSPENSION

main48755-0A010×2iZSG10,ZVG10..MA202007-202111

main48755-0A020×2iZSG10,ZVG10..TWP202010-202410

main48755-0A030×2iMXGA10,ZVG10..BZP202103-202112

main48755-0A100×2iZSG10..IDN202211-202212

main48755-0A110×2iMXGA10,ZVG10..BZP202501

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48760-0A030iZSG10..TH202401-202512

main48760-0A050iMXGA10,ZVG10..BZP202501

main48760-0A100iZSG10,ZVG10..SAP202110-202411

9010910181

main90109-10181

9011912444

main90119-12444

9011914187

main90119-14187

90119T0586

main90119-T0586

9017806012

main90178-06012

9017810022

main90178-10022

9017812023

main90178-12023

91674N1065

main91674-N1065

9415181041

main94151-81041

29 parts on this diagram · 1 diagram in section
