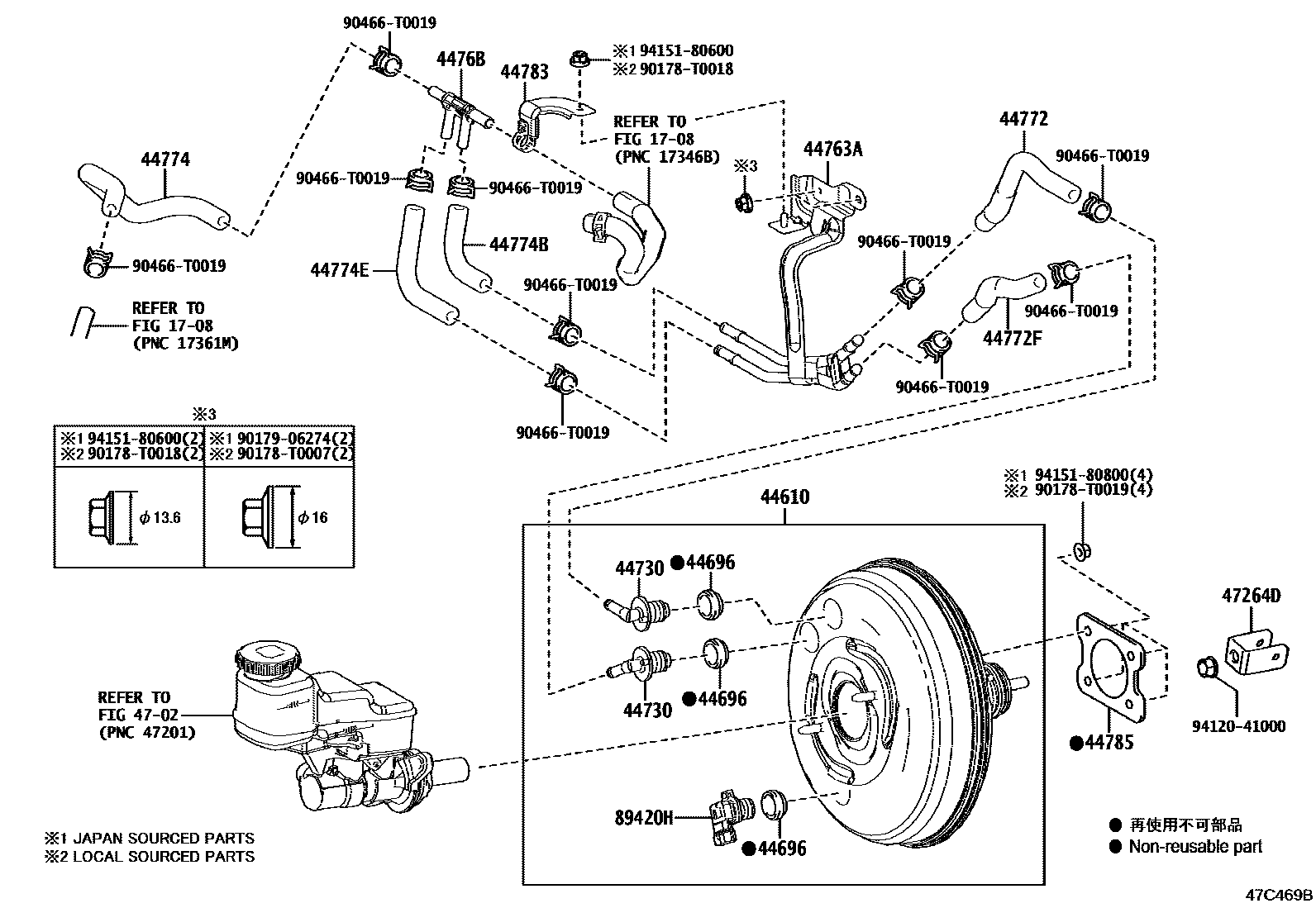

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

1708

44610BOOSTER ASSY, BRAKE

main44610-0A030iZSG10..TWP202010-202410

main44610-0A050iMXGA10202103-202412

main44610-16670iZSG10..VN;ZSG10..LHD..E..GEN;ZSG10..LHD..SAP..(G,N)202007-202411

main44610-16680iZSG10..MAP..G;ZSG10..RHD..SAP202007-202512

44696GROMMET, CHECK VALVE

main90480-24439iMXGA10202007-202512

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-52010iZSG10..TWP..G;ZSG10..(MAP,TWP)..(E,J,M,N)202007-202512

44763ATUBE, HOSE TO HOSE, NO.1

main44763-02320iZSG10..LHD..THP202007-202411

4476BEJECTOR, BRAKE BOOSTER VACUUM

main4476B-48010iZSG10..MA202007-202512

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-02400iZSG10..LHD..THP202007-202411

main44772-12780iMXGA10202103-202412

44772FHOSE, CHECK VALVE TO CHECK VALVE

main44772-02410iZSG10..TWP202007-202411

44774HOSE, UNION TO CONNECTOR TUBE

main44774-12A50iZSG10..RHD..THP..(GEN,TH)202007-202512

main44774-12A60iZSG10..LHD..THP202007-202411

44774BHOSE, UNION TO CONNECTOR TUBE

main44774-12A70iZSG10..LHD..THP202007-202411

44774EHOSE, UNION TO CONNECTOR TUBE

main44774-12A80iZSG10..LHD..THP202007-202411

44783CLAMP, VACUUM HOSE

main44783-10010iZSG10..MA202007-202512

main44783-12060iZSG10..LHD..SAP202007-202411

44785GASKET, BRAKE BOOSTER

main44785-12040iMXGA10202007-202512

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-0D090iZSG10..TWP202010-202410

main47264-12060iZSG10..SAP;ZSG10..MAP..G202007-202512

89420HSENSOR ASSY, VACUUM

main89421-52020iZSG10..MA202007-202512

90178T0007

main90178-T0007

90178T0018

main90178-T0018

90178T0019

main90178-T0019

9017906274

main90179-06274

90466T0019

main90466-T0019

9412041000

main94120-41000

9415180600

main94151-80600

9415180800

main94151-80800

24 parts on this diagram · 3 diagrams in section
