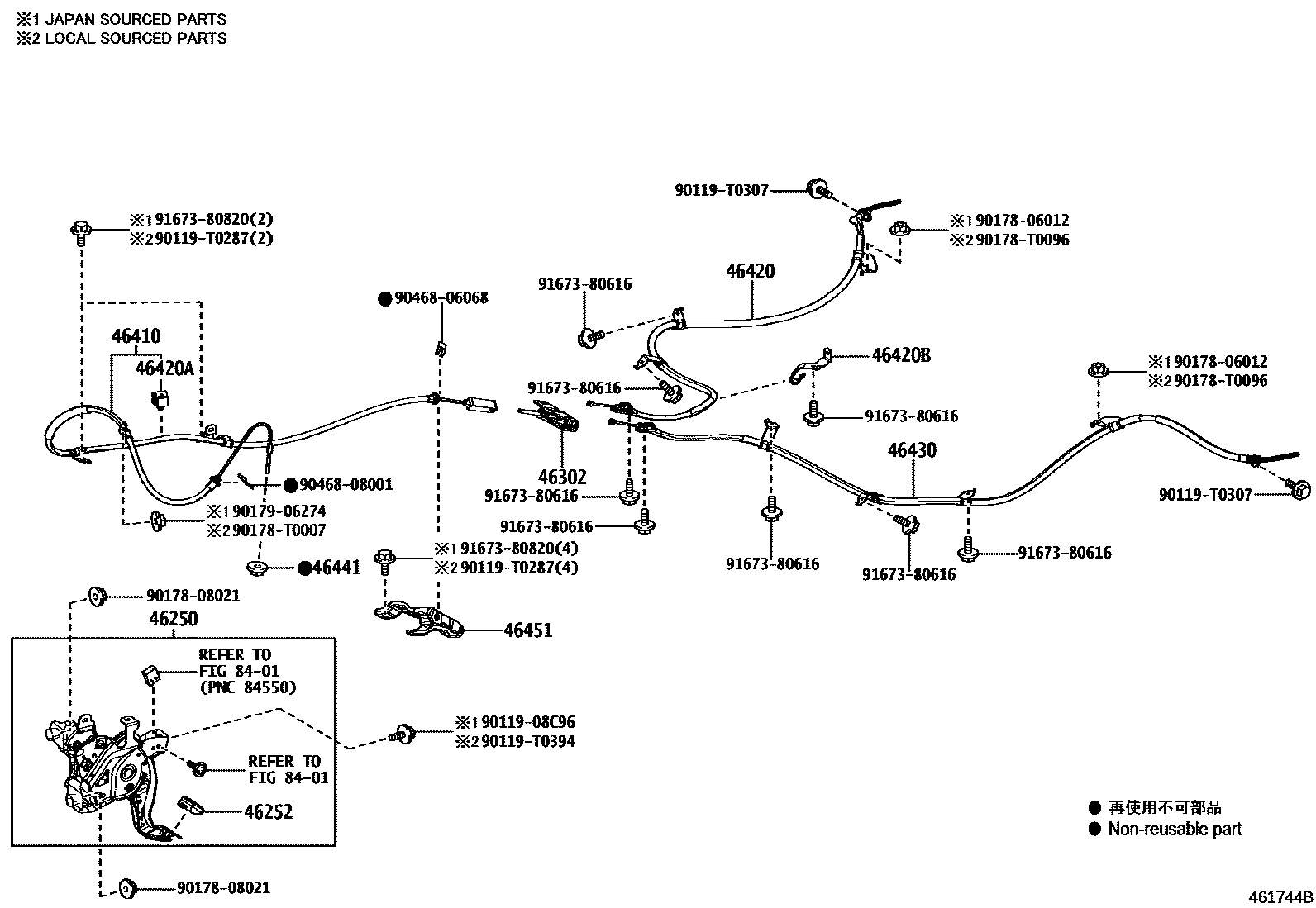

PARKING BRAKE & CABLE

0001 1CABLE 0002 1CABLE 0003 1BRAKE SHOE 0004 1ELECTRIC

46250PEDAL ASSY, PARKING BRAKE W/O CABLE

main46250-0A010iMXGA10,ZVG10..BZP202007-202411

main46250-0A020iZSG10,ZVG10..TWP202010-202011

sub46250-0A021

main46250-0A021iZSG10,ZVG10..TWP202012-202410

46252PAD, PARKING PEDAL

main46252-0A010iZSG10..IDN202007-202411

46302ROD SUB-ASSY, PARKING BRAKE PULL, NO.1

main46302-0A010iMXGA10,ZVG10..BZP202103-202403

main46302-0A020iZSG10,ZVG10..MA202007-202411

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-0A010iZSG10..LHD..SAP202007-202411

main46410-0A020iZVG10..RHD..(GEN,IDN,TH);ZSG10..RHD..THP..(GEN,TH)202007-202411

main46410-0A030iZSG10,ZVG10..TWP202010-202410

main46410-0A040iMXGA10,ZVG10..BZP202103-202403

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-0A020iZSG10..MAP..G;ZSG10,ZVG10..SAP202007-202411

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main46402-12030iZSG10..IDN¥440202007-202411

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main46421-0A010iZSG10,ZVG10..TWP202007-202411

main46421-0A020iZSG10,ZVG10..E..MA202112-202411

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-0A020iZSG10,ZVG10..MA202007-202411

46441NUT, WIRE ADJUSTING, NO.1

main90177-06003iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)¥80202007-202411

46451BRACKET, CABLE SUPPORT

main46451-0A110iMXGA10,ZVG10..BZP202103-202403

main46451-0A120iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202410

main46451-0A150iZSG10,ZVG10..SAP202110-202411

main46451-0A190iZSG10,ZVG10..E..MA202112-202411

8401

9011908C96

main90119-08C96¥80

90119T0287

main90119-T0287

90119T0307

main90119-T0307

90119T0394

main90119-T0394

9017806012

main90178-06012¥80

9017808021

main90178-08021¥100

90178T0007

main90178-T0007¥80

90178T0096

main90178-T0096

9017906274

main90179-06274¥70

9046806068

main90468-06068¥110

9046808001

main90468-08001¥210

9167380616

main91673-80616¥60

9167380820

main91673-80820¥80

24 parts on this diagram · 4 diagrams in section
