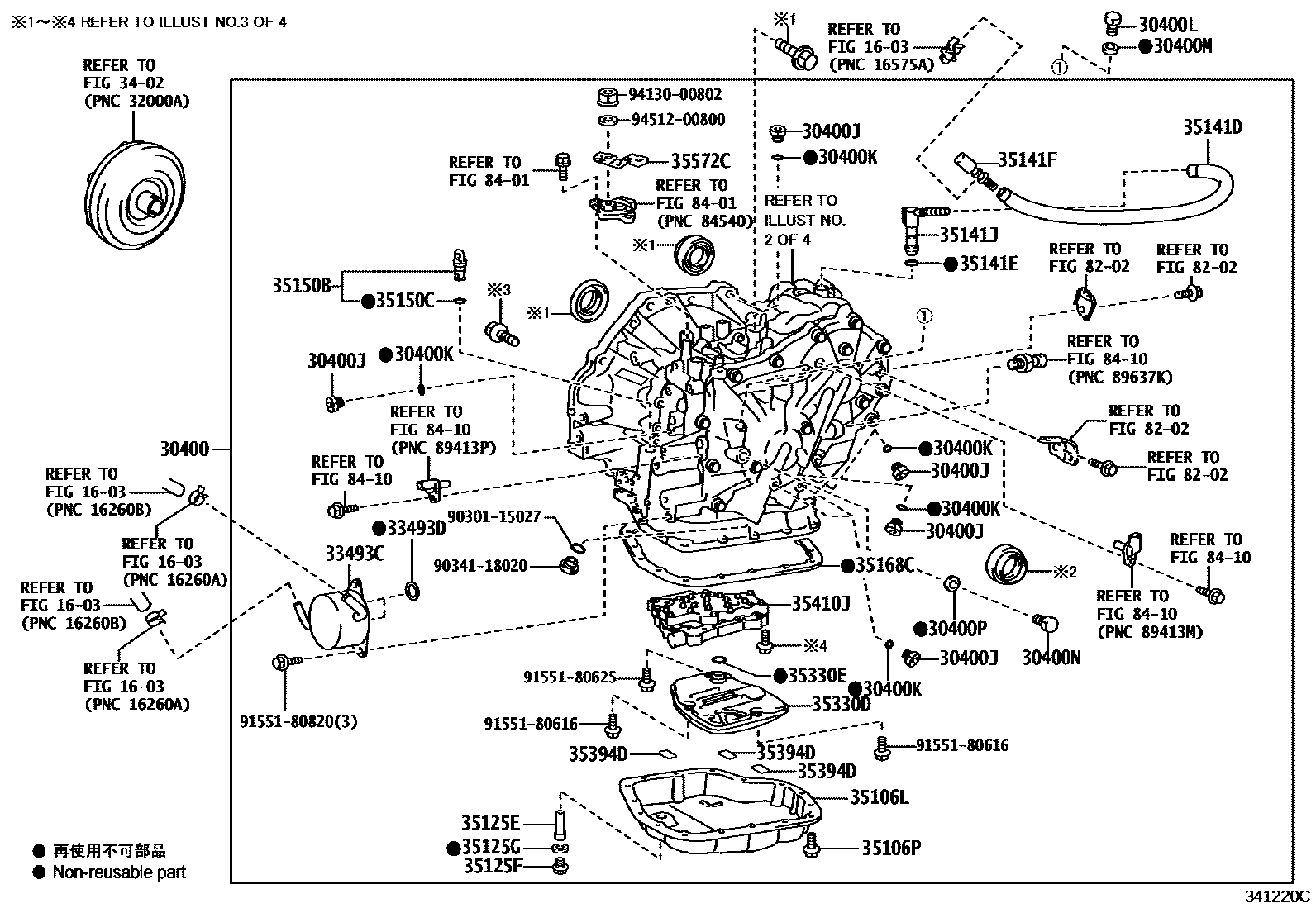

TRANSAXLE ASSY(CVT)

0001 1K313 0002 1K313 0003 1K313 0004 1K313 0005 1K120 0006 1K120 0007 1K120 0008 1K120 0009 1K120 0010 1K121 0011 1K121 0012 1K121 0013 1K121 0014 1K121

1603

30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE

main30400-10070iZSG10..E,M;ZSG10..J..GCC;ZSG10..LHD..SAP..N;ZSG10..(G,N)..(SA,TAIW,VN);ZSG10..RHD..THP..(G,N)..GEN;ZSG10..LHD..(SAP,TWP)..G..(GCC,GEN)202401

K313

main30400-16010iMXGA10202103-202112

K120

main30400-16090iMXGA10202501

K121

30400JPLUG, TRANSAXLE HOLE

main90341-08001×4iMXGA10202103-202106

30400KGASKET, TRANSAXLE HOLE PLUG

main90301-06196×3iMXGA10202404-202412

30400LPLUG , FILLER(CVT)

main35150-44010iMXGA10202501

main90341-12025iZSG10..MA202007-202111

30400MGASKET, FILLER PLUG(CVT)

main90301-09173iMXGA10202501

main90430-12221iZSG10..MA202007-202111

30400NPLUG, REFILL(CVT)

main90341-18077iZSG10..IDN202007-202212

30400PGASKET, REFILL PLUG(CVT)

main90430-18008iMXGA10202501

33493CCOOLER, TRANSMISSION OIL

main33493-12090iMXGA10202201-202403

main33493-52040iZSG10..THP..(GEN,PH,TH,VN)202007-202402

33493DRING, O (FOR TRANSMISSION OIL COOLER)

main90301-20012×2iZSG10..MA202007-202111

3402

35106LPAN SUB-ASSY, TRANSAXLE OIL(CVT)

main35106-12200iZSG10..MA202007-202111

35106PBOLT(FOR TRANSAXLE OIL PAN)

main90119-06173×16iZSG10..IDN202007-202212

35125ETUBE, OVERFLOW(CVT)

main35125-12440iZSG10..E,M;ZSG10..J..GCC;ZSG10..LHD..SAP..N;ZSG10..(G,N)..(SA,TAIW,VN);ZSG10..RHD..THP..(G,N)..GEN;ZSG10..LHD..(SAP,TWP)..G..(GCC,GEN)202401

main35125-12500iMXGA10202103-202112

35125FPLUG, OVERFLOW(CVT)

main90341-12034iZSG10..E,M;ZSG10..J..GCC;ZSG10..LHD..SAP..N;ZSG10..(G,N)..(SA,TAIW,VN);ZSG10..RHD..THP..(G,N)..GEN;ZSG10..LHD..(SAP,TWP)..G..(GCC,GEN)202401

main90341-18016iMXGA10202103-202112

35125GGASKET, OVERFLOW PLUG(CVT)

main90430-12008iZSG10..SAP;ZSG10..MAP..G202007-202411

main90430-18008iMXGA10202201-202403

35141DHOSE(FOR BREATHER PLUG)

main35121-52020iZSG10..MA202007-202111

35141ERING, O(FOR BREATHER PLUG)

main90301-06021iZSG10..E,M;ZSG10..J..GCC;ZSG10..LHD..SAP..N;ZSG10..(G,N)..(SA,TAIW,VN);ZSG10..RHD..THP..(G,N)..GEN;ZSG10..LHD..(SAP,TWP)..G..(GCC,GEN)202401

main90301-09173iMXGA10202201-202403

35141FPLUG, BREATHER, NO.1(CVT)

main90930-03216iZSG10..MA202007-202111

main90930-03240iMXGA10202103-202112

35141JPLUG, BREATHER, NO.2(CVT)

main90930-03191iZSG10..E,M;ZSG10..J..GCC;ZSG10..LHD..SAP..N;ZSG10..(G,N)..(SA,TAIW,VN);ZSG10..RHD..THP..(G,N)..GEN;ZSG10..LHD..(SAP,TWP)..G..(GCC,GEN)202401

main90930-03243iMXGA10202103-202112

35150BPLUG ASSY, TRANSMISSION CASE

main35150-12020iMXGA10202501

main35150-48010iZSG10..MA202007-202111

35150CRING, O (FOR TRANSMISSION CASE PLUG)

main90301-09173iZSG10..THP..(GEN,PH,TH,VN)202007-202402

main90301-11008iMXGA10202501

35168CGASKET, TRANSAXLE OIL PAN(CVT)

main35168-12091iZSG10..MA202007-202111

35330DSTRAINER ASSY, OIL

main35330-12050iZSG10..IDN202007-202212

35330ERING, O (FOR OIL STRAINER)

main90301-22019iZSG10..MA202007-202111

35394DMAGNET, OIL CLEANER(CVT)

main35394-30011×3iZSG10202007-202101

main35394-48010×3iMXGA10202102-202112

35410JBODY ASSY, TRANSMISSION VALVE

main35410-12871iZSG10..TH202401-202512

main35410-12881iMXGA10202103-202112

main35410-42080iMXGA10202501

35572CLEVER, TRANSMISSION CONTROL SHAFT

main35572-12160iZSG10..TH202401-202512

main35572-12190iMXGA10202404-202412

8202

8401

8410

9030115027

main90301-15027

9034118020

main90341-18020

9155180616

main91551-80616

9155180625

main91551-80625

9155180820

main91551-80820

9413000802

main94130-00802

9451200800

main94512-00800

38 parts on this diagram · 14 diagrams in section
