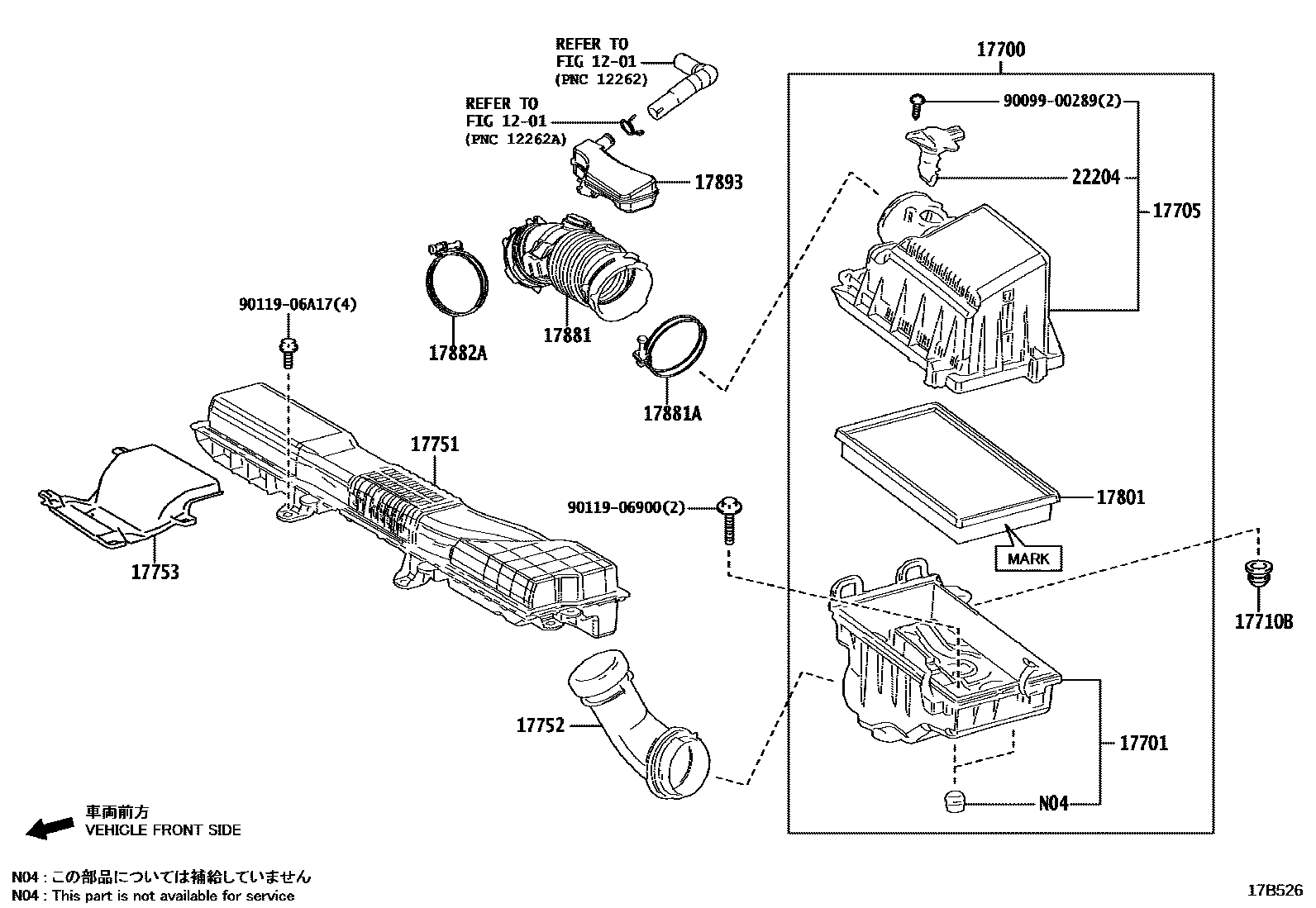

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

1201

17700CLEANER ASSY, AIR

main17700-0T270i2ZRFE..ZSG10..MAP..E202007-202512

main17700-0T280i2ZRFXE..ZVG10..MA202007-202410

main17700-0T300i2ZRFE..ZSG10..TWP202010-202410

main17700-0T310i2ZRFXE..ZVG10..TWP202010-202410

main17700-0T400i2ZRFXE..ZVG10..SA202110-202411

main17700-0T410i2ZRFE..ZSG10..SAP202110-202411

main17700-37330i2ZRFXE..ZVG10..BZP¥15,700202103-202412

main17700-F2090iM20AFKS..MXGA10202103-202412

17701CASE SUB-ASSY, AIR CLEANER

main17701-0T220i2ZRFXE..ZVG10..THP..(GEN,IDN,PH,TH,VN)202007-202411

main17701-0T230i2ZRFE..ZSG10..IDN202007-202512

main17701-0T250i2ZRFE..ZSG10..TWP202010-202410

main17701-0T260i2ZRFXE..ZVG10..TWP202010-202410

main17701-0T310i2ZRFE..ZSG10..SAP202110-202411

main17701-37230i2ZRFXE..ZVG10..BZP202103-202412

main17701-F2060iM20AFKS..MXGA10202103-202412

17705CAP SUB-ASSY, AIR CLEANER

main17705-0T300i2ZRFE..ZSG10..TWP202010-202410

main17705-0T310i2ZRFXE..ZVG10..TWP202010-202410

main17705-0T400i2ZRFE..ZSG10..SAP202110-202411

main17705-37100i2ZRFXE..ZVG10..BZP202103-202412

main17705-F2080iM20AFKS..MXGA10202103-202412

17710BGROMMET

main90480-18006iM20AFKS..MXGA10¥130202007-202512

17751INLET, AIR CLEANER, NO.1

main17751-0T250i2ZRFXE..ZVG10..BZP202007-202412

main17751-0T260i2ZRFE..ZSG10..MAP..E202007-202512

main17751-24010iM20AFKS..MXGA10¥7,900202103-202403

main17751-24050iM20AFKS..MXGA10¥6,700202404-202412

main17751-37150i2ZRFE..ZSG10..TWP¥8,000202010-202410

17752INLET, AIR CLEANER, NO.2

main17752-0T100i2ZRFXE..ZVG10..BZP202007-202412

main17752-0T110i2ZRFE..ZSG10..SAP;2ZRFE..ZSG10..MAP..G202007-202512

main17752-24050iM20AFKS..MXGA10¥2,000202103-202412

main17752-47020i2ZRFE..ZSG10..TWP¥1,890202010-202410

17753INLET, AIR CLEANER, NO.3

main17753-0T100i2ZRFE..ZSG10..TWP..G;2ZRFE..ZSG10..(MAP,TWP)..(E,J,M,N)202007-202512

main17753-0T110i2ZRFXE..ZVG10..TWP..N;2ZRFXE..ZVG10..(MAP,SAP,THP,TWP)..(E,G,L,M,R)202007-202412

main17753-24030iM20AFKS..MXGA10¥1,960202404-202412

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-0T090i2ZRFXE..ZVG10..MAP202007-202410

main17801-0T090i2ZRFXE..ZVG10..TWP202010-202411

(L)

main17801-21060i2ZRFXE..ZVG10..BZP¥2,600202010-202411

(J)

main17801-21060i2ZRFXE..ZVG10..BZP¥2,600202404-202412

main17801-77050iM20AFKS..MXGA10¥2,700202103-202412

MARK 17801-77050

main17801-77050i2ZRFE..ZSG10..TWP¥2,700202010-202410

(J)

main17801-F0020iM20AFKS..MXGA10202103-202412

MARK 17801-F0020

main17801-F0030iM20AFKS..MXGA10202103-202412

MARK 17801-F0030

main17801-F0030i2ZRFBE,2ZRFE..ZSG10..THP..(GEN,PH,TH,VN)202007-202512

main17801-F0030i2ZRFE..ZSG10..TWP202010-202410

(L)

17881HOSE, AIR CLEANER, NO.1

main17881-0T490i2ZRFXE..ZVG10..SA202007-202411

main17881-0T510i2ZRFE..ZSG10..MAP..E202007-202512

main17881-0T540i2ZRFXE..ZVG10..TWP202010-202410

main17881-0T630i2ZRFE..ZSG10..TWP202010-202410

main17881-24050iM20AFKS..MXGA10¥2,070202103-202412

main17881-37330i2ZRFXE..ZVG10..BZP¥1,300202103-202412

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-T0004i2ZRFXE..ZVG10..MAP202007-202411

main96111-10650i2ZRFXE..ZVG10..BZP¥240202010-202412

main96111-10780i2ZRFBE,2ZRFE..ZSG10..THP..(GEN,PH,TH,VN)¥410202007-202512

main96111-10850iM20AFKS..MXGA10¥240202103-202412

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90466-T0015i2ZRFBE,2ZRFE..ZSG10..THP..(GEN,PH,TH,VN)202007-202512

main96111-10800iM20AFKS..MXGA10¥160202103-202412

17893RESONATOR, INTAKE AIR

main17893-0T120i2ZRFXE..ZVG10..THP..(GEN,IDN,PH,TH,VN)202007-202411

main17893-0T130i2ZRFXE..ZVG10..TWP202010-202410

main17893-24020iM20AFKS..MXGA10¥860202103-202412

main17893-37130i2ZRFXE..ZVG10..BZP¥610202103-202412

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-75030i2ZRFXE..ZVG10..BZP¥12,400202007-202412

main22204-75040i2ZRFE..ZSG10..E,M;2ZRFE..ZSG10..J..GCC;2ZRFE..ZSG10..LHD..SAP..N;2ZRFE..ZSG10..RHD..THP..(G,N);2ZRFE..ZSG10..(G,N)..(SA,TAIW,VN);2ZRFE..ZSG10..LHD..(SAP,TWP)..G..(G¥9,400202007-202512

9009900289

main90099-00289¥60

9011906900

main90119-06900¥80

9011906A17

main90119-06A17¥60

17 parts on this diagram · 7 diagrams in section
