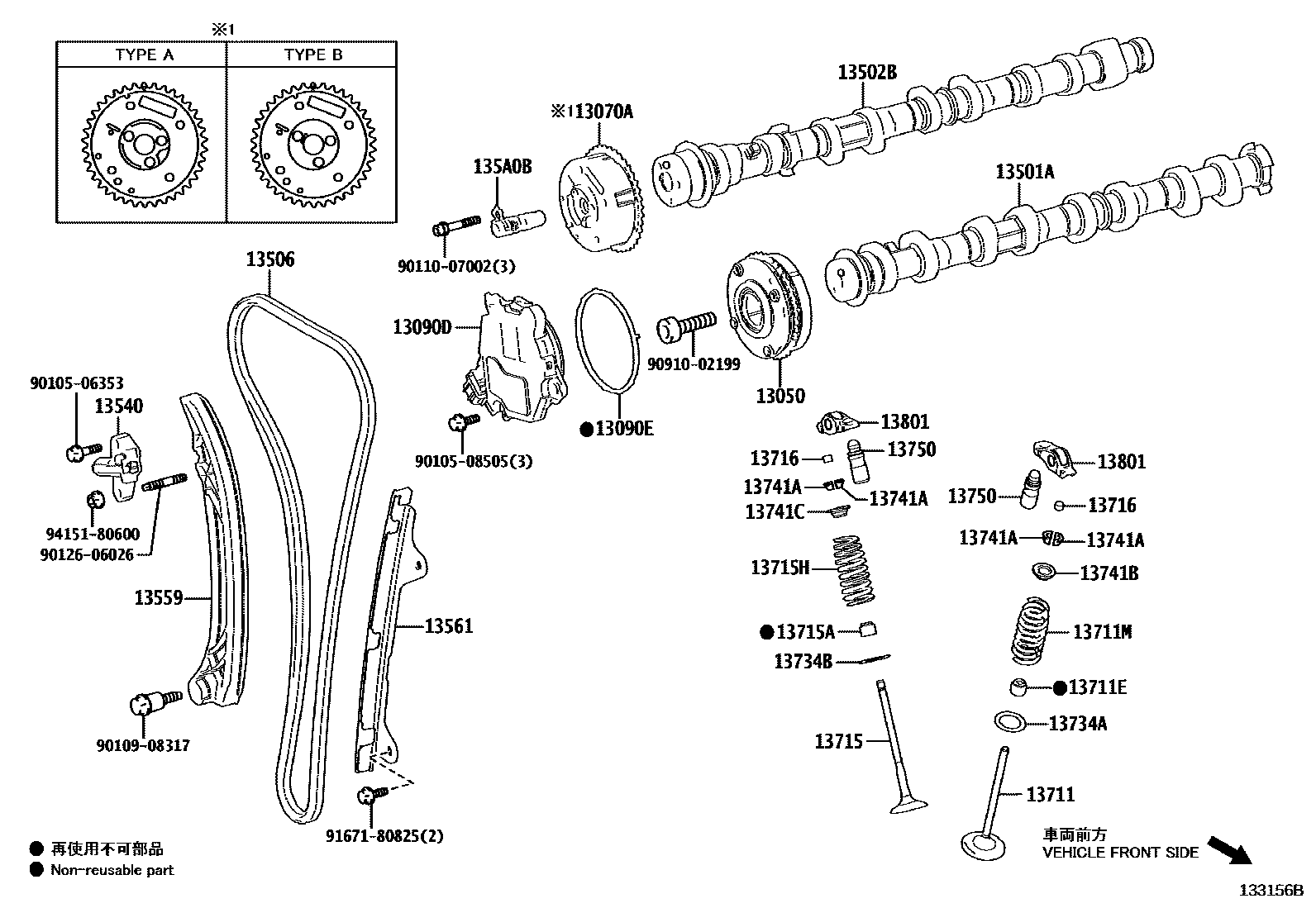

CAMSHAFT & VALVE
13050GEAR ASSY, CAMSHAFT TIMING
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
13070AGEAR ASSY, CAMSHAFT TIMING EXHAUST
(L)
(L)
(J)
(J),TYPE A:REF ILL.
(J),TYPE B:REF ILL.
(J)
(J)
(L),TYPE A:REF ILL.
(L)
(L)
(L),TYPE B:REF ILL.
13090DMOTOR ASSY, CAM TIMING CONTROL W/EDU
13090ERING, O(FOR CAM TIMING CONTROL MOTOR)
13501ACAMSHAFT SUB-ASSY, INTAKE
13502BCAMSHAFT SUB-ASSY, EXHAUST
13506CHAIN SUB-ASSY
(L)
main13506-0T130i2ZRFXE..ZVG10..E..PH;2ZRFBE,2ZRFE..ZSG10..MAP,THP,TWP;2ZRFXE..ZVG10..(MAP,THP,TWP)..(GCC,GEN,IDN,MA,TAIW,TH,VN)202007-202411
(L)
main13506-37070i2ZRFE..ZSG10..E,M;2ZRFE..ZSG10..J..GCC;2ZRFXE..ZVG10..TWP..N;2ZRFE..ZSG10..LHD..SAP..N;2ZRFE..ZSG10..(G,N)..(SA,TAIW,VN);2ZRFBE,2ZRFE..ZSG10..RHD..THP..(G,N);2ZRFE.202007-202411
(J)
13540TENSIONER ASSY, CHAIN, NO.1
(L)
main13540-0T040i2ZRFXE..ZVG10..E..PH;2ZRFBE,2ZRFE..ZSG10..MAP,THP,TWP;2ZRFXE..ZVG10..(MAP,THP,TWP)..(GCC,GEN,IDN,MA,TAIW,TH,VN)202007-202411
(L)
main13540-37030i2ZRFE..ZSG10..E,M;2ZRFE..ZSG10..J..GCC;2ZRFXE..ZVG10..TWP..N;2ZRFE..ZSG10..LHD..SAP..N;2ZRFE..ZSG10..(G,N)..(SA,TAIW,VN);2ZRFBE,2ZRFE..ZSG10..RHD..THP..(G,N);2ZRFE.202007-202411
(J)
13559SLIPPER, CHAIN TENSIONER
main13559-0T050i2ZRFXE..ZVG10..E..PH;2ZRFBE,2ZRFE..ZSG10..MAP,THP,TWP;2ZRFXE..ZVG10..(MAP,THP,TWP)..(GCC,GEN,IDN,MA,TAIW,TH,VN)202007-202411
(L)
(L)
main13559-37050i2ZRFBE,2ZRFE..ZSG10;2ZRFXE..ZVG10..E..PH;2ZRFXE..ZVG10..(MAP,SAP,THP,TWP)..(GCC,GEN,IDN,MA,SA,TAIW,TH,VN)202007-202411
(J)
13561DAMPER, CHAIN VIBRATION, NO.1
main13561-0T060i2ZRFE..ZSG10..TWP..G;2ZRFXE..ZVG10..TWP..N;2ZRFBE,2ZRFE..ZSG10..RHD..THP;2ZRFE..ZSG10..(E,M,N)..(MA,TAIW,VN);2ZRFXE..ZVG10..(MAP,THP,TWP)..(E,G,L,M,R);2ZRFE..ZSG10.202007-202411
(L)
(L)
main13561-37050i2ZRFE..ZSG10..E,M;2ZRFE..ZSG10..J..GCC;2ZRFXE..ZVG10..TWP..N;2ZRFE..ZSG10..LHD..SAP..N;2ZRFE..ZSG10..(G,N)..(SA,TAIW,VN);2ZRFBE,2ZRFE..ZSG10..RHD..THP..(G,N);2ZRFE.202007-202411
(J)
135A0BVALVE ASSY, CAMSHAFT TIMING
(J)
(J),PNC13070A=TYPE A
(J)
(J),PNC13070A=TYPE B
(L)
(L),PNC13070A=TYPE A
(L)
(L),PNC13070A=TYPE B
13711VALVE, INTAKE
(L)
(L)
PARAGUAY SPEC
(J)
PARAGUAY SPEC
13711ESEAL, INTAKE VALVE STEM OIL
(L)
(L)
(J)
13711MSPRING, COMPRESSION(FOR INTAKE VALVE)
13715VALVE, EXHAUST
main13715-0T020i2ZRFE..ZSG10..TWP..G;2ZRFE..ZSG10..RHD..THP;2ZRFE..ZSG10..(E,M,N)..(MA,TAIW,VN);2ZRFE..ZSG10..LHD..(THP,TWP)..(E,J)..(GCC,GEN)202007-202512
(L)
(L)
(J)
PARAGUAY SPEC
(J)
13715ASEAL, EXHAUST VALVE STEM OIL
(L)
main90080-31084i2ZRFXE..ZVG10..THP..(GEN,IDN,PH,TH,VN);2ZRFBE,2ZRFE..ZSG10..THP..(GEN,PH,TH,VN)202007-202512
(L)
(J)
13715HSPRING, COMPRESSION(FOR EXHAUST VALVE)
13716CAP, VALVE STEM
main13716-0C010i2ZRFE..ZSG10..TWP..G;2ZRFXE..ZVG10..MAP,TWP;2ZRFE..ZSG10..(MAP,TWP)..(E,J,M,N)202007-202512
(L)
(L)
(J)
13734SEAT, VALVE SPRING
(L)
(L)
main13734-62020i2ZRFXE..ZVG10..THP..(GEN,IDN,PH,TH,VN);2ZRFBE,2ZRFE..ZSG10..THP..(GEN,PH,TH,VN)202007-202512
(J)
13734ASEAT, INTAKE VALVE SPRING
13734BSEAT, EXHAUST VALVE SPRING
13741RETAINER, VALVE SPRING
(L)
main13741-36010i2ZRFXE..ZVG10..THP..(GEN,IDN,PH,TH,VN);2ZRFBE,2ZRFE..ZSG10..THP..(GEN,PH,TH,VN)202007-202512
(J)
13741ALOCK, VALVE SPRING RETAINER
(J)
(L)
13741BRETAINER, INTAKE VALVE SPRING
13741CRETAINER, EXHAUST VALVE SPRING
13750ADJUSTER ASSY, VALVE LASH
main13750-0C030i2ZRFE..ZSG10..TWP..G;2ZRFXE..ZVG10..MAP,TWP;2ZRFE..ZSG10..(MAP,TWP)..(E,J,M,N)202007-202512
(L)
(L)
(J)
(J)
(L)
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
(L)
(L)
(J)
main13801-36020i2ZRFE..ZSG10..TWP..G;2ZRFXE..ZVG10..MAP,TWP;2ZRFE..ZSG10..(MAP,TWP)..(E,J,M,N)202007-202512
(J)
(L)
9010506353
main90105-06353
9010508505
main90105-08505
9010908317
main90109-08317
9011007002
main90110-07002
9012606026
main90126-06026
9091002199
main90910-02199
9167180825
main91671-80825
9415180600
main94151-80600
35 parts on this diagram · 4 diagrams in section
