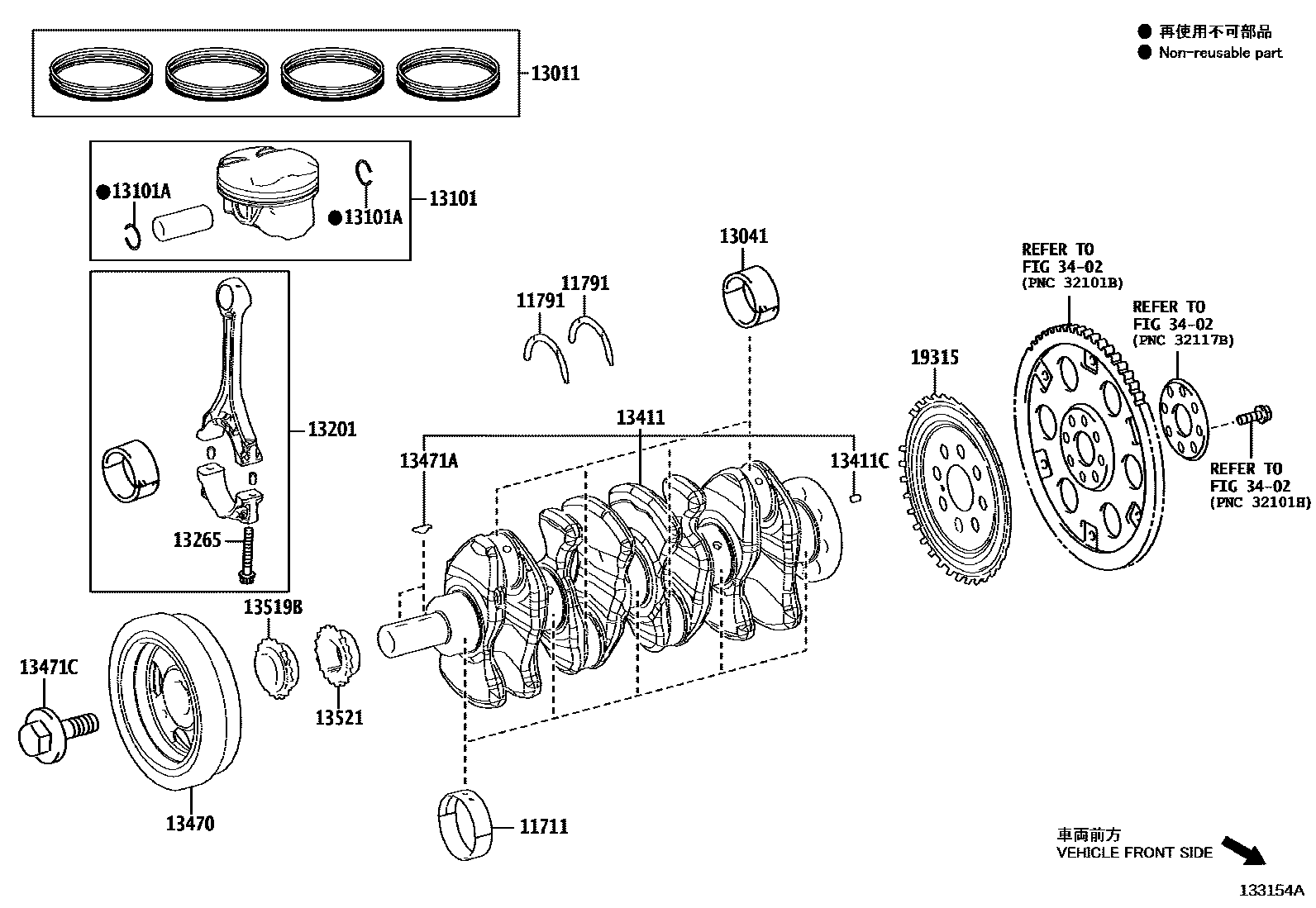

CRANKSHAFT & PISTON
11711BEARING, CRANKSHAFT
MARK1,(L),REFER R/M
MARK2,(L),REFER R/M
MARK3,(L),REFER R/M
MARK4,(L),REFER R/M
MARK1,(L),REFER R/M
MARK2,(L),REFER R/M
MARK3,(L),REFER R/M
MARK4,(L),REFER R/M
MARK1,(L),REFER R/M
MARK1,(L),REFER TO ILLUST
MARK2,(L),REFER TO ILLUST
MARK2,(L),REFER R/M
MARK3,(L),REFER R/M
MARK3,(L),REFER TO ILLUST
MARK4,(L),REFER R/M
MARK4,(L),REFER TO ILLUST
MARK 1,(J),REFER R/M
MARK 2,(J),REFER R/M
MARK 3,(J),REFER R/M
MARK 4,(J),REFER R/M
MARK 5,(J),REFER R/M
MARK 6,(J),REFER R/M
MARK1,(J),REFER R/M
MARK2,(J),REFER R/M
MARK3,(J),REFER R/M
MARK4,(J),REFER R/M
MARK1,REFER REPAIR MANUAL
MARK1,(J),REFER R/M
MARK2,REFER REPAIR MANUAL
MARK2,(J),REFER R/M
MARK3,REFER REPAIR MANUAL
MARK3,(J),REFER R/M
MARK4,REFER REPAIR MANUAL
MARK4,(J),REFER R/M
MARK 1,(L),REFER R/M
MARK 2,(L),REFER R/M
MARK 3,(L),REFER R/M
MARK 4,(L),REFER R/M
MARK 5,(L),REFER R/M
MARK 6,(L),REFER R/M
MARK 1,(L),REFER R/M
MARK 2,(L),REFER R/M
MARK 3,(L),REFER R/M
MARK 4,(L),REFER R/M
MARK 5,(L),REFER R/M
MARK 6,(L),REFER R/M
11791WASHER, CRANKSHAFT THRUST, UPPER
STD,(L)
STD
STD,(J)
STD
STD
13011RING SET, PISTON
STD,(L)
STD,MADE IN INDONESIA
STD,(L)
STD,MADE IN EUROPE
STD,MADE IN INDONESIA
STD
STD,PARAGUAY SPEC
STD
STD,MADE IN JAPAN
STD,(J)
STD,(J)
STD,MADE IN JAPAN
STD
13041BEARING, CONNECTING ROD
MARK1,(L),REFER R/M
MARK2,(L),REFER R/M
MARK3,(L),REFER R/M
MARK1,(L),REFER R/M
MARK2,(L),REFER R/M
main13041-0T050-03i2ZRFE..ZSG10..TWP..G;2ZRFE..ZSG10..RHD..THP;2ZRFE..ZSG10..(E,M,N)..(MA,TAIW,VN);2ZRFE..ZSG10..LHD..(THP,TWP)..(E,J)..(GCC,GEN)202007-202512
MARK3,(L),REFER R/M
MARK1,(L),REFER R/M
MARK2,(L),REFER R/M
MARK3,(L),REFER R/M
MARK1,(L),REFER R/M
MARK2,(L),REFER R/M
MARK3,(L),REFER R/M
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK1,(J),REFER R/M
MARK2,(J),REFER R/M
MARK3,(J),REFER R/M
MARK1
MARK1,(J),REFER R/M
MARK2,(J),REFER R/M
MARK2
MARK3,(J),REFER R/M
MARK3
13101PISTON SUB-ASSY, W/PIN
main13101-0T151i2ZRFE..ZSG10..RHD..THP;2ZRFE..ZSG10..(G,J)..GCC;2ZRFE..ZSG10..LHD..E..GEN202007-202512
STD
STD,(L)
STD
STD,(L)
STD
STD
sub13101-37270
STD
STD,(J)
STD,(J)
STD
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
main13201-09A30i2ZRFE..ZSG10..SAP..E;2ZRFE..ZSG10..(G,N)..SA;2ZRFE,2ZRFXE..ZSG10,ZVG10..LHD..(BZP,SAP)..(E,G,N)¥12,800202404
*762
(L)
(L)
(L)
*763
(L)
main13201-39185i2ZRFE..ZSG10..SAP..E;2ZRFE..ZSG10..(G,N)..SA;2ZRFE,2ZRFXE..ZSG10,ZVG10..LHD..(BZP,SAP)..(E,G,N)¥8,000202404
*764
(J)
(J)
main13201-39295i2ZRFE..ZSG10..SAP..E;2ZRFXE..ZVG10..BZP,SAP;2ZRFE..ZSG10..(G,N)..SA;2ZRFE..ZSG10..LHD..(G,N)..GEN¥7,800202404
*765
MARK A,REFER REPAIR MANUAL
MARK B,REFER REPAIR MANUAL
MARK C,REFER REPAIR MANUAL
13265BOLT, CONNECTING ROD
main13265-22040i2ZRFE..ZSG10..E,M;2ZRFE..ZSG10..J..GCC;2ZRFXE..ZVG10..TWP..N;2ZRFE..ZSG10..LHD..SAP..N;2ZRFE..ZSG10..RHD..THP..(G,N);2ZRFE..ZSG10..(G,N)..(SA,TAIW,VN);2ZRFE..ZSG10.¥300202007-202512
13411CRANKSHAFT
(L)
(L)
(J)
13411CPIN, STRAIGHT(FOR CRANKSHAFT)
13470PULLEY ASSY, CRANKSHAFT
13471PULLEY, CRANKSHAFT
(L)
(J)
main13470-37060i2ZRFXE..ZVG10..TWP..N;2ZRFXE..ZVG10..(MAP,SAP,THP,TWP)..(E,G,L,M,R)¥10,400202007-202412
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
(J)
13519GEAR, OIL PUMP DRIVE
main13519-0T020i2ZRFXE..ZVG10..THP..(GEN,IDN,PH,TH,VN);2ZRFBE,2ZRFE..ZSG10..THP..(GEN,PH,TH,VN)202007-202512
(L)
(L)
main13519-37010i2ZRFE..ZSG10..TWP..G;2ZRFXE..ZVG10..MAP,TWP;2ZRFE..ZSG10..(MAP,TWP)..(E,J,M,N)¥570202007-202512
(J)
13519BSPROCKET, OIL PUMP DRIVE
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
(L)
(L)
main13521-37011i2ZRFXE..ZVG10..THP..(GEN,IDN,PH,TH,VN);2ZRFBE,2ZRFE..ZSG10..THP..(GEN,PH,TH,VN)¥800202007-202512
(J)
19315PLATE, CRANK ANGLE SENSOR, NO.1
main19315-0T040i2ZRFE..ZSG10..TWP..G;2ZRFXE..ZVG10..TWP..N;2ZRFE..ZSG10..RHD..THP;2ZRFE..ZSG10..(E,M,N)..(MA,TAIW,VN);2ZRFXE..ZVG10..(MAP,THP,TWP)..(E,G,L,M,R);2ZRFE..ZSG10..LHD..(202007-202512
(L)
(J)
3402
19 parts on this diagram · 5 diagrams in section
