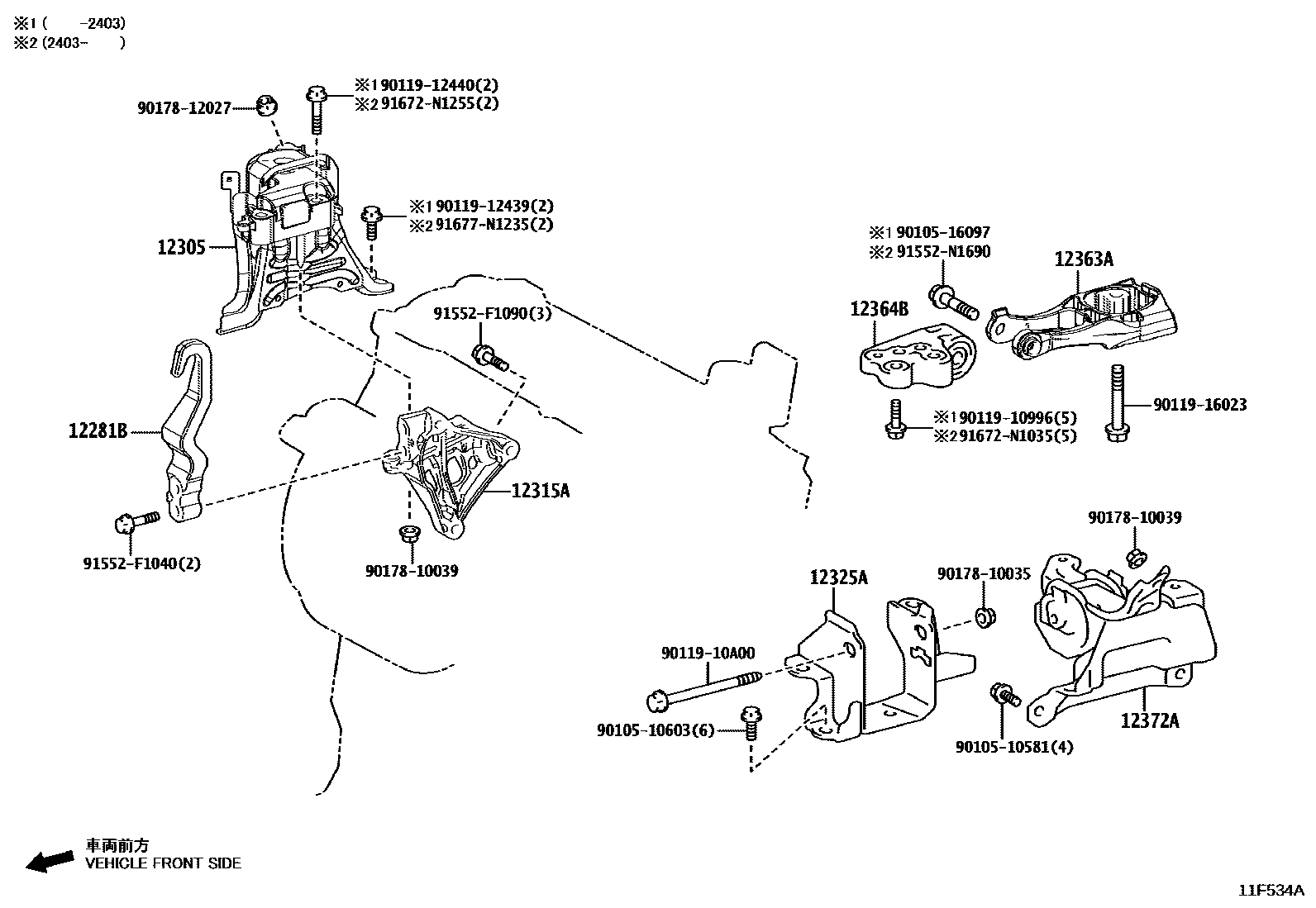

MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

12281BHANGER, ENGINE, NO.1

main12281-25030iM20AFKS..MXGA10202201-202403

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-0T381i2ZRFE..ZSG10..SAP;2ZRFE..ZSG10..MAP..G202007-202411

main12305-0T430i2ZRFE..ZSG10..TWP202010-202410

main12305-0T440i2ZRFXE..ZVG10..MA202007-202111

main12305-24010iM20AFKS..MXGA10202501

main12305-37342i2ZRFXE..ZVG10..BZP202103-202112

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-37060i2ZRFE..ZSG10..E,M;2ZRFE..ZSG10..J..GCC;2ZRFXE..ZVG10..TWP..N;2ZRFE..ZSG10..LHD..SAP..N;2ZRFE..ZSG10..RHD..THP..(G,N);2ZRFE..ZSG10..(G,N)..(SA,TAIW,VN);2ZRFE..ZSG10.202401

main12315-F2020iM20AFKS..MXGA10202501

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-0T530i2ZRFE..ZSG10..IDN202007-202212

main12325-0T540i2ZRFE..ZSG10..TWP202410

main12325-0T570i2ZRFE..ZSG10..SAP202411

main12325-F2100iM20AFKS..MXGA10202201-202403

12363AROD, ENGINE MOVING CONTROL

main12363-0T090i2ZRFXE..ZVG10..SAP,TWP202010-202203

main12363-0T091i2ZRFXE..ZVG10..TWP202204-202410

main12363-0T100i2ZRFXE..ZVG10..MAP202007-202410

main12363-0T110i2ZRFE..ZSG10..J..GCC;2ZRFE..ZSG10..LHD..N..GEN;2ZRFE..ZSG10..(SAP,TWP)..(E,M);2ZRFE..ZSG10..(G,N)..(SA,TAIW);2ZRFE..ZSG10..LHD..G..(GCC,GEN)202410

main12363-0T120i2ZRFE..ZSG10..MAP..E202007-202410

main12363-37031i2ZRFXE..ZVG10..BZP202103-202112

main12363-37032i2ZRFXE..ZVG10..BZP202303-202403

main12363-F2040iM20AFKS..MXGA10202103-202112

12364BROD, ENGINE MOVING CONTROL, NO.2

main12364-0T140i2ZRFE..ZSG10..MAP..G202007-202411

main12364-0T150i2ZRFE..ZSG10..J..GCC;2ZRFXE..ZVG10..SAP,TWP;2ZRFE..ZSG10..LHD..N..GEN;2ZRFE..ZSG10..(SAP,TWP)..(E,M);2ZRFE..ZSG10..(G,N)..(SA,TAIW);2ZRFE..ZSG10..LHD..G..(GCC,GEN)202410

main12364-37050i2ZRFXE..ZVG10..BZP202404-202412

main12364-F2060iM20AFKS..MXGA10202201-202403

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-0T630i2ZRFBE,2ZRFE..ZSG10..THP..(GEN,PH,TH,VN)202007-202401

main12372-37313i2ZRFXE..ZVG10..MAP,TWP202007-202410

main12372-F2120iM20AFKS..MXGA10202103-202112

main12372-F2121iM20AFKS..MXGA10202404-202412

9010510581

main90105-10581

9010510603

main90105-10603

9010516097

main90105-16097

9011910996

main90119-10996

9011910A00

main90119-10A00

9011912439

main90119-12439

9011912440

main90119-12440

9011916023

main90119-16023

9017810035

main90178-10035

9017810039

main90178-10039

9017812027

main90178-12027

91552F1040

main91552-F1040

91552F1090

main91552-F1090

91552N1690

main91552-N1690

91672N1035

main91672-N1035

91672N1255

main91672-N1255

91677N1235

main91677-N1235

24 parts on this diagram · 6 diagrams in section
