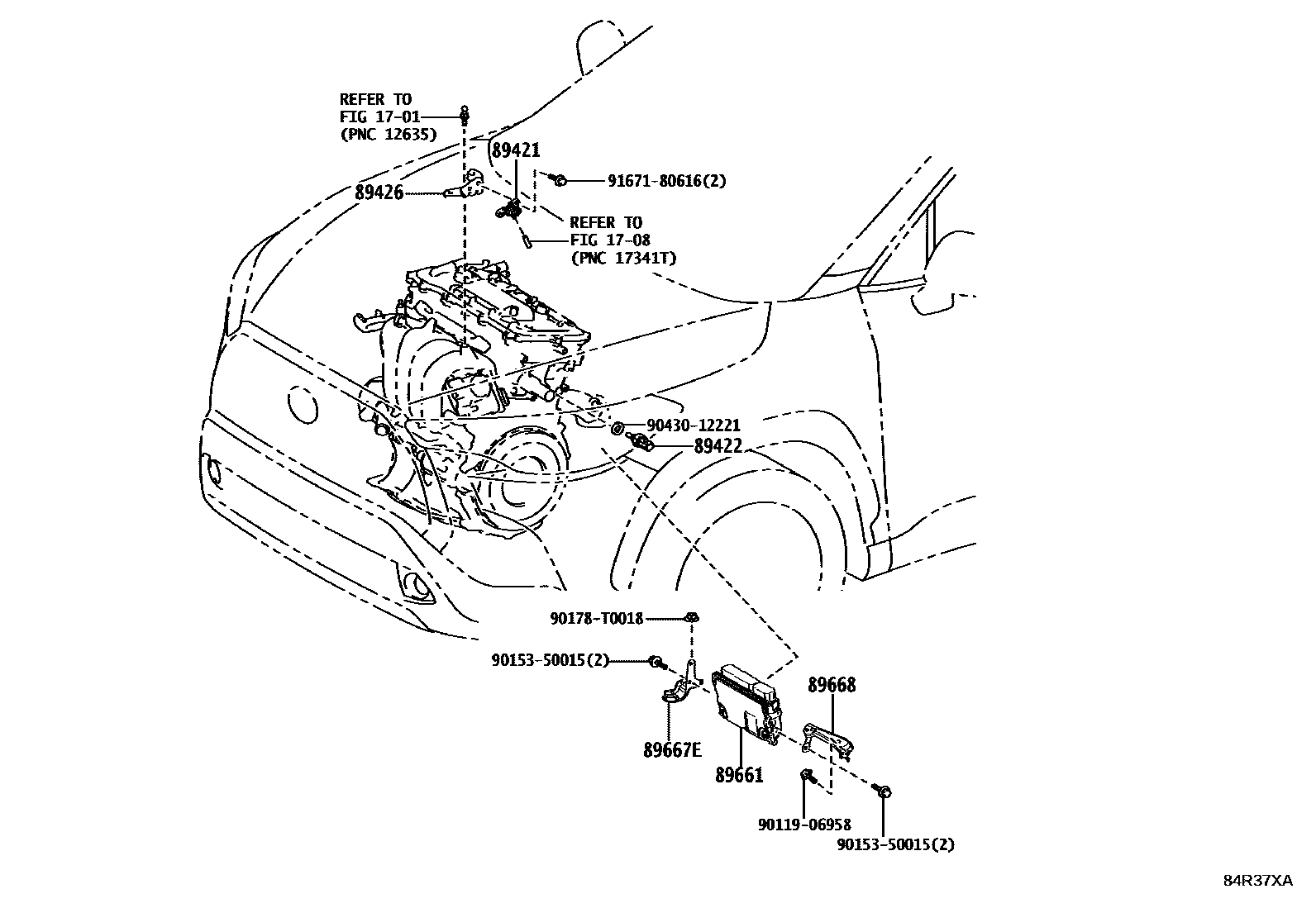

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

1701

1708

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-26030iZSG10,ZVG10202312

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iZSG10,ZVG10202312

89426BRACKET, VACUUM SENSOR

main89426-12270iZSG10202402

89661COMPUTER, ENGINE CONTROL

main89661-0A121iZSG10202402

DENSO TEN

main89661-0A420iZVG10202312

DENSO

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-02580iZVG10202312

main89667-F4040iZSG10202402

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-02550iZSG10202402

main89668-F4050iZVG10202312

9011906958

main90119-06958

9015350015

main90153-50015

90178T0018

main90178-T0018

9043012221

main90430-12221

9167180616

main91671-80616

13 parts on this diagram · 2 diagrams in section
