SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM 0004 1ENGINE ROOM 0005 1ENGINE ROOM RELAY BLOCK 0006 1ENGINE ROOM RELAY BLOCK 0007 1COWL 0008 1INSTRUMENT PANEL 0009 1STEERING 0010 1SEAT 0011 1DOOR & ROOF 0012 1FLOOR & BACK DOOR

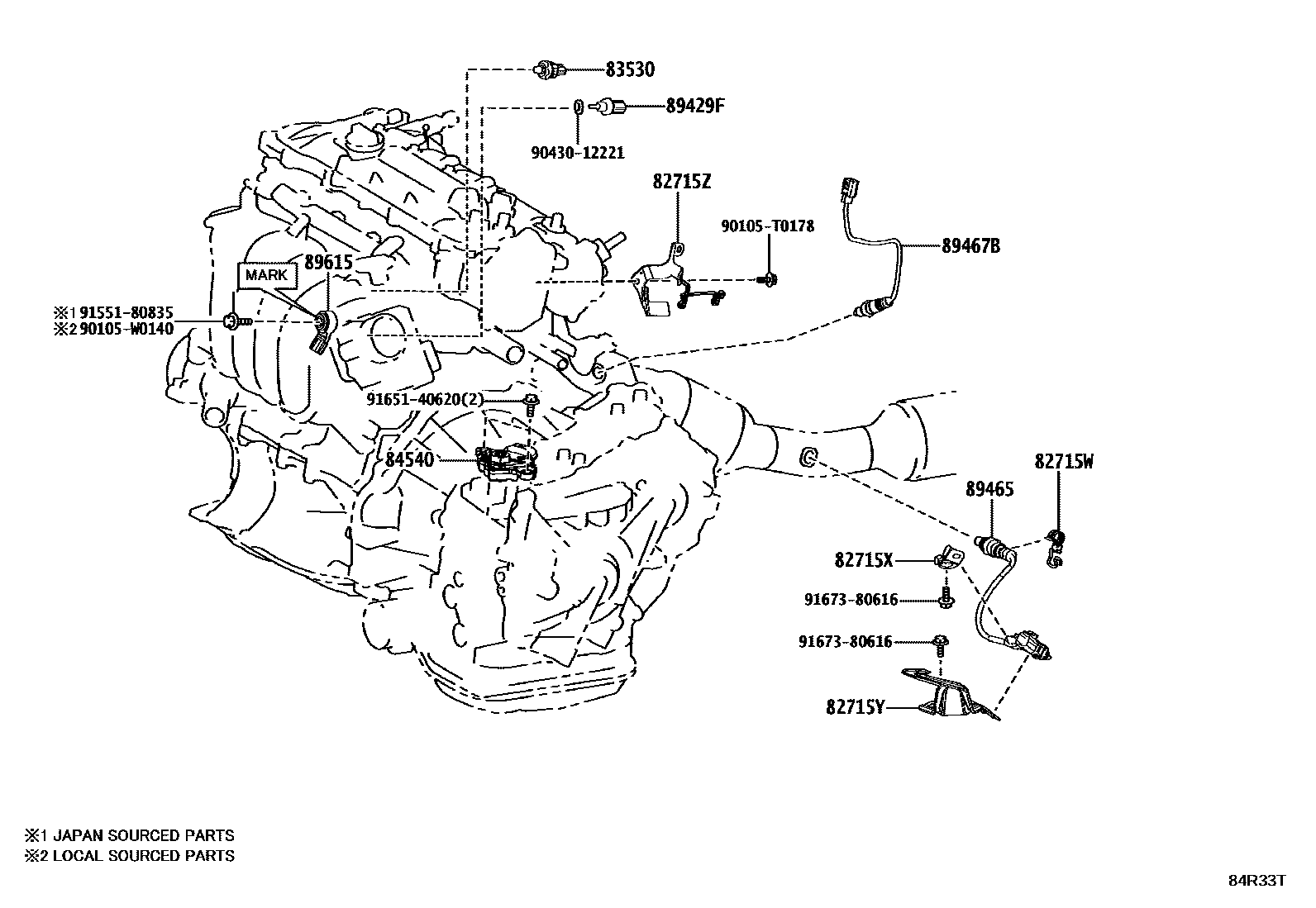

82715WBRACKET, WIRING HARNESS CLAMP

main82715-44510iZSG10,ZVG10202312

82715XBRACKET, WIRING HARNESS CLAMP, NO.2

main82715-F4300iZSG10,ZVG10202312

82715YBRACKET, WIRING HARNESS CLAMP, NO.3

main82715-F4290iZSG10,ZVG10202312

82715ZBRACKET, WIRING HARNESS CLAMP

main82715-10310iZVG10202312

main82715-10410iZSG10202402

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-12060iZSG10,ZVG10202312

84540SWITCH ASSY, NEUTRAL START

main84540-52070iZSG10202402

89429FSENSOR, TEMPERATURE

main89429-12010iZSG10202402

89465SENSOR, OXYGEN

main89465-10080iZSG10,ZVG10202312

89467BSENSOR, AIR FUEL RATIO

main89467-12260iZSG10202402

main89467-47030iZVG10202312

89615SENSOR, KNOCK CONTROL

main89615-02020iZSG10202402

MARK 89615-02020

main89615-20090iZVG10202312

90105T0178

main90105-T0178

90105W0140

main90105-W0140

9043012221

main90430-12221

9155180835

main91551-80835

9165140620

main91651-40620

9167380616

main91673-80616

16 parts on this diagram · 12 diagrams in section
