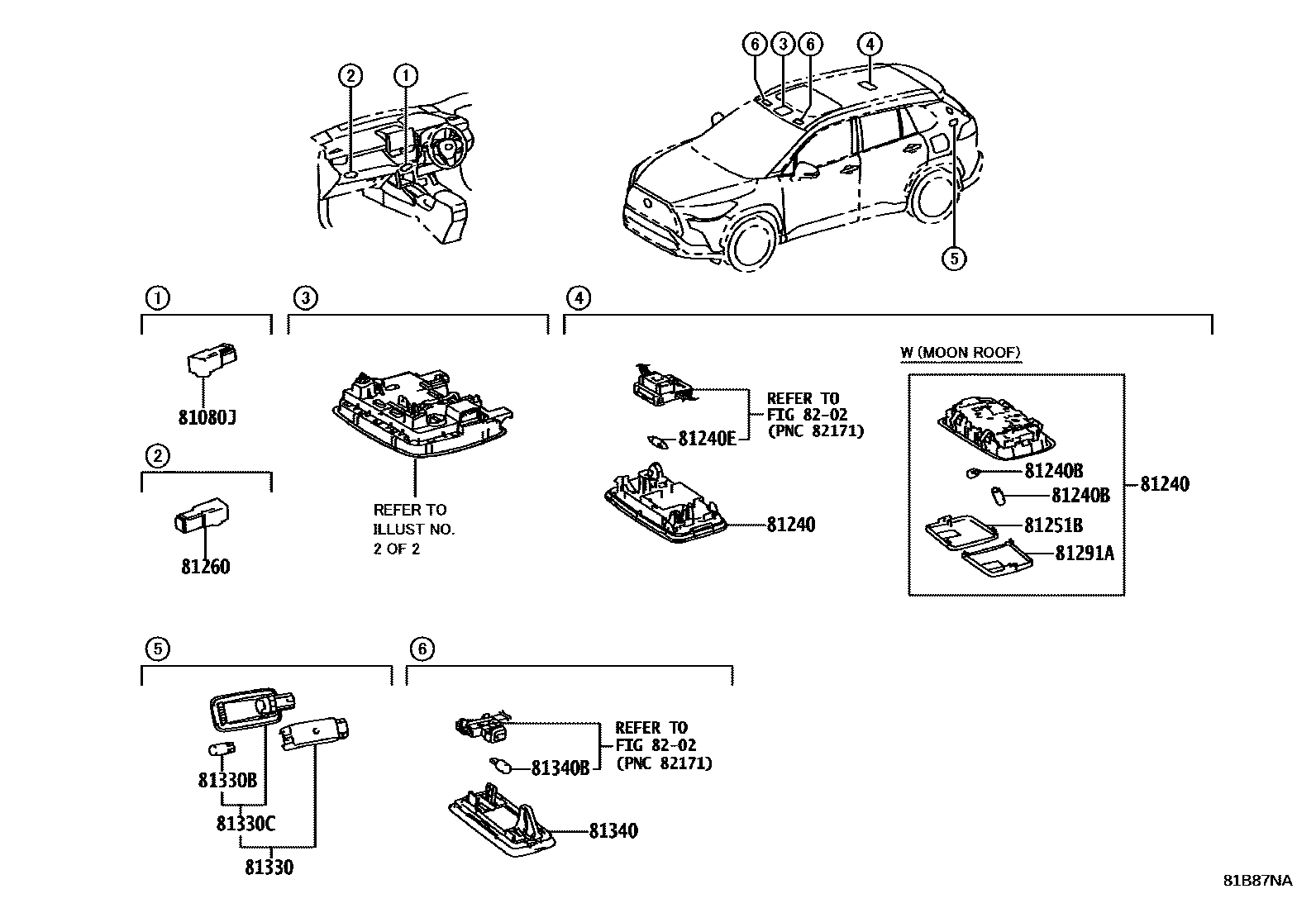

INTERIOR LAMP

0001 1 0002 1

81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-33280iZSG10,ZVG10..E202312

81240LAMP ASSY, ROOM, NO.1

main81240-42020-C0iZSG10,ZVG10..G,N202312

BLACK,TRIM3#

main81250-05030-C1iZSG10,ZVG10..E202312

BLACK,TRIM3#

81240BBULB, ROOM LAMP, NO.1

main90981-11062×2iZSG10,ZVG10..E202312

12V 8W

81240EBULB, ROOM LAMP, NO.2

main90981-14011iZSG10,ZVG10..G,N202312

12V 8W

81251BLENS, REAR ROOM LAMP, RH

main81251-05030iZSG10,ZVG10..E202312

81260LAMP ASSY, GLOVE BOX

main81080-33290iZSG10,ZVG10..E202312

81291ALENS, REAR ROOM LAMP, LH

main81291-05030iZSG10,ZVG10..E202312

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81250-30210iZSG10,ZVG10202312

81330BBULB, LUGGAGE COMPARTMENT LAMP

main99132-12050iZSG10,ZVG10202312

12V 5W

81330CLAMP ASSY, LUGGAGE COMPARTMENT

main81330-30100iZSG10,ZVG10202312

81340LAMP ASSY, VANITY

main81340-0K030×2iZSG10,ZVG10..E,G202312

81340BBULB (FOR VANITY LAMP)

main90981-11062×2iZSG10,ZVG10..E,G202312

12V 8W

8202

13 parts on this diagram · 2 diagrams in section
